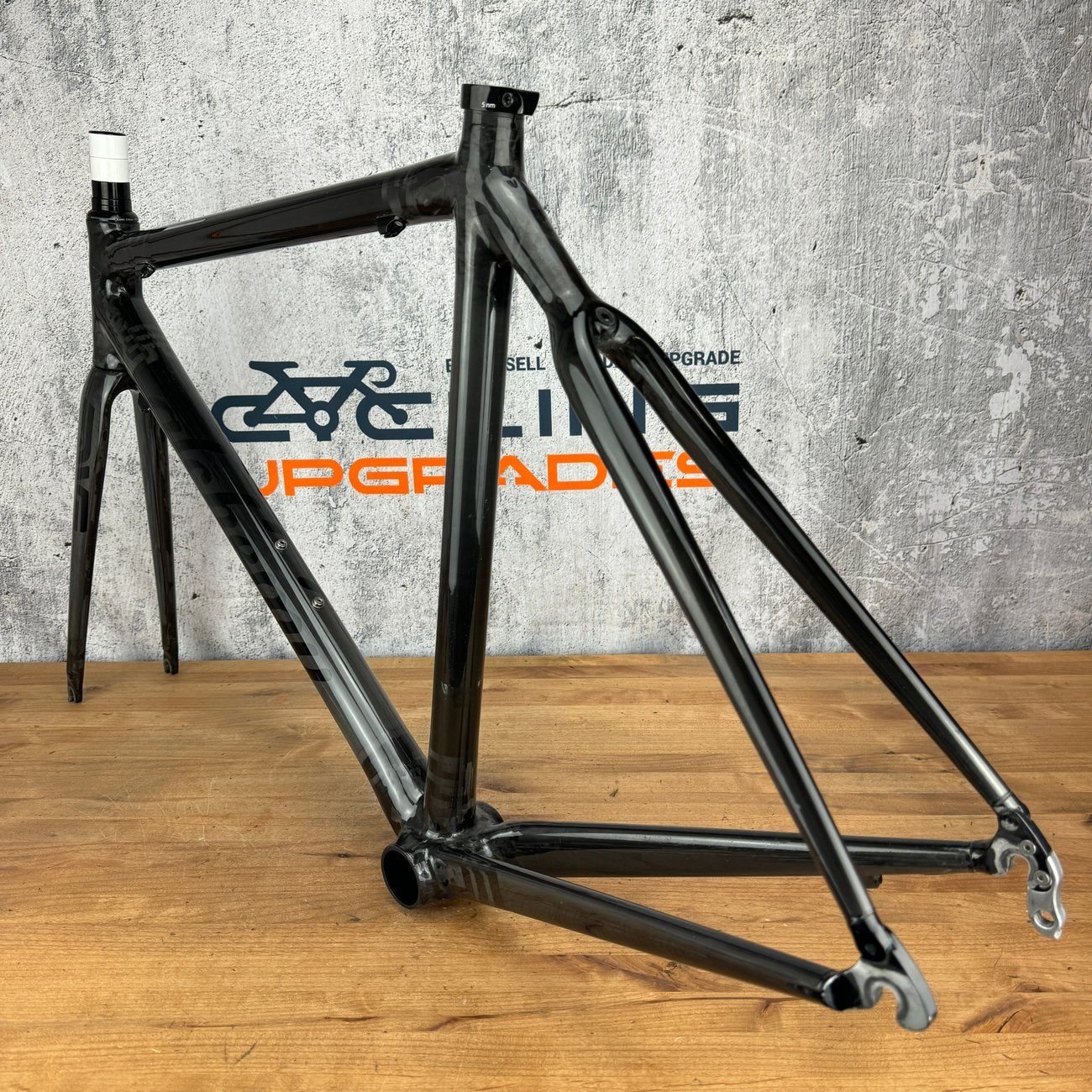

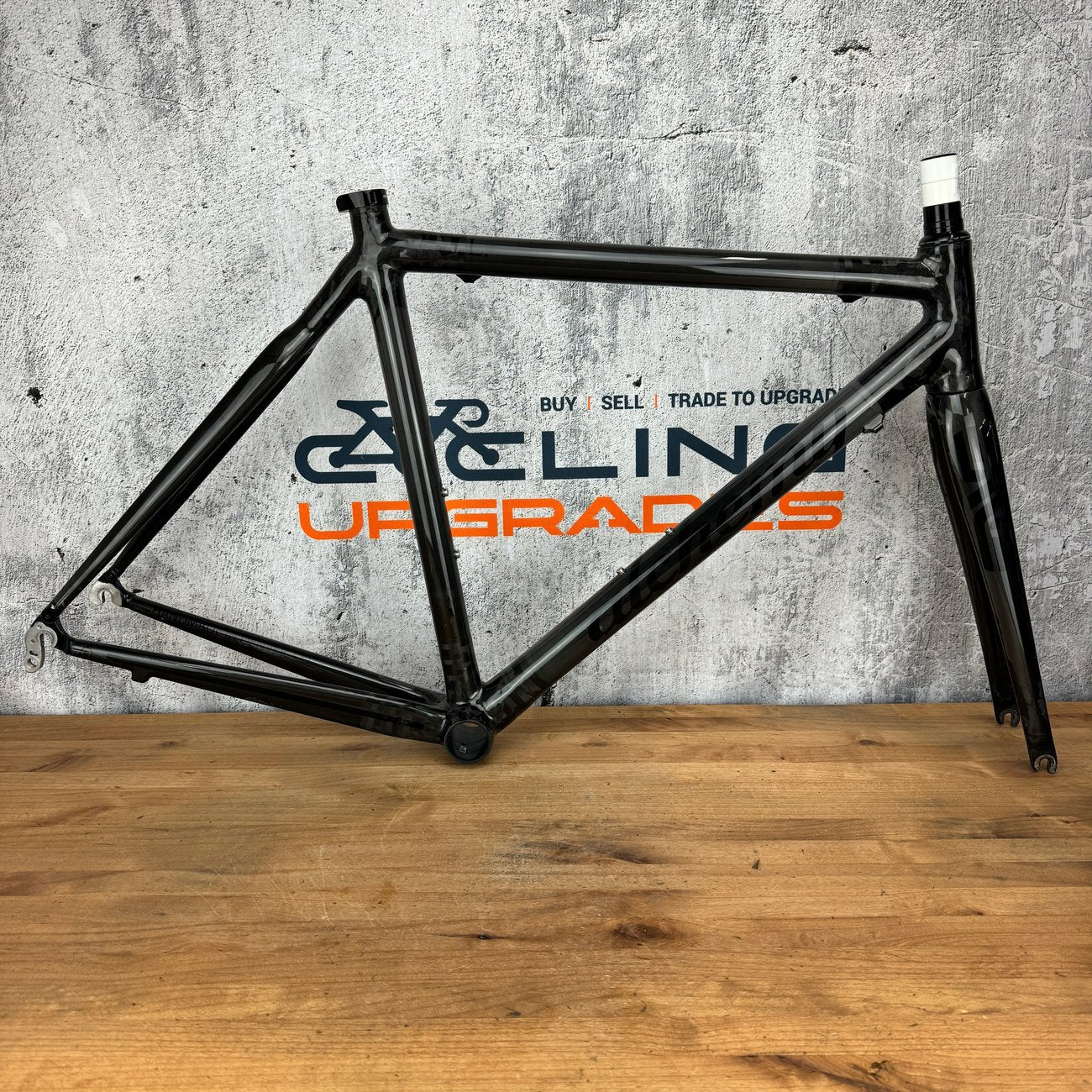

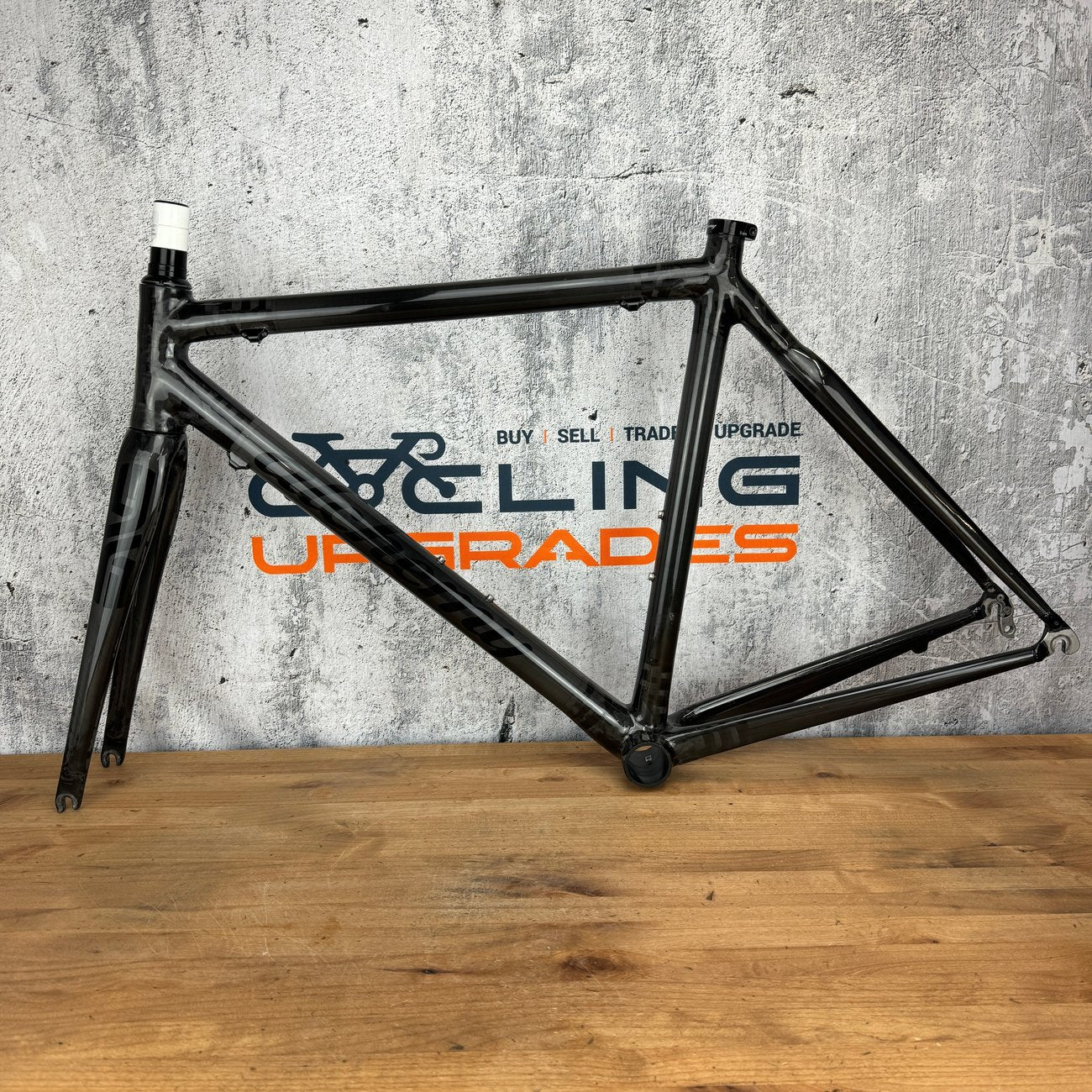

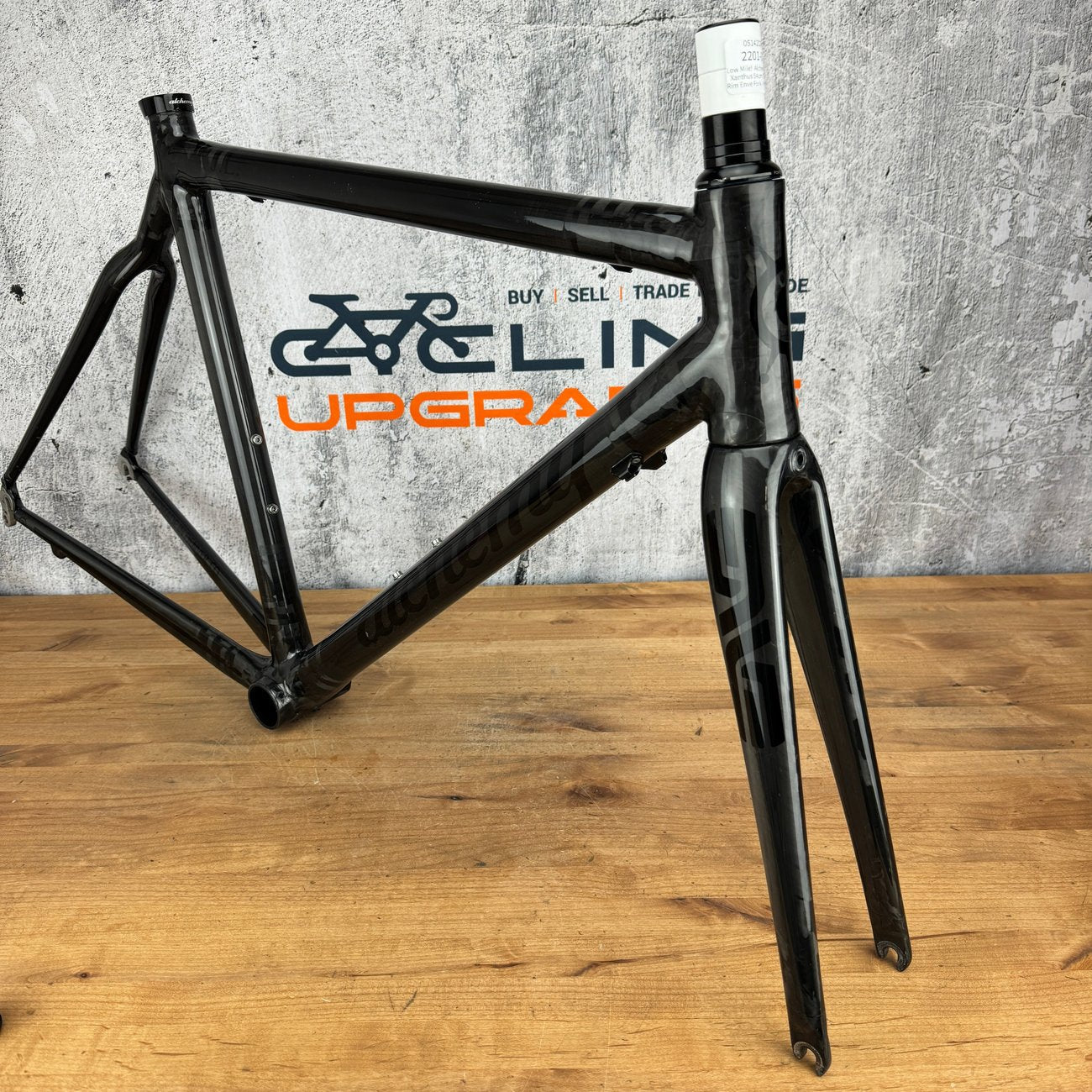

Frame: 2017 Alchemy Xanthus

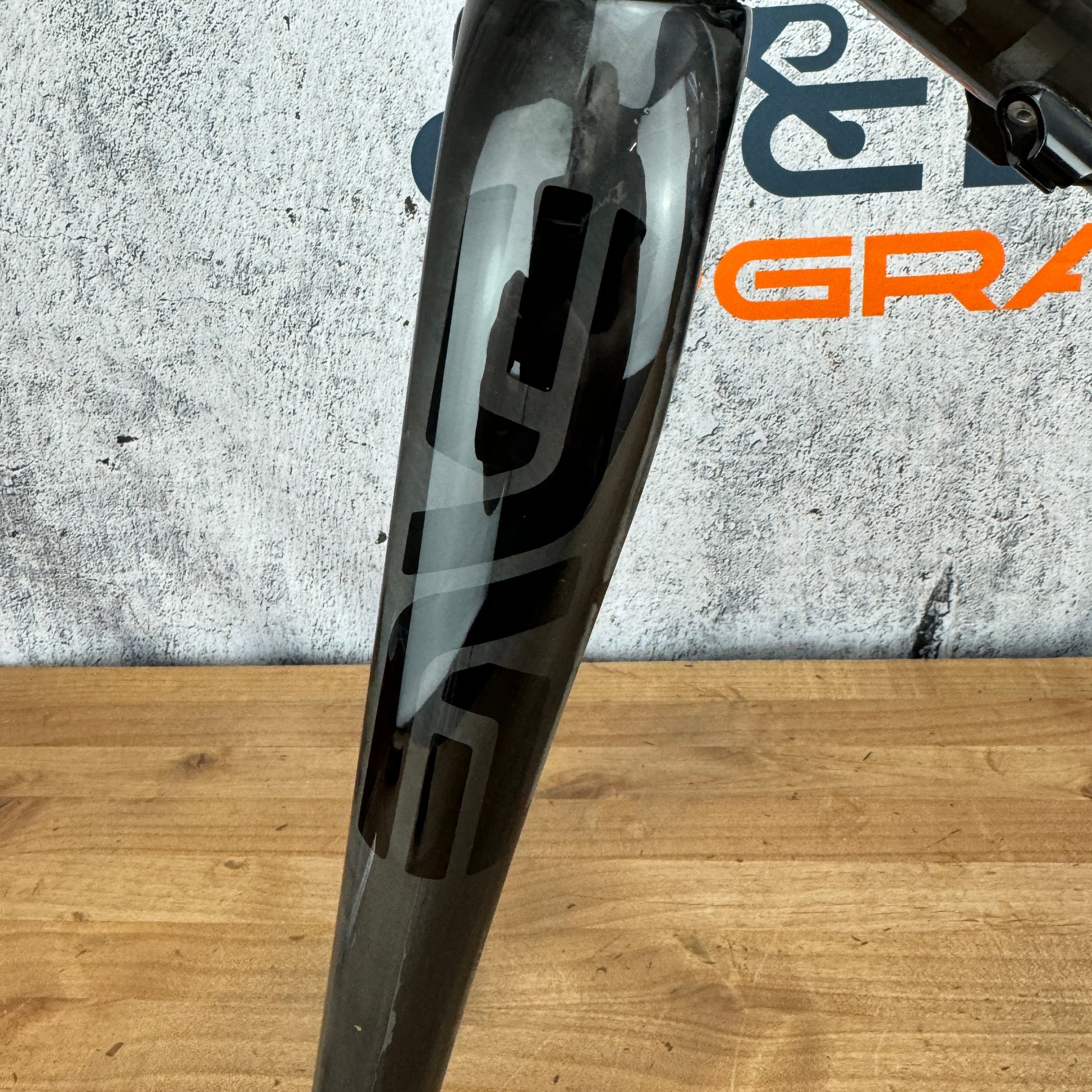

Fork: Enve carbon road fork
Color: Carbon black
Brake type: Center-Mount rim brake

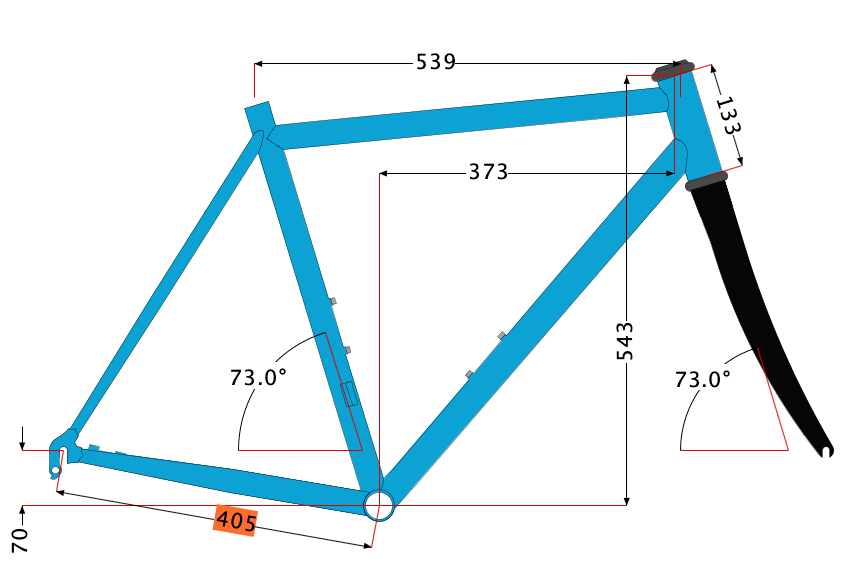

Size: 54cm. 539mm Effective Top Tube. Stack - 543mm. Reach - 373mm. Head tube 133mm. As we were not able to obtain a copy of the original geometry chart for this frame, CyclingUpgrades reverse engineered a geometry chart using a combination of measurements obtained from setting the frame in a Benchmark Tooling frame building fixture and manual measurements taken by hand. A copy of this geometry chart is shown in the last listing photo.

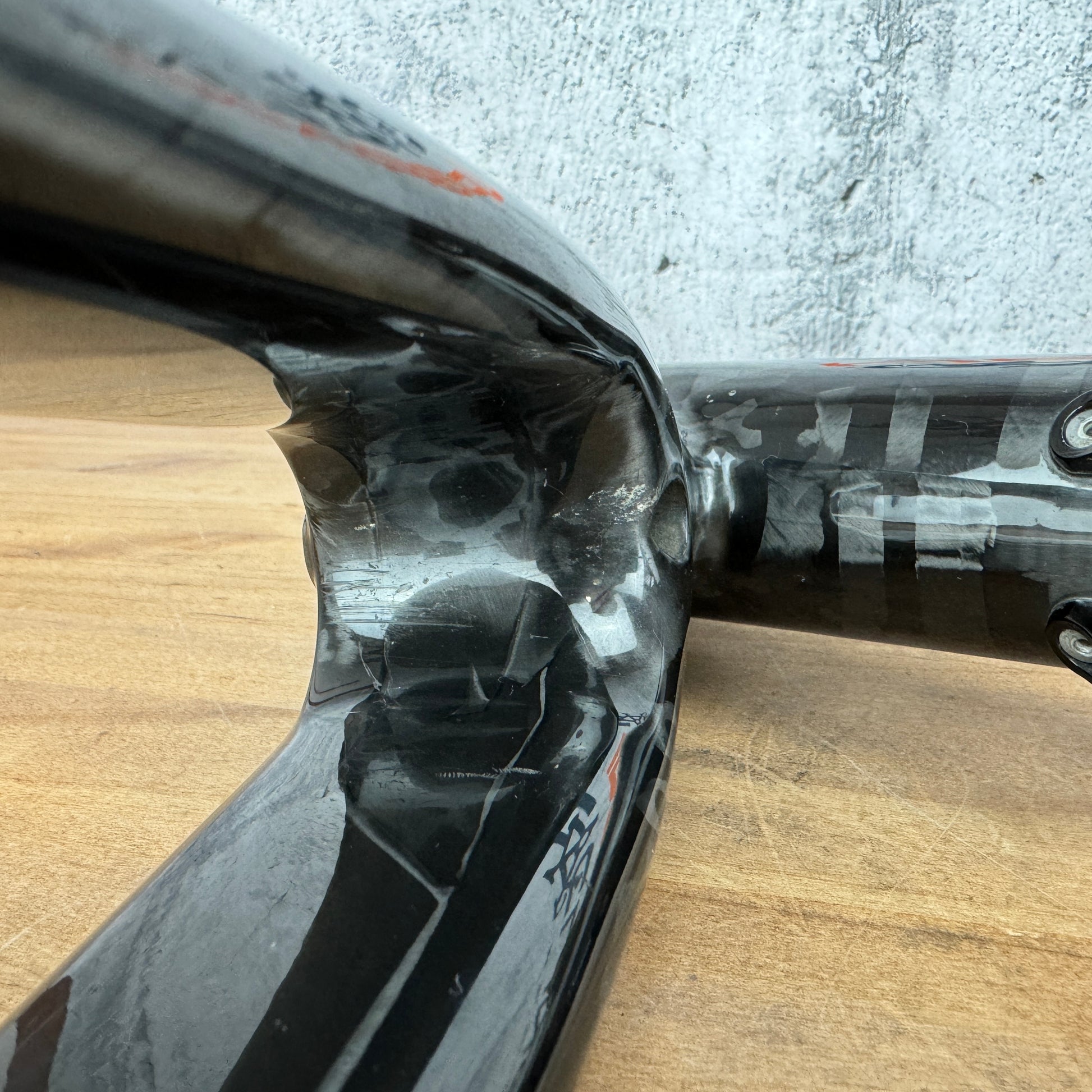

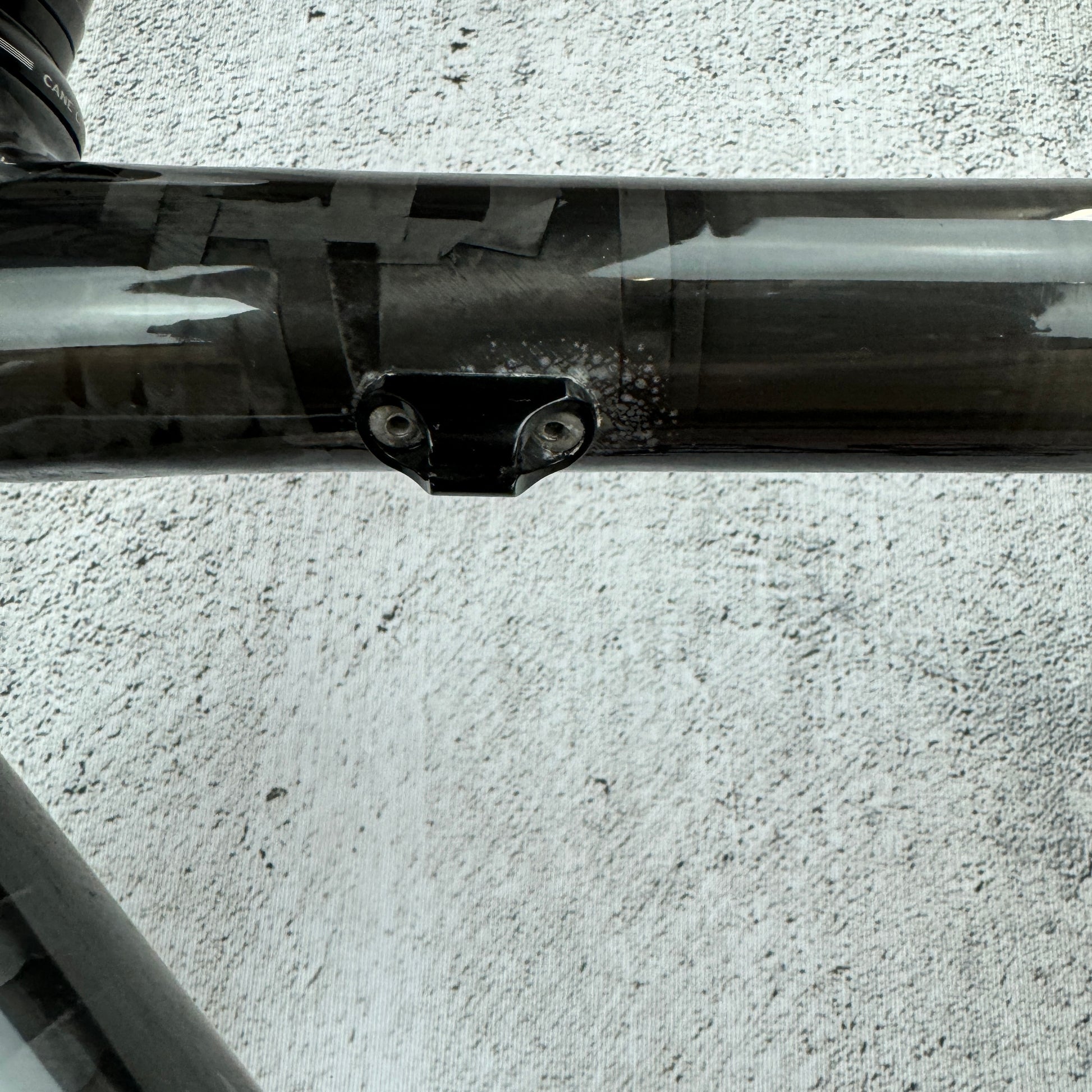

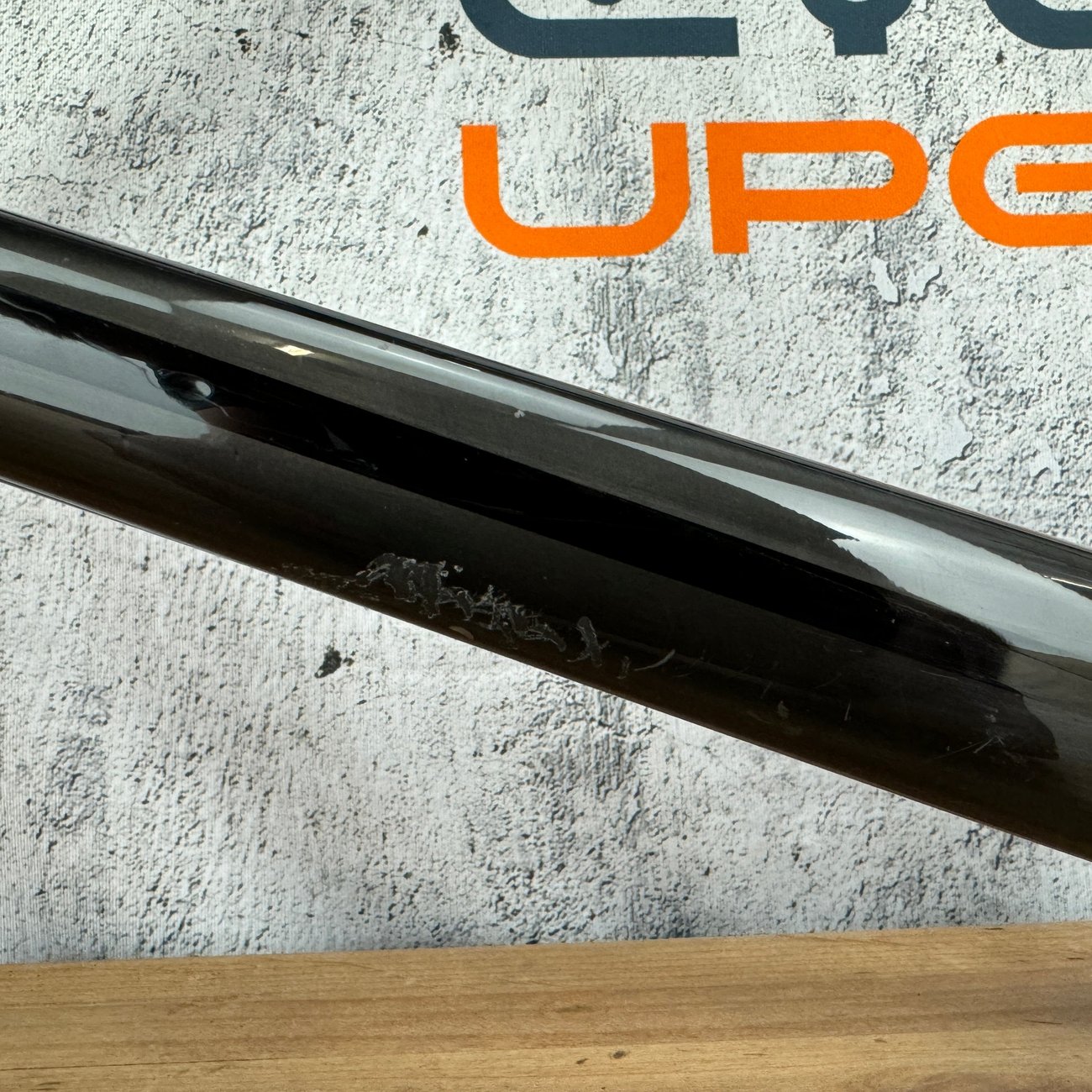

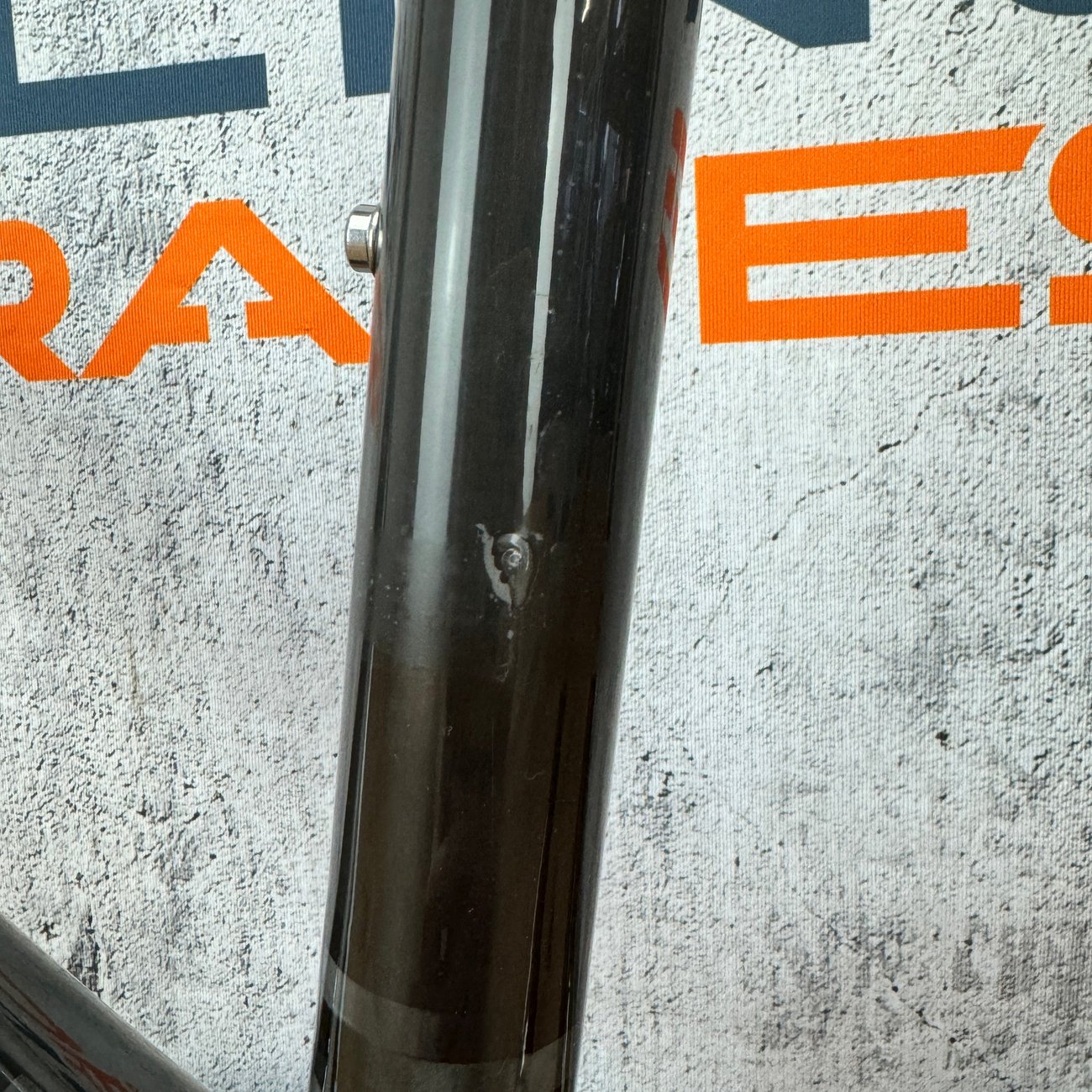

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: some scratches on the chainstays shown in pics #7 & 8, a scratch on the seat tube shown in pic #9, and some bubbling to the clear coat near the cable stop on the top tube shown in pic #10. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset compatibility: Frame can be setup for Di2, EPS, eTap, or mechanical groupsets. This frame was previously setup with an eTap groupset. Other frame/cable stops may be needed for Di2 or mechanical setups. Mechanical cable guide below the bottom bracket intact.

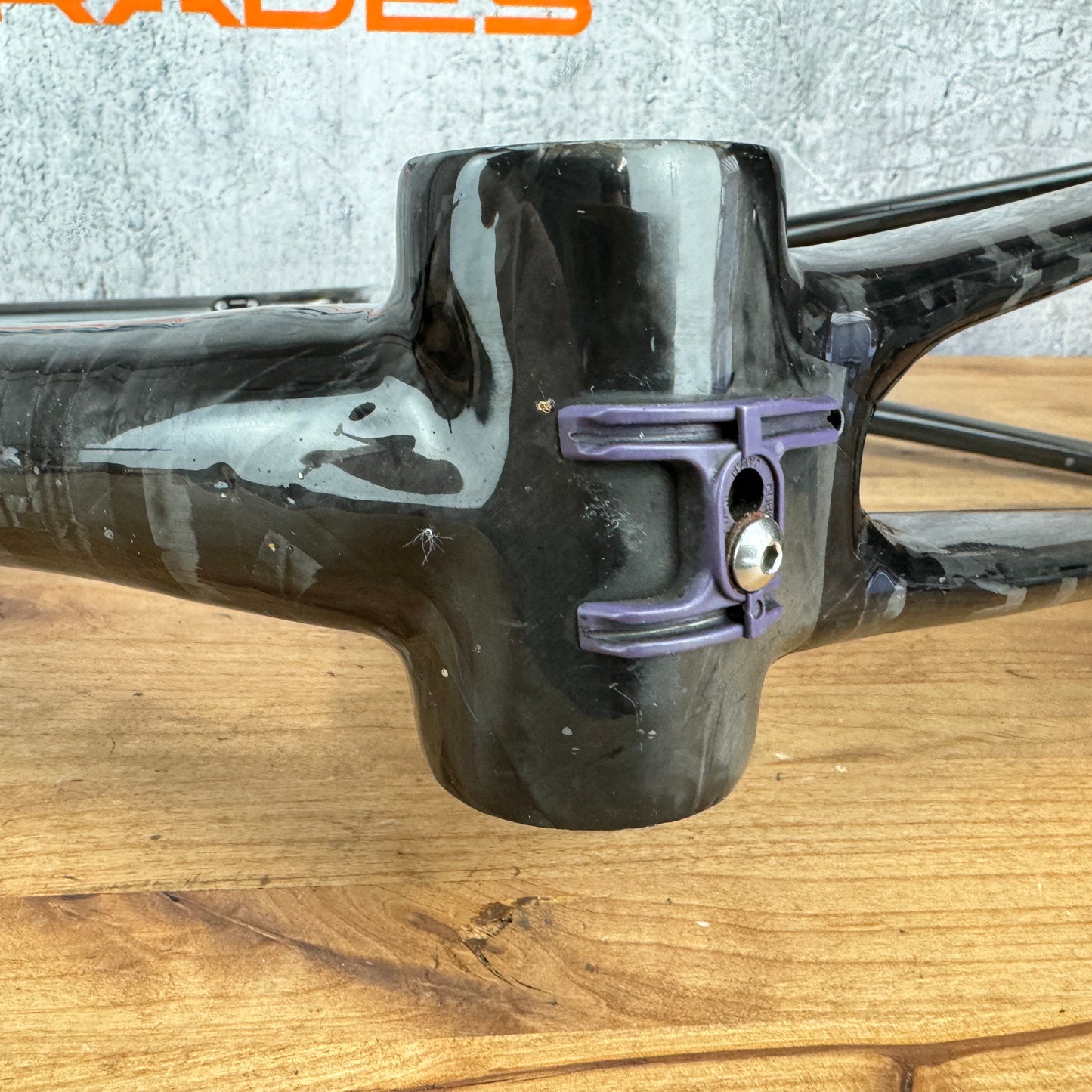

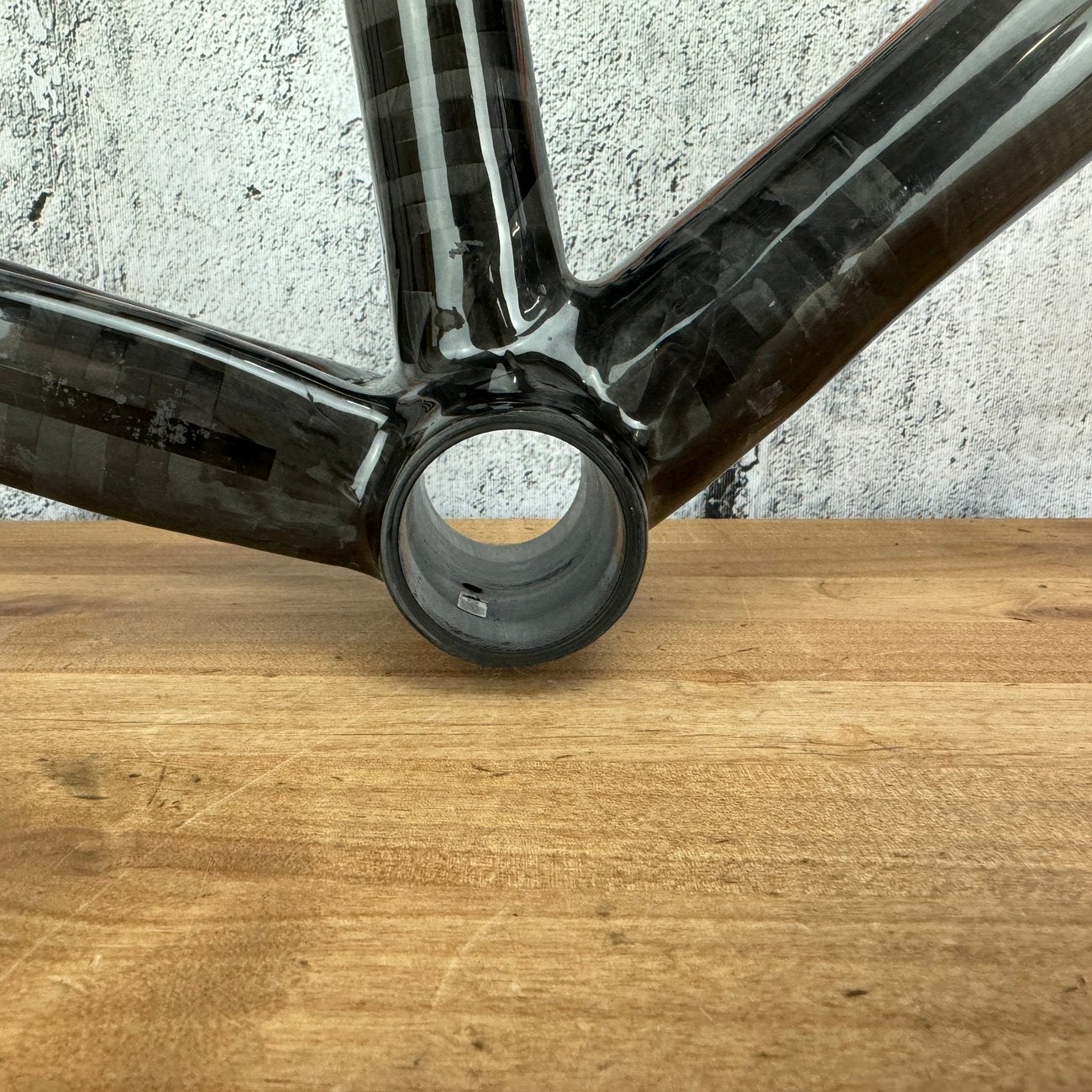

Bottom bracket: BB86 bottom bracket shell type (41mm shell diameter, 86mm shell width). Bottom bracket is currently installed and included. Alternatively, we have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

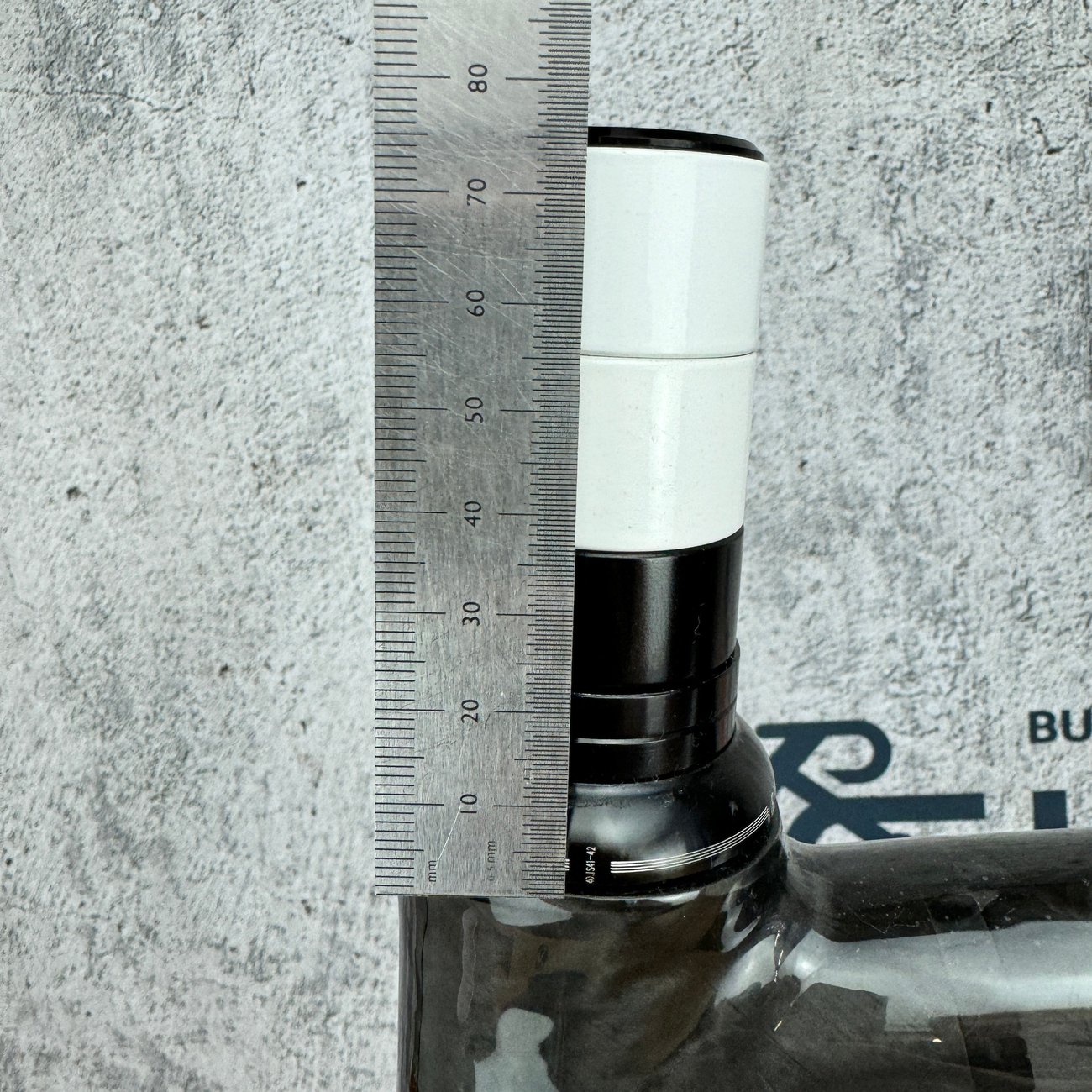

Steerer length: 75mm of steerer above the top tube. 25mm of spacers below the stem plus the headset cover. We do have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.
Seatpost: 31.6mm diameter. No seatpost included.

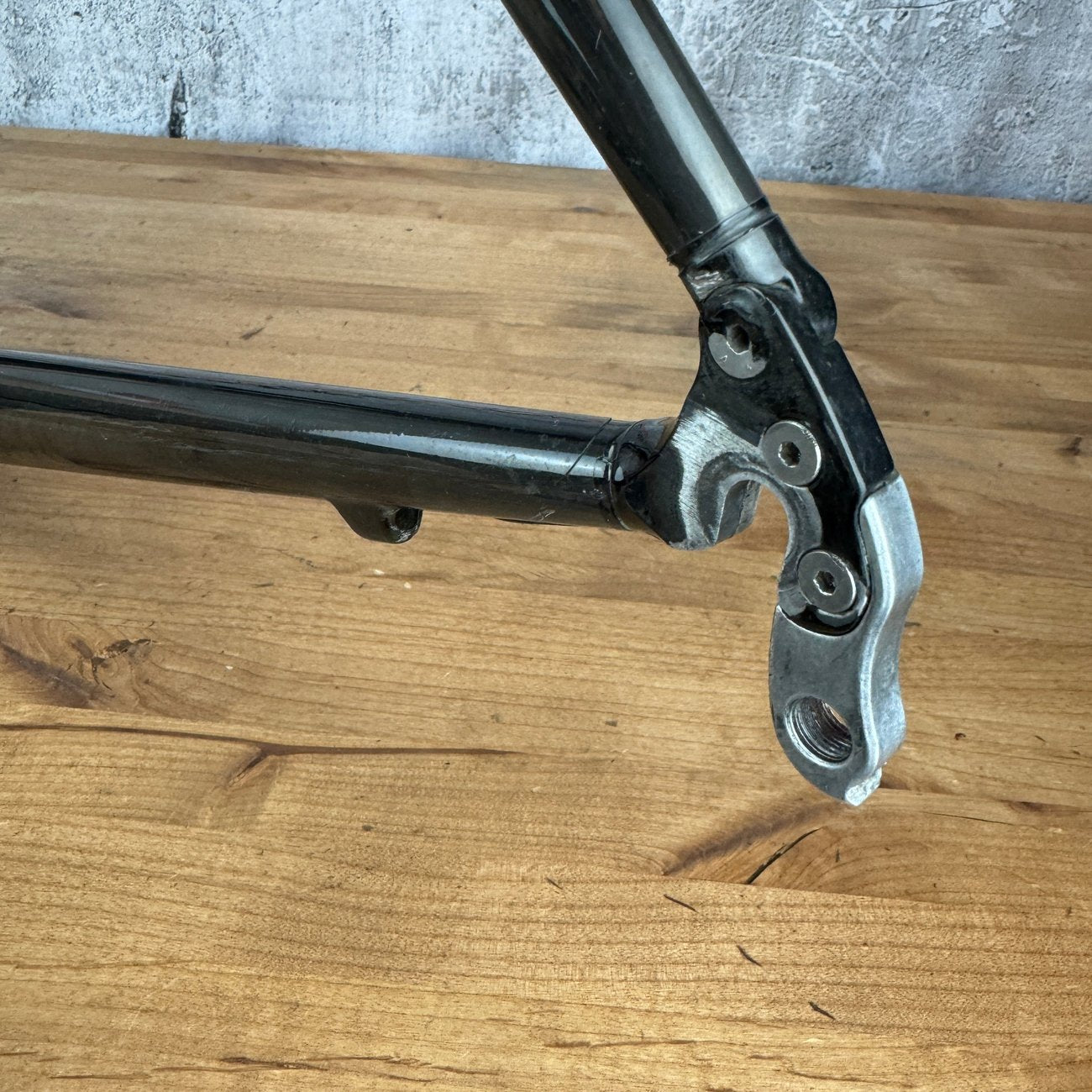

Dropout Spacing: QR x 100mm front, QR x 130mm rear.
Weight: 1635 grams as pictured with headset, frame hardware, etc.
What's included: Frame, fork, headset, rear derailleur hanger
