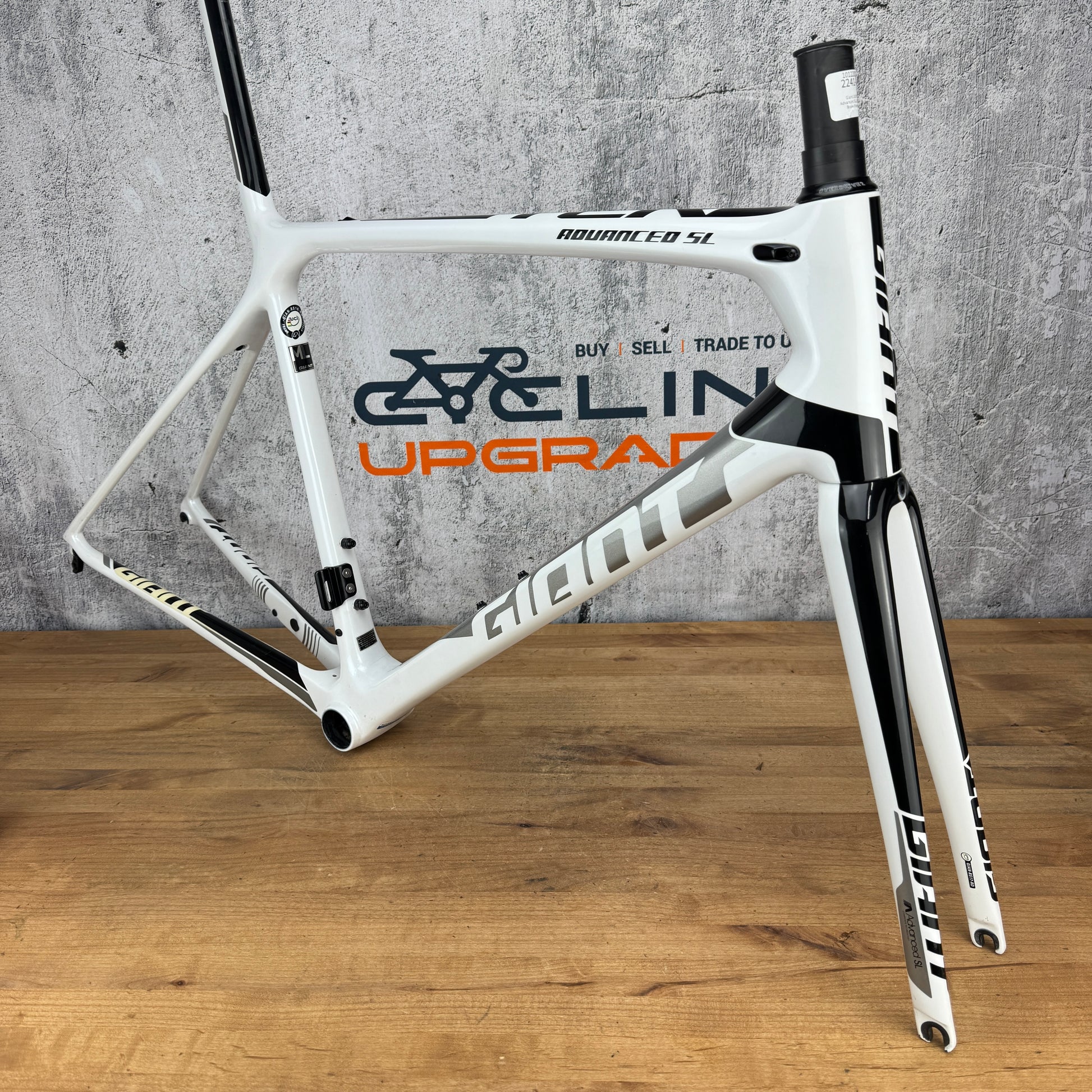

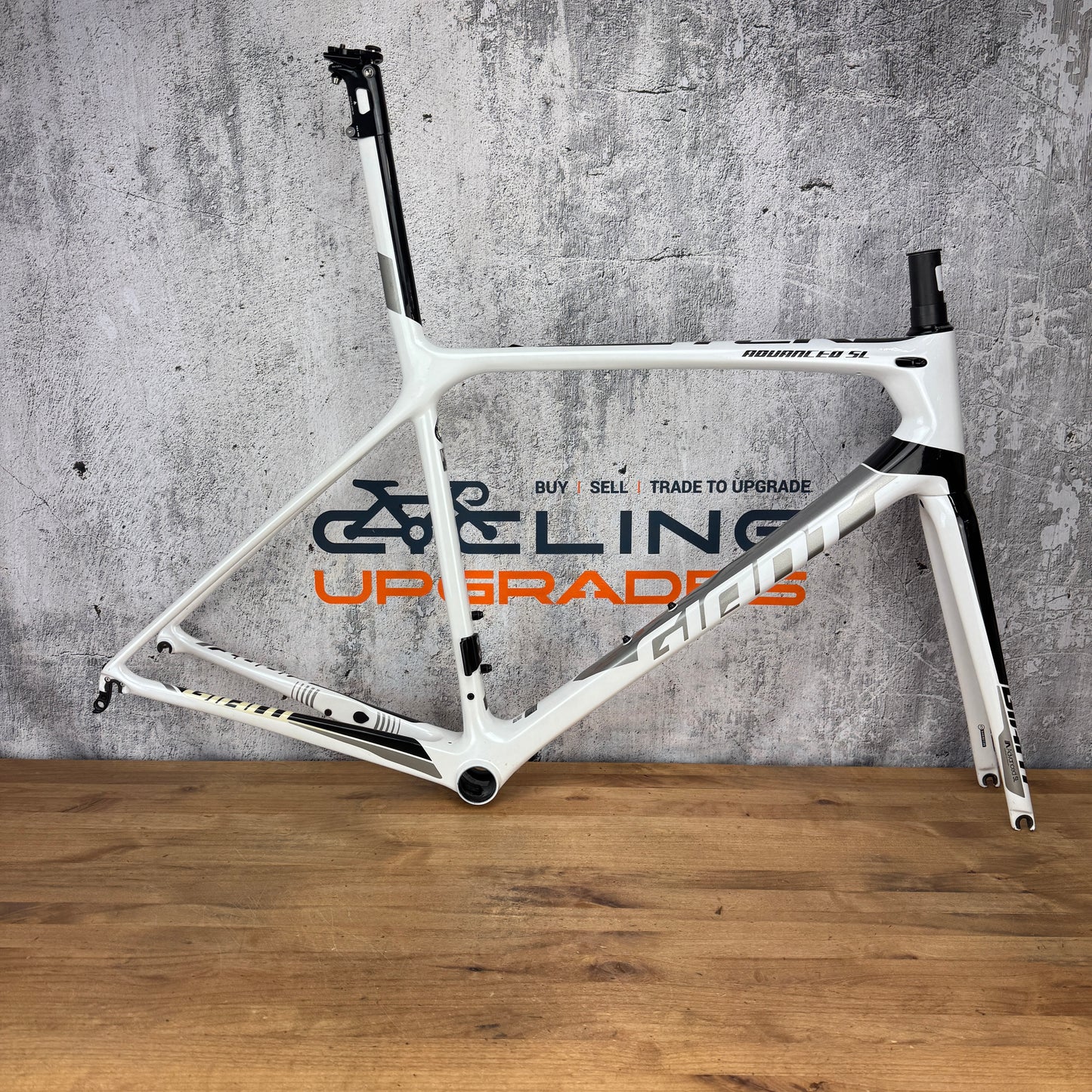

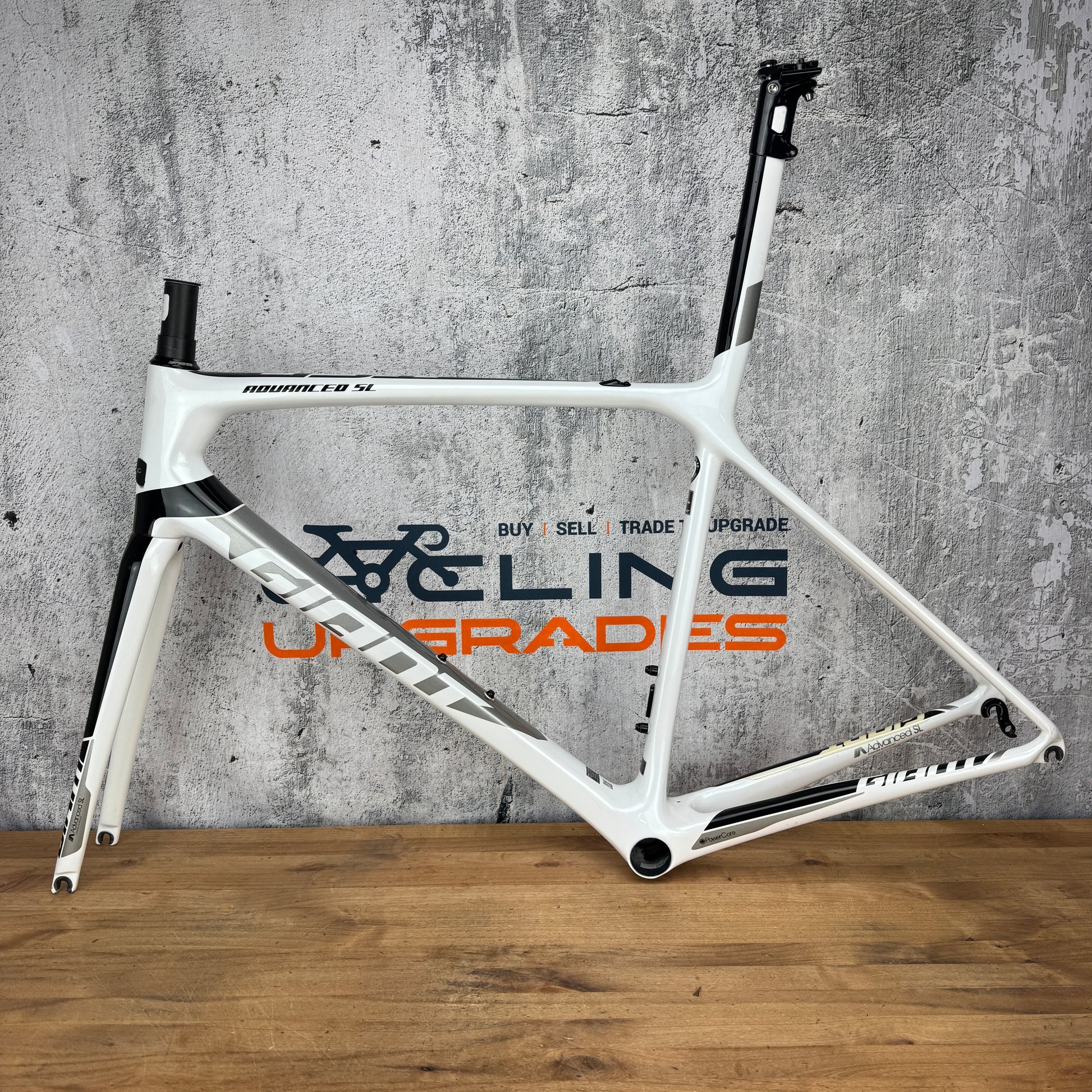

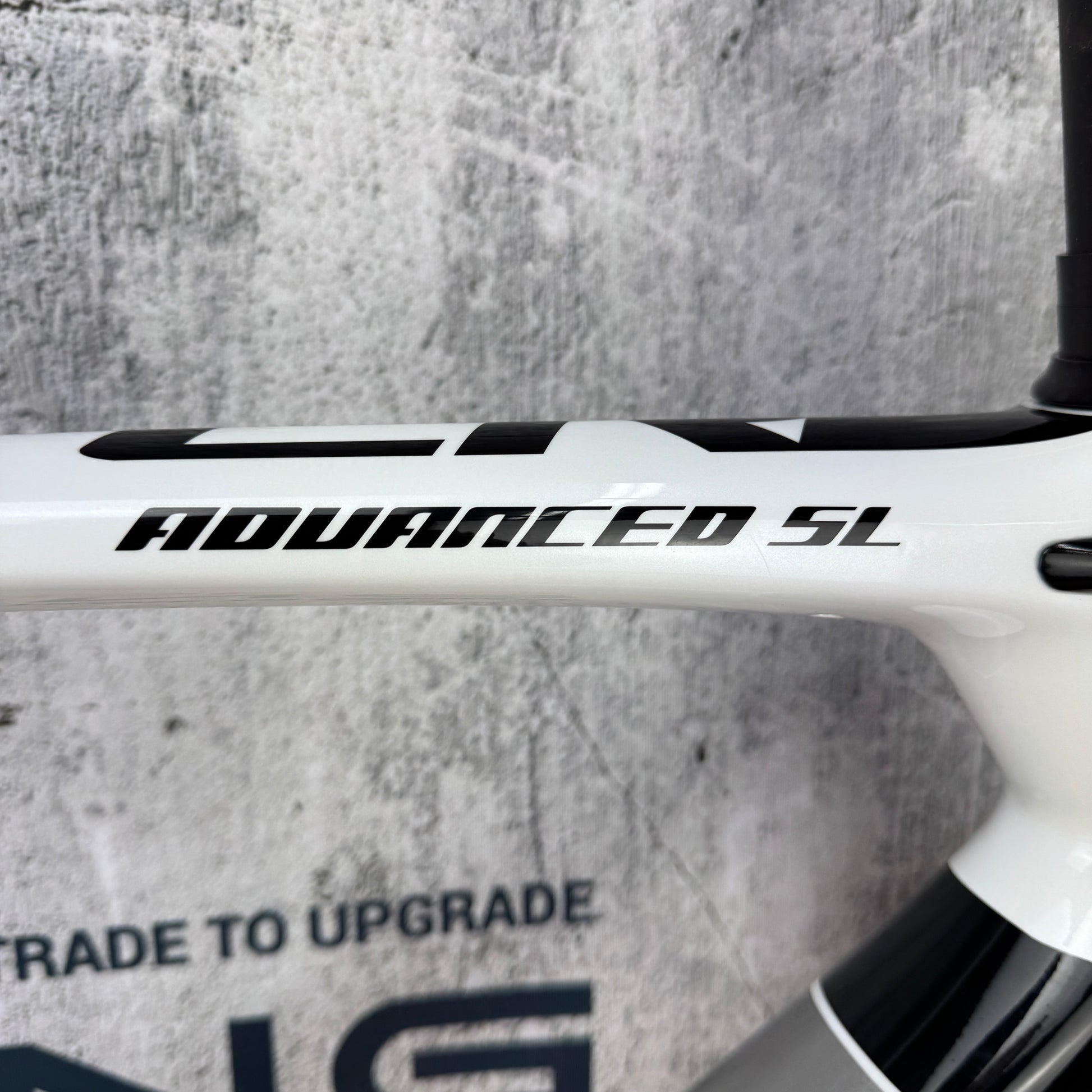

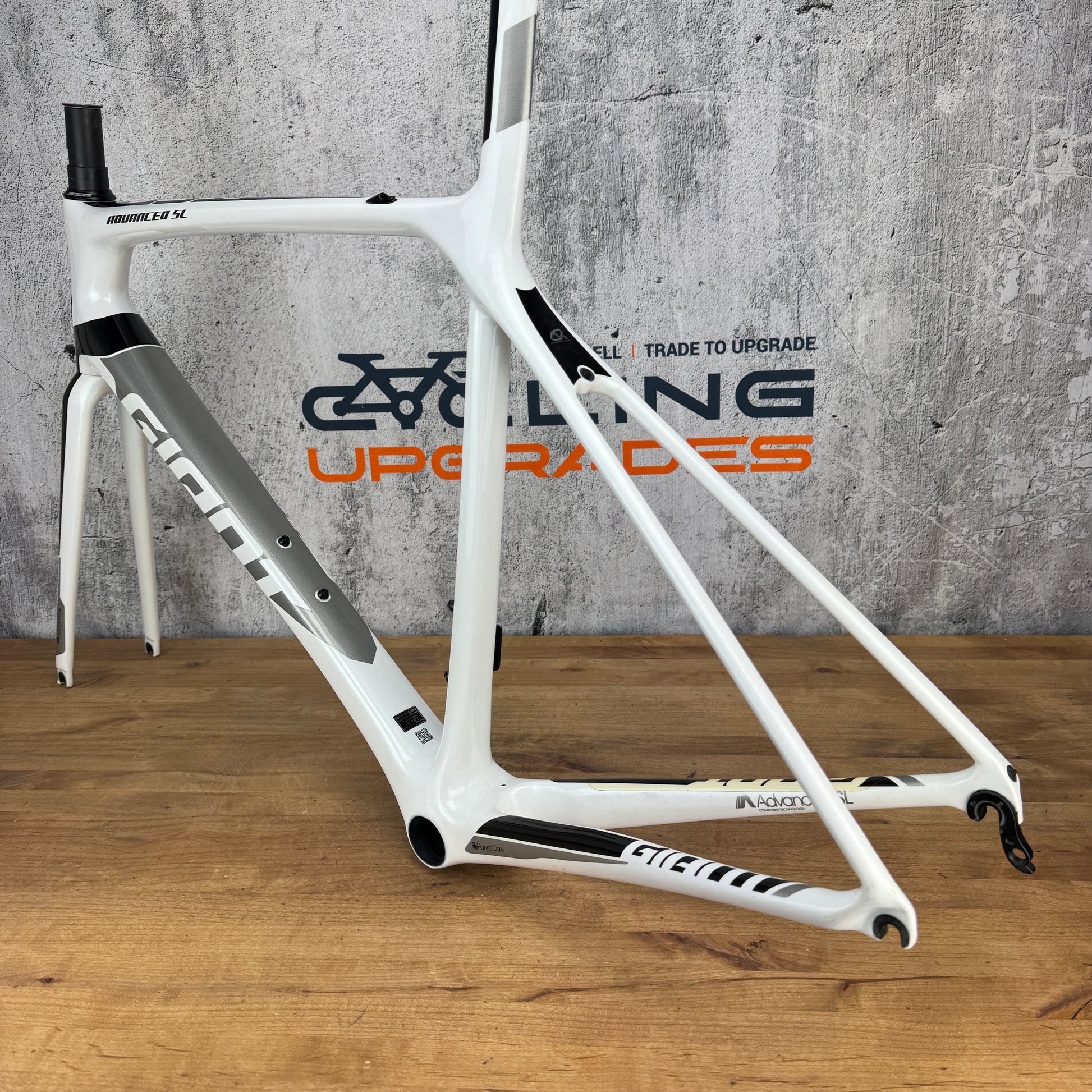

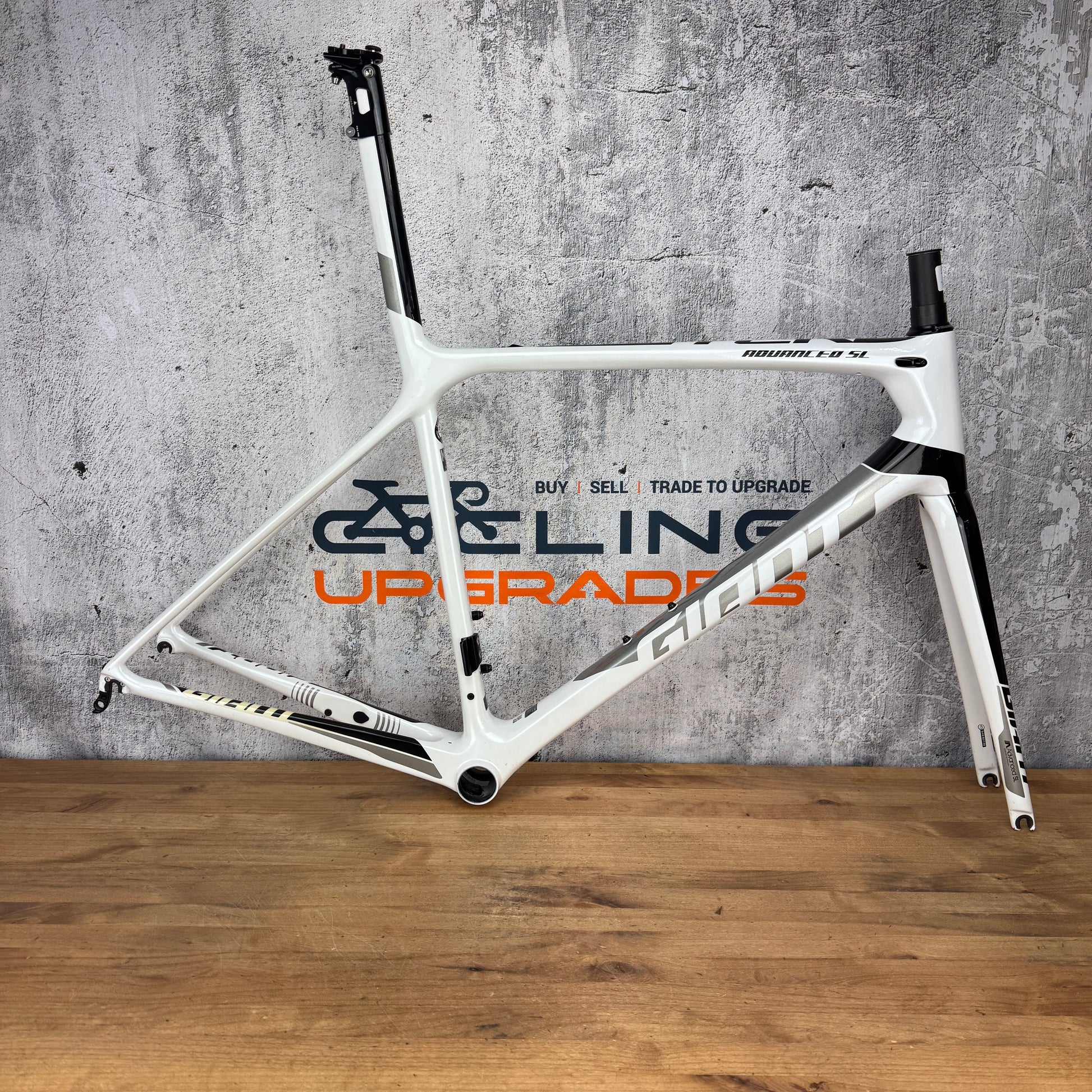

Frame: 2019 Giant TCR Advanced SL
Color: White, and black
Brake type: Center-Mount rim brake
Size: Medium/Large. 570mm Effective Top Tube. Stack - 562mm. Reach - 398mm. Head tube 168mm. Recommend buyer confirm and research full geometry online.

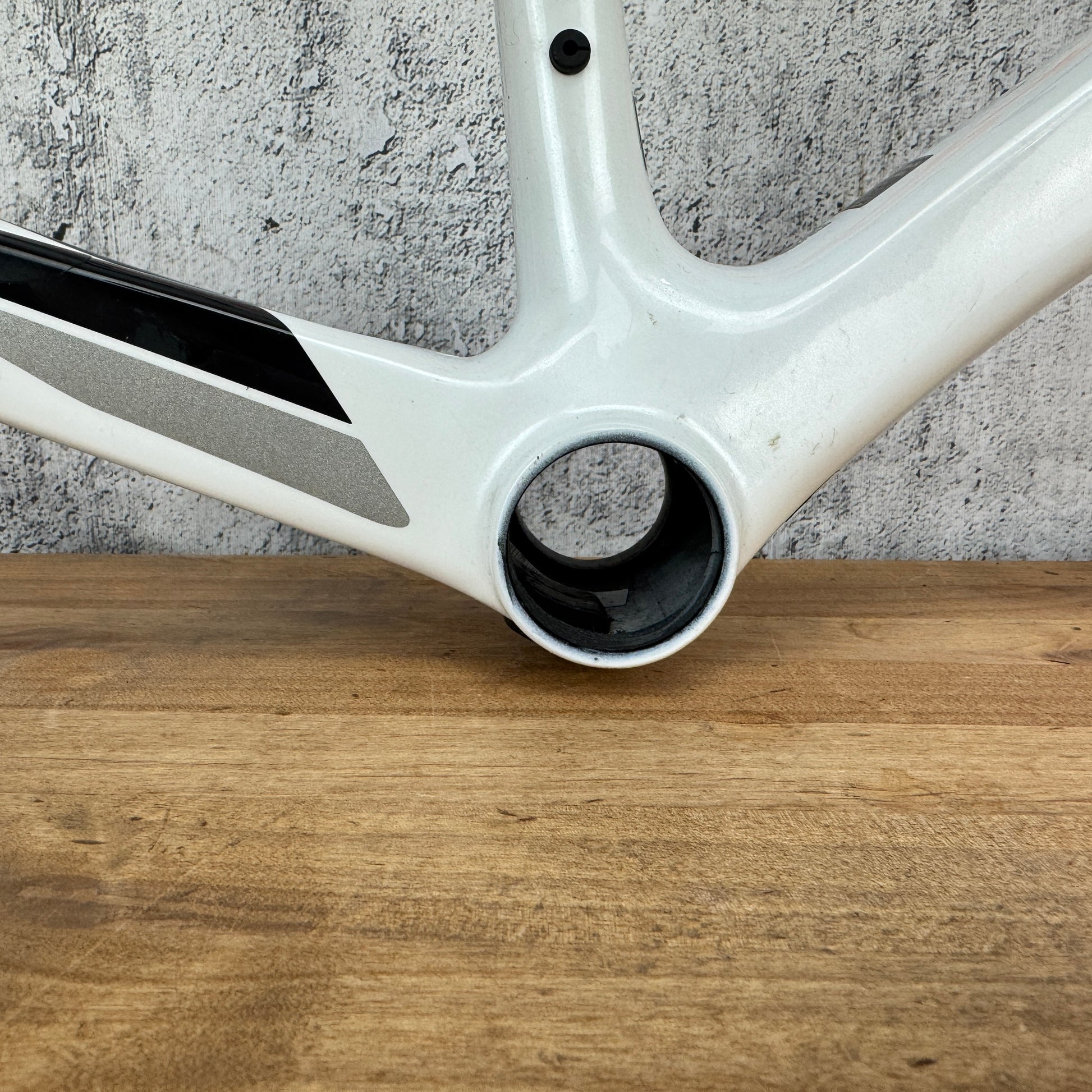

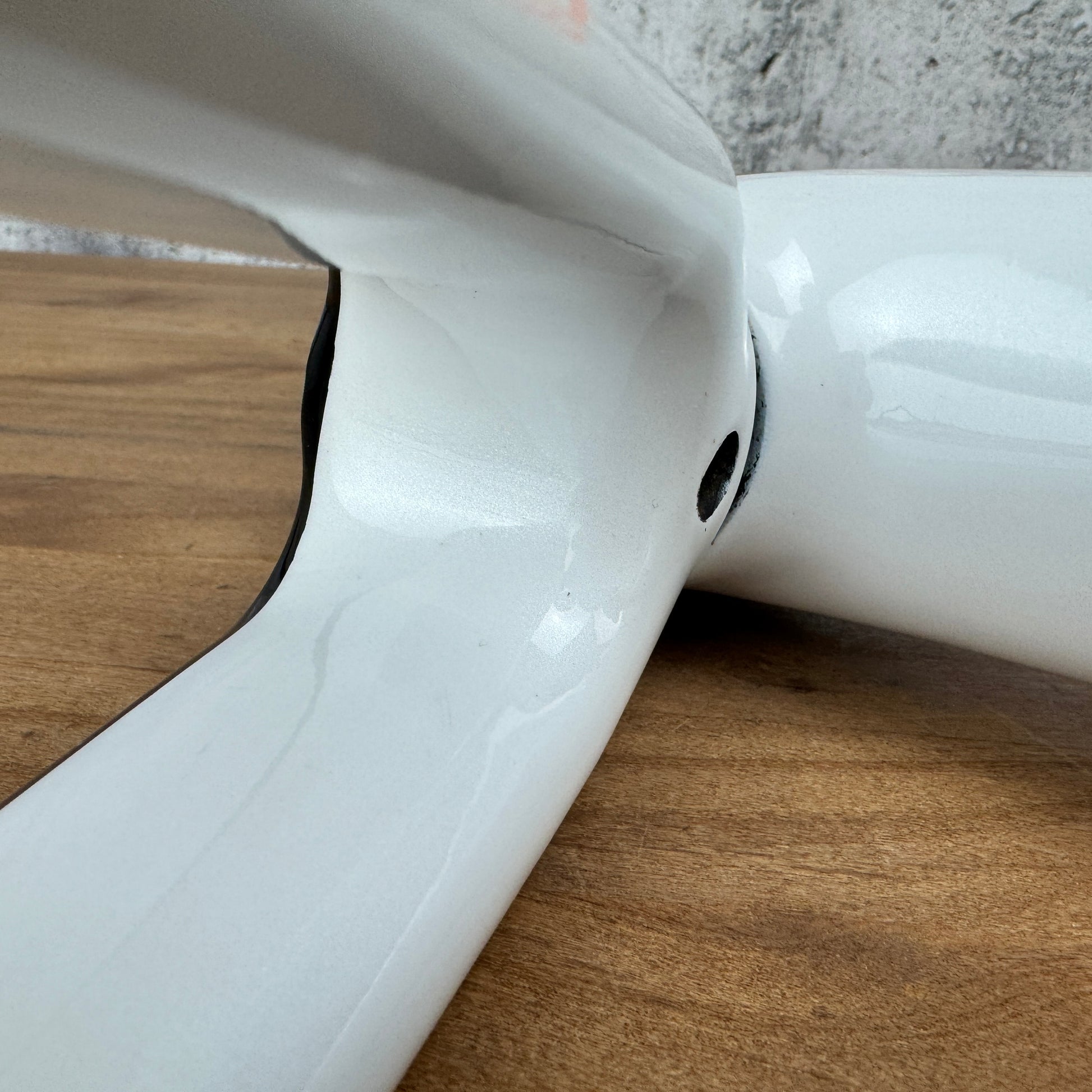

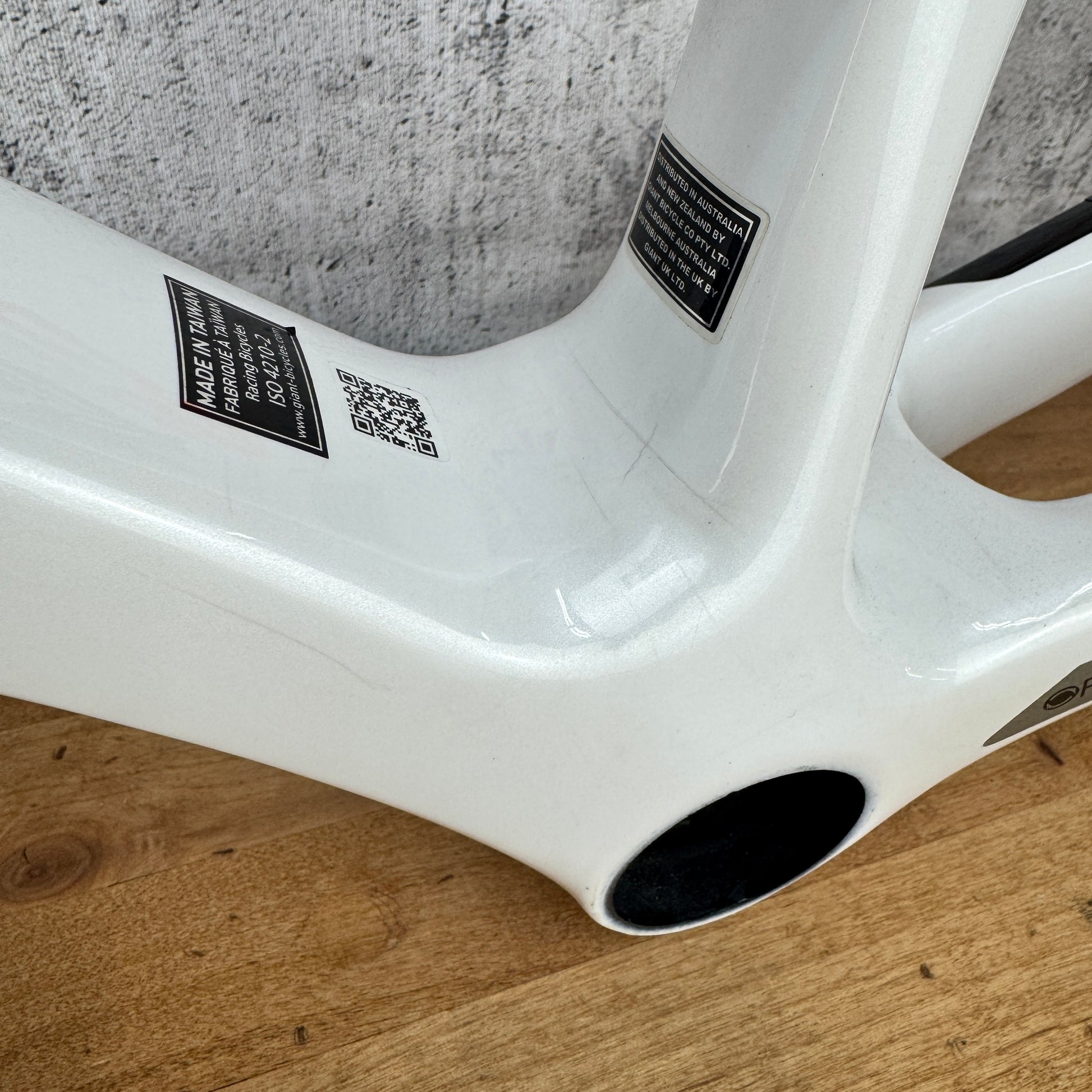

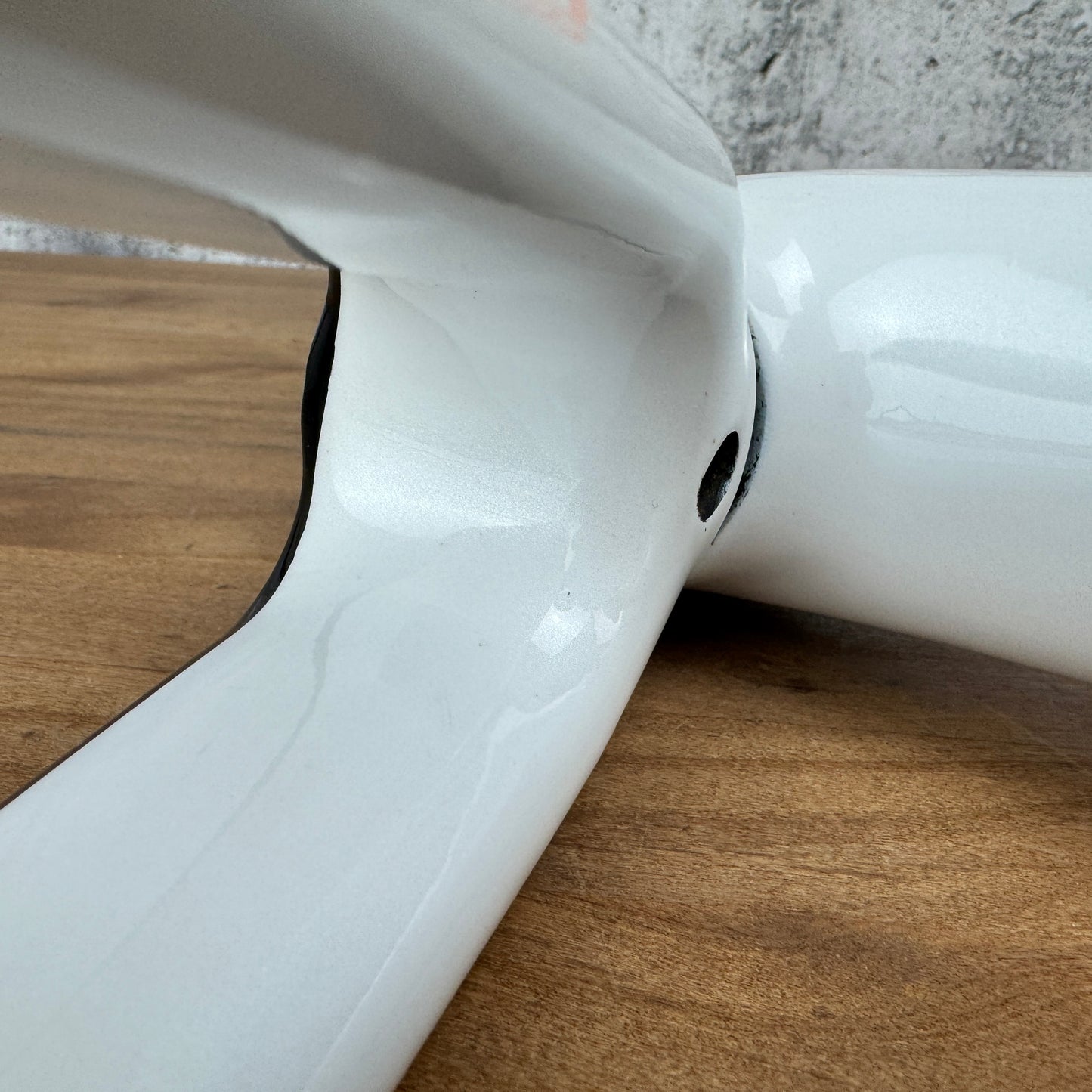

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: Light scratches and marks near the bottom bracket shown in pics #5 & 6. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.

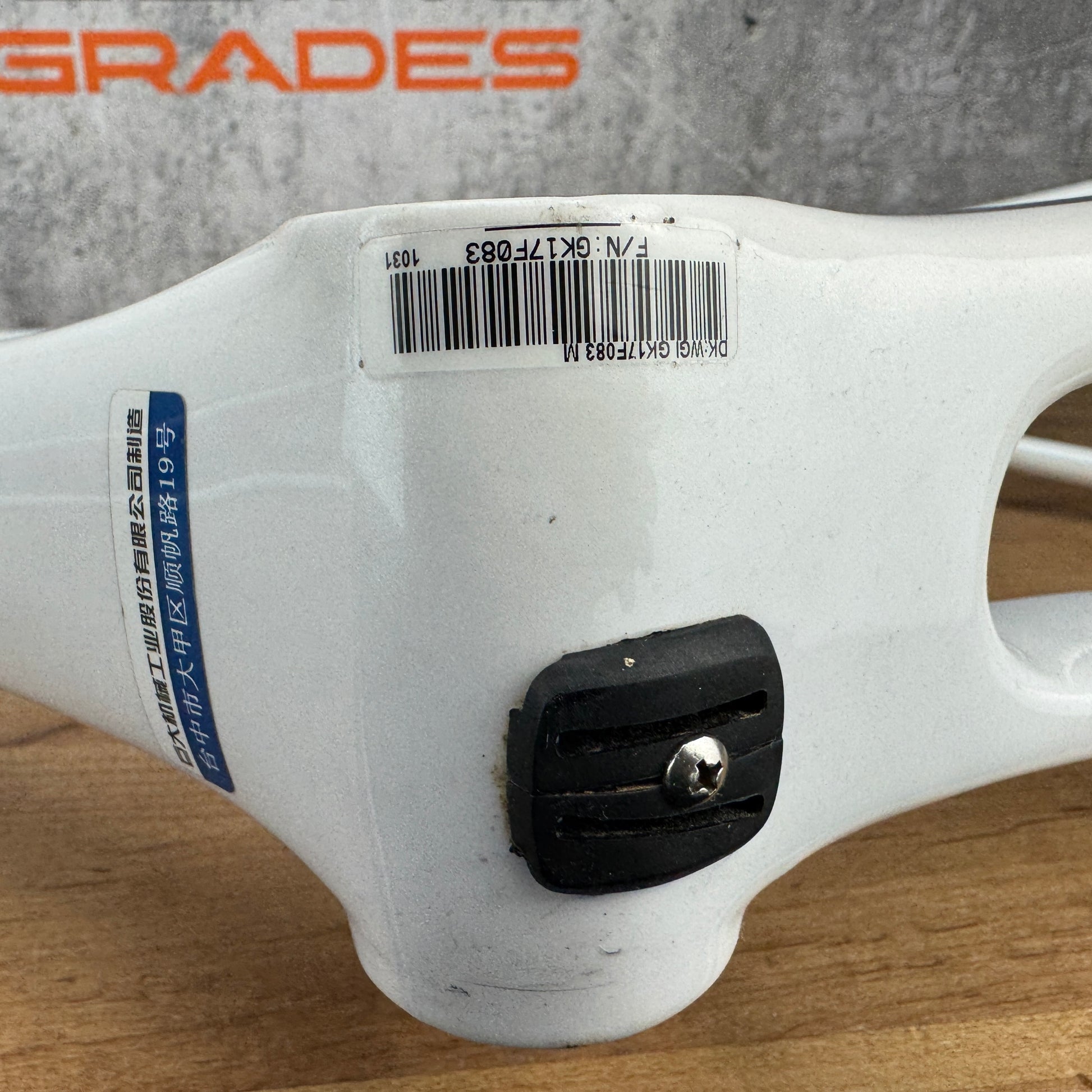

Groupset compatibility: Frame can be setup for Di2, EPS, eTap, or mechanical groupsets. This frame was previously setup with an eTap groupset. Other frame/cable stops may be needed for Di2 or mechanical setups. Mechanical cable guide below the bottom bracket intact.
Bottom bracket: BB86 bottom bracket shell type (41mm shell diameter, 86mm shell width). No bottom bracket is currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

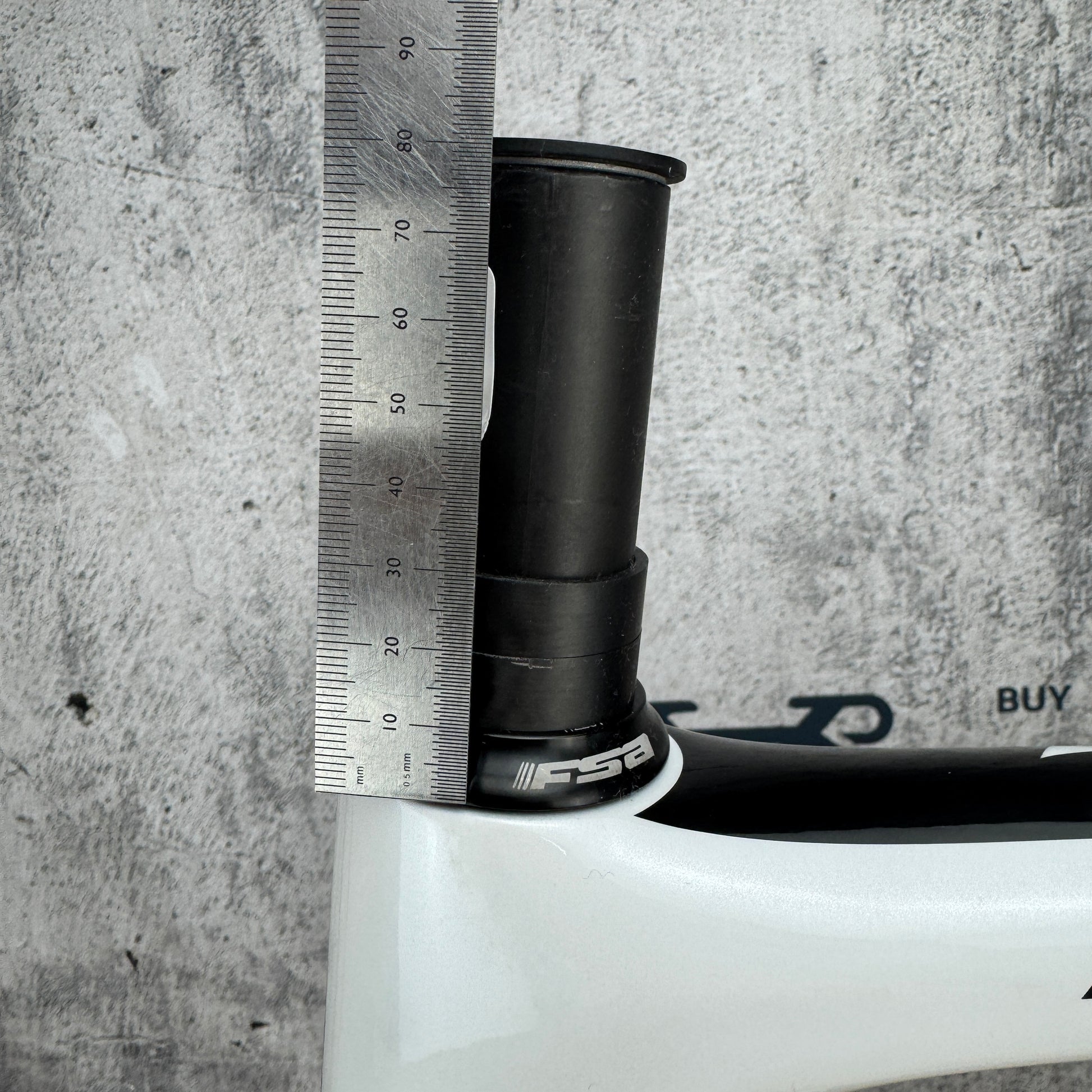

Steerer length: 80mm of steerer above the top tube. 20mm of spacers below the stem plus the headset cover. We do have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.
Seatpost: Seatmast height is 755mm from center of bottom bracket. The minimum height to saddle rails is 775mm, and the maximum height to the saddle rails is 795mm. Add your saddle stack height to determine max saddle height from center of bottom bracket. Alloy seatmast cap included.
Dropout Spacing: QR x 100mm front, QR x 130mm rear.
Weight: 1490 grams as pictured with headset, frame hardware, etc.
What's included: Frame, fork, headset, rear derailleur hanger, seatmast cap.
