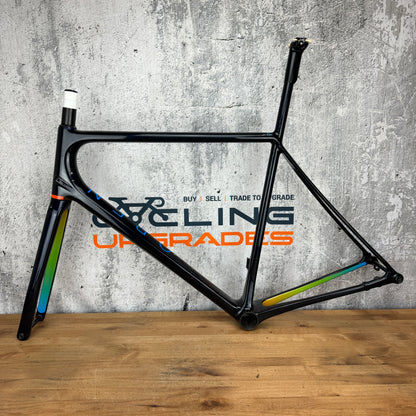

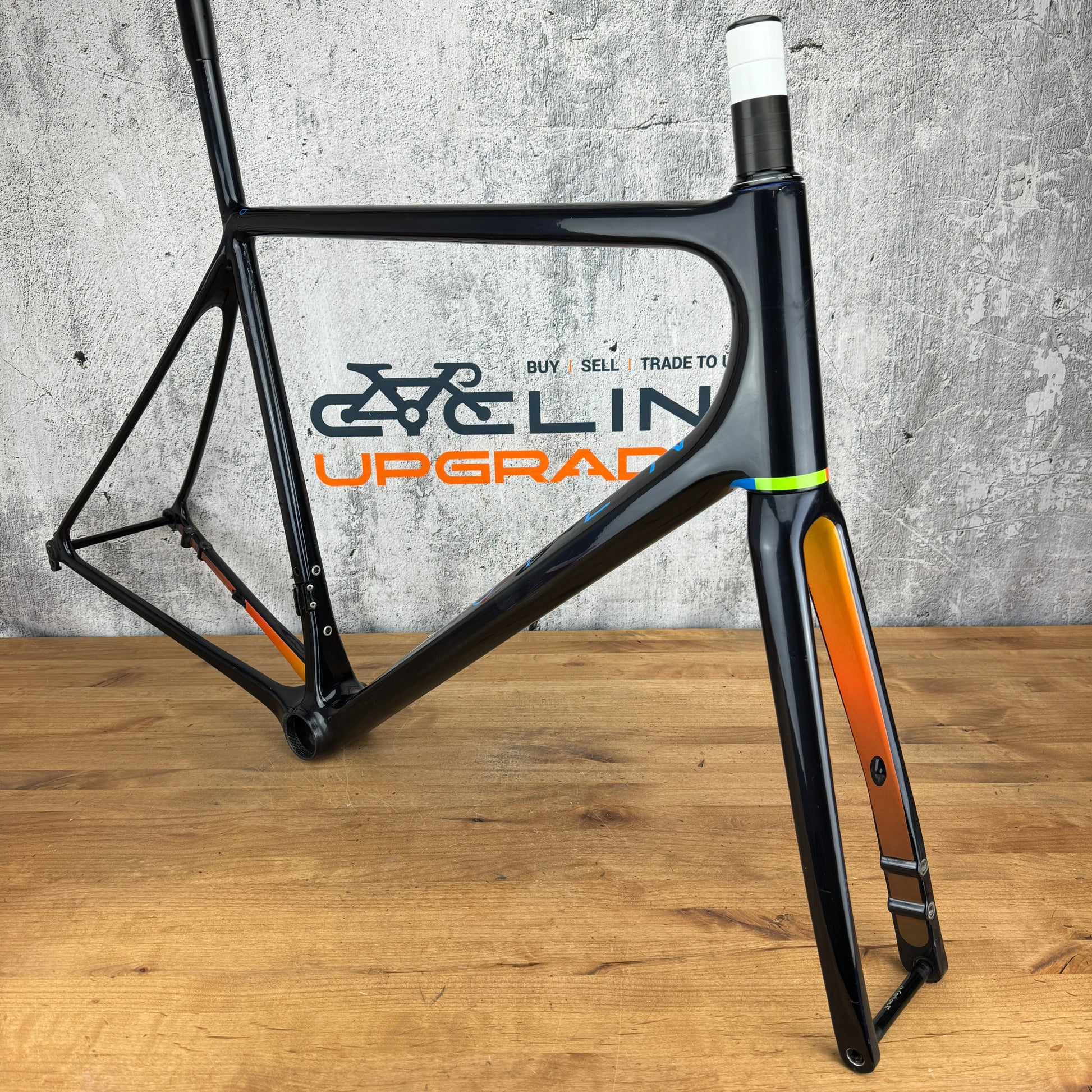

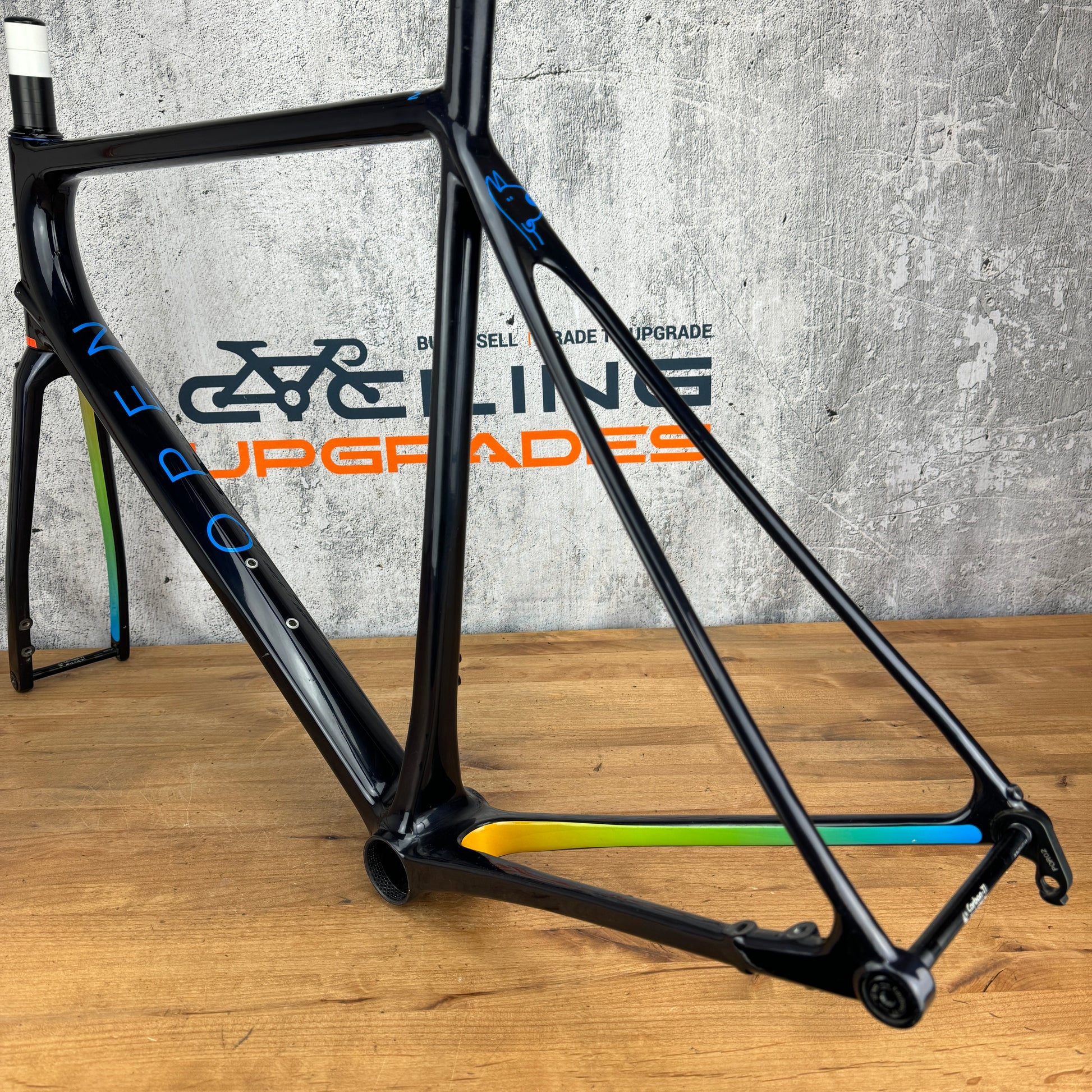

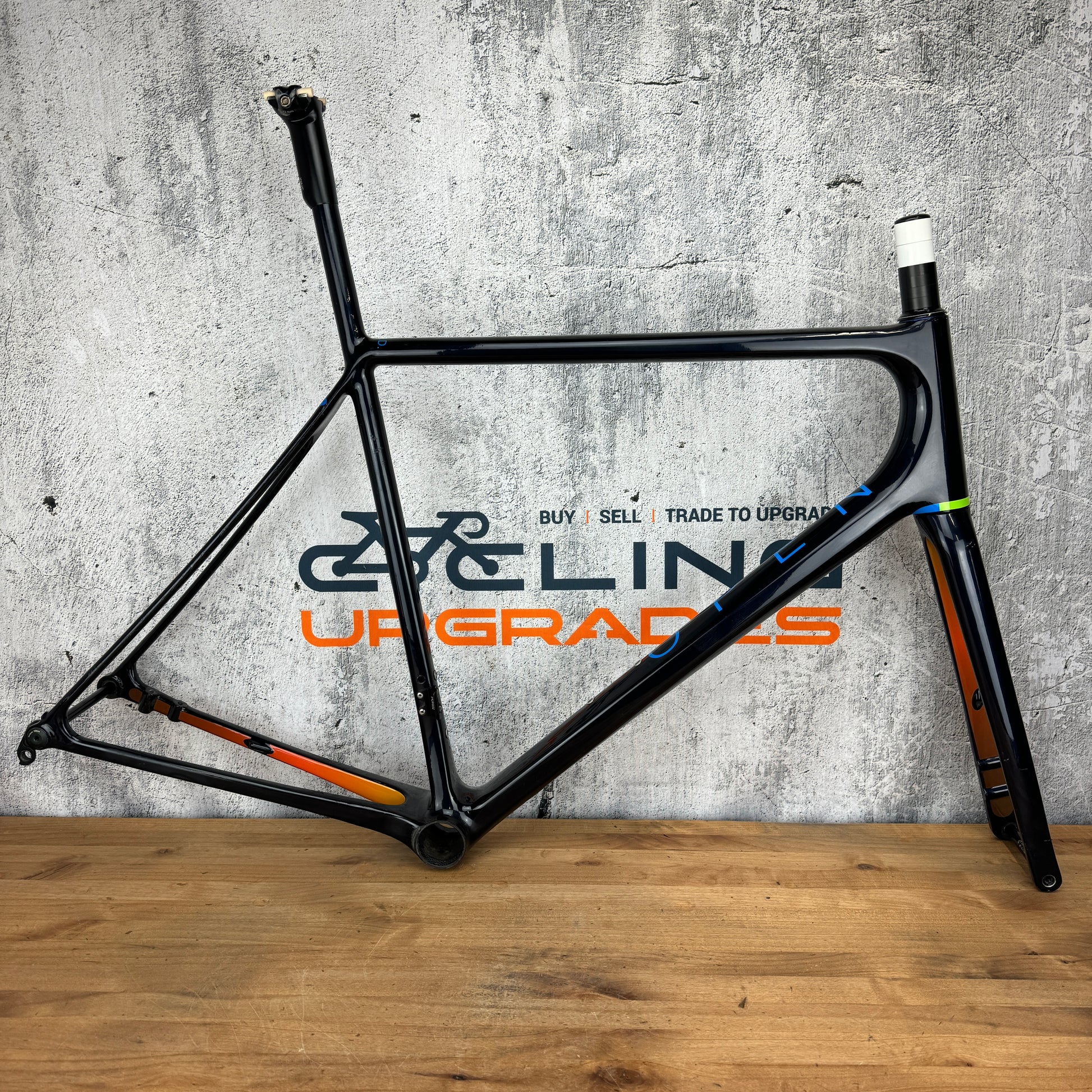

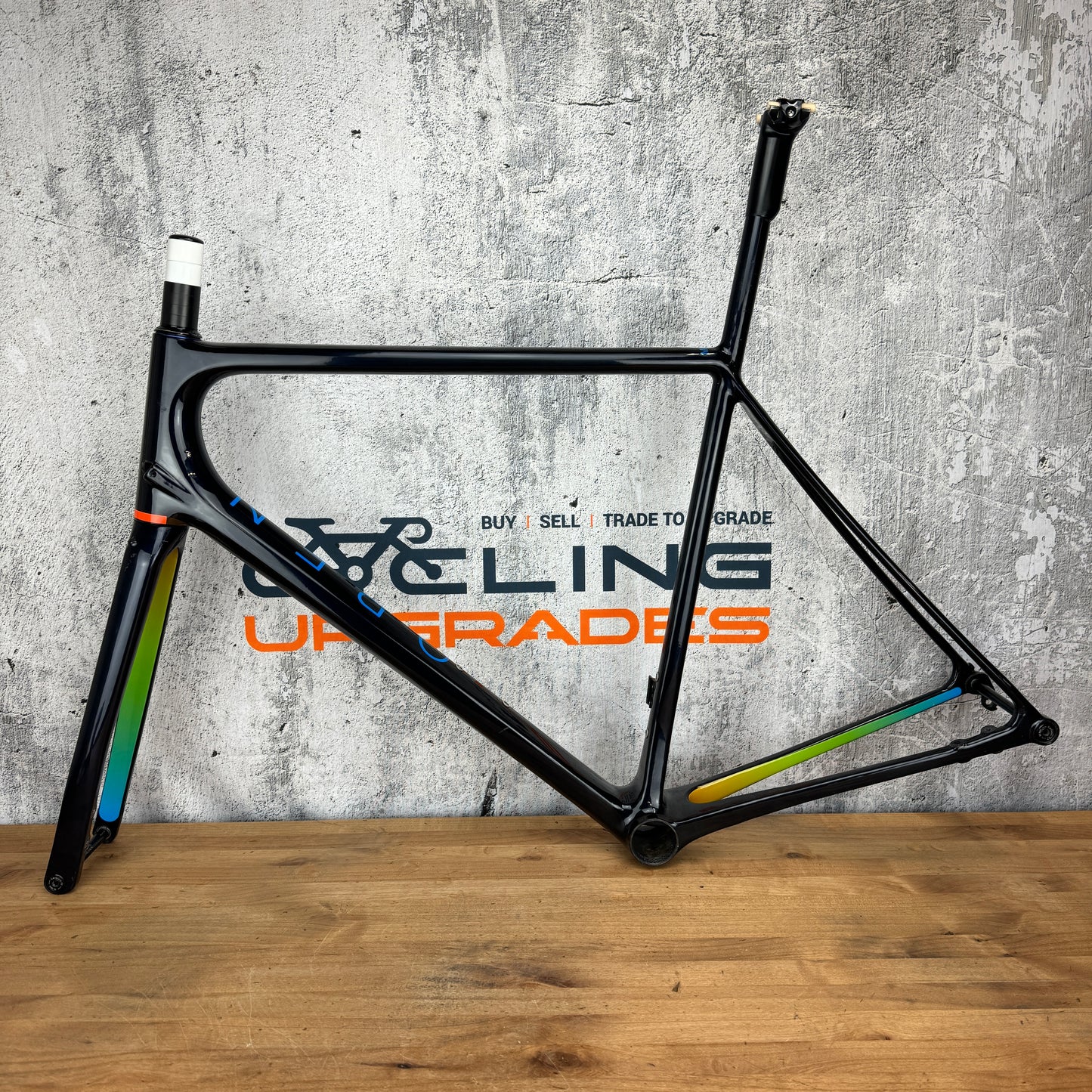

Frame: 2021 Open MIN.D
Color: Midnight blue
Tire Clearance: 33mm max tire clearance.
Brake type: Flat-Mount disc brake.
Size: Large. 569mm Effective Top Tube. Stack - 585mm. Reach - 385mm. Head tube 184mm. Recommend buyer confirm and research full geometry online.

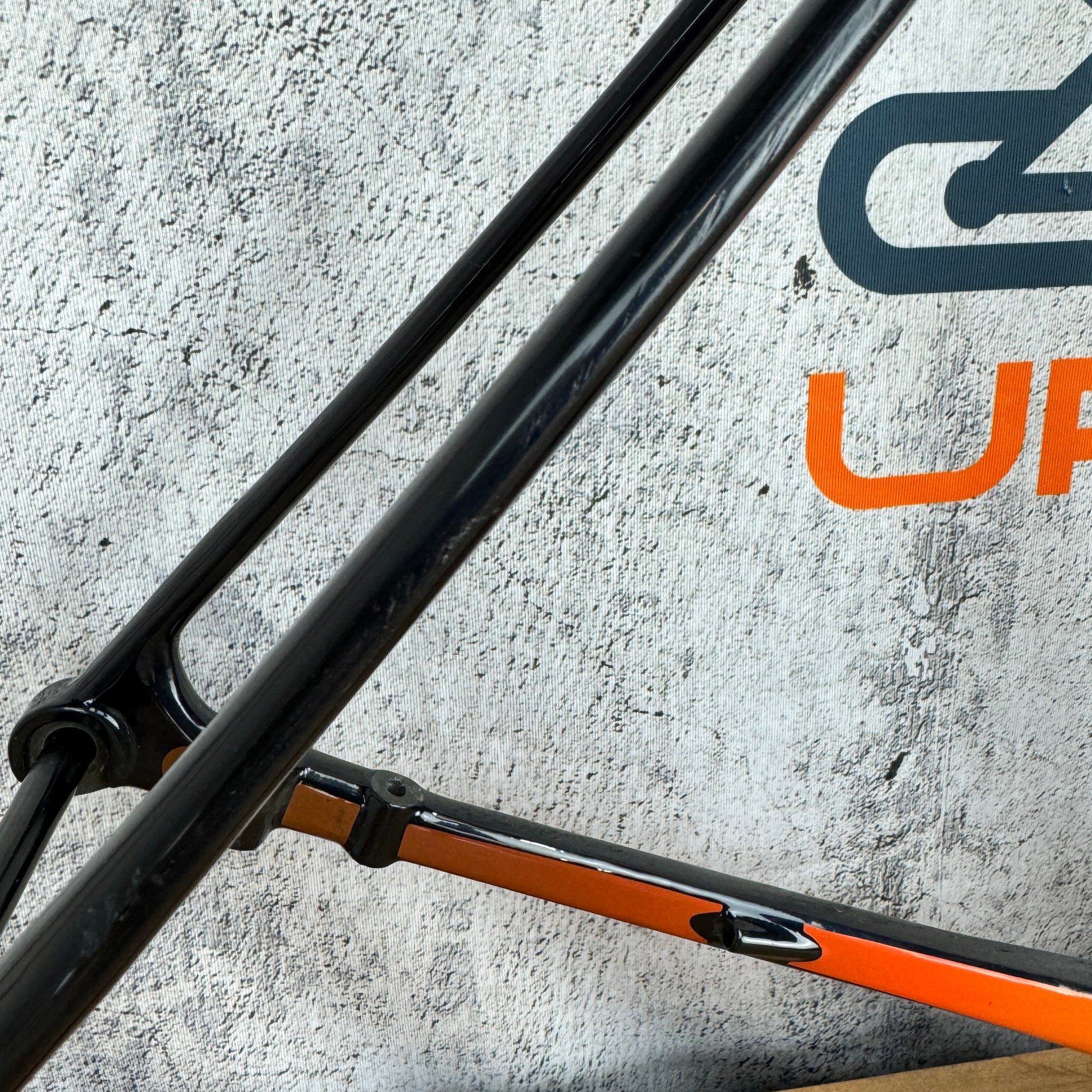

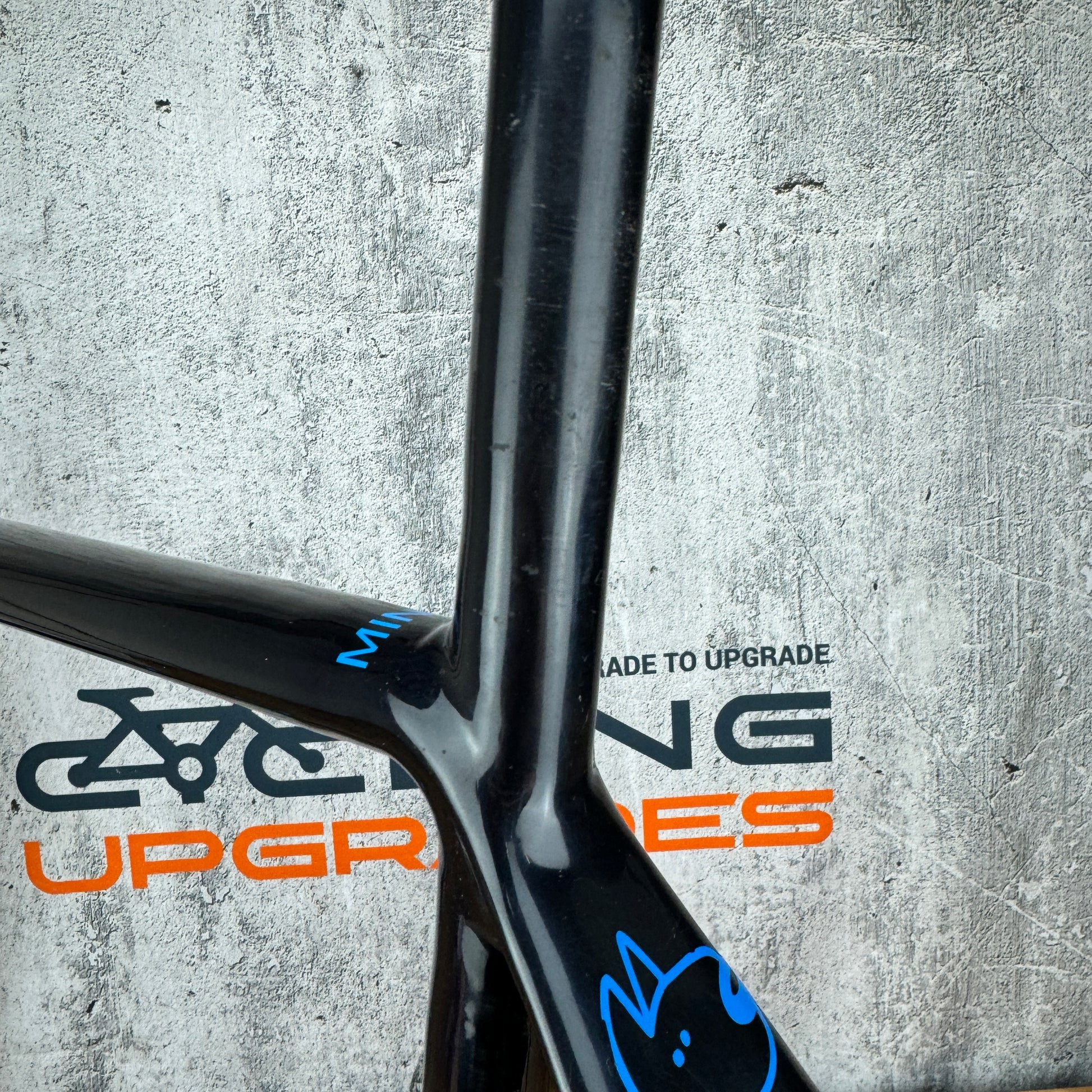

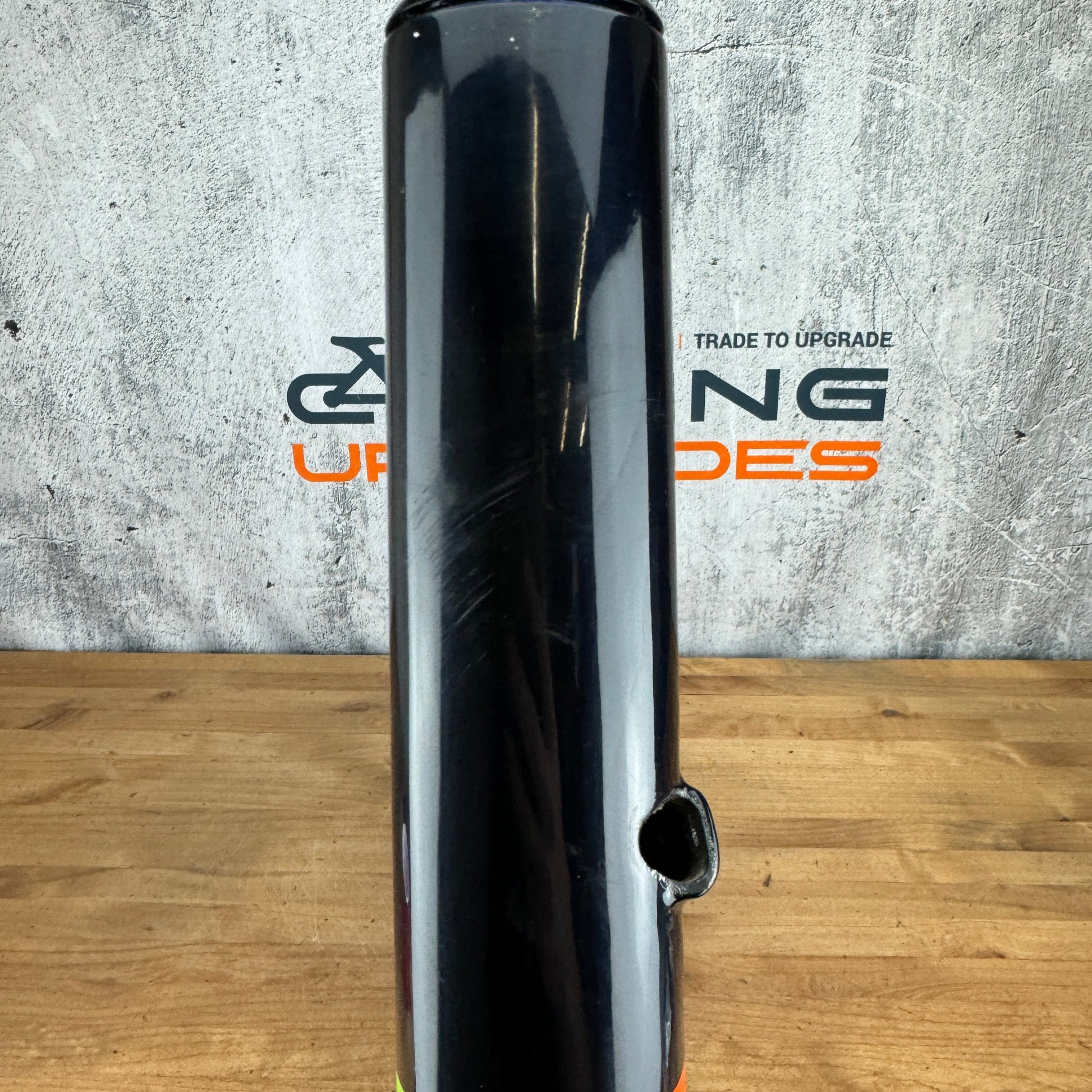

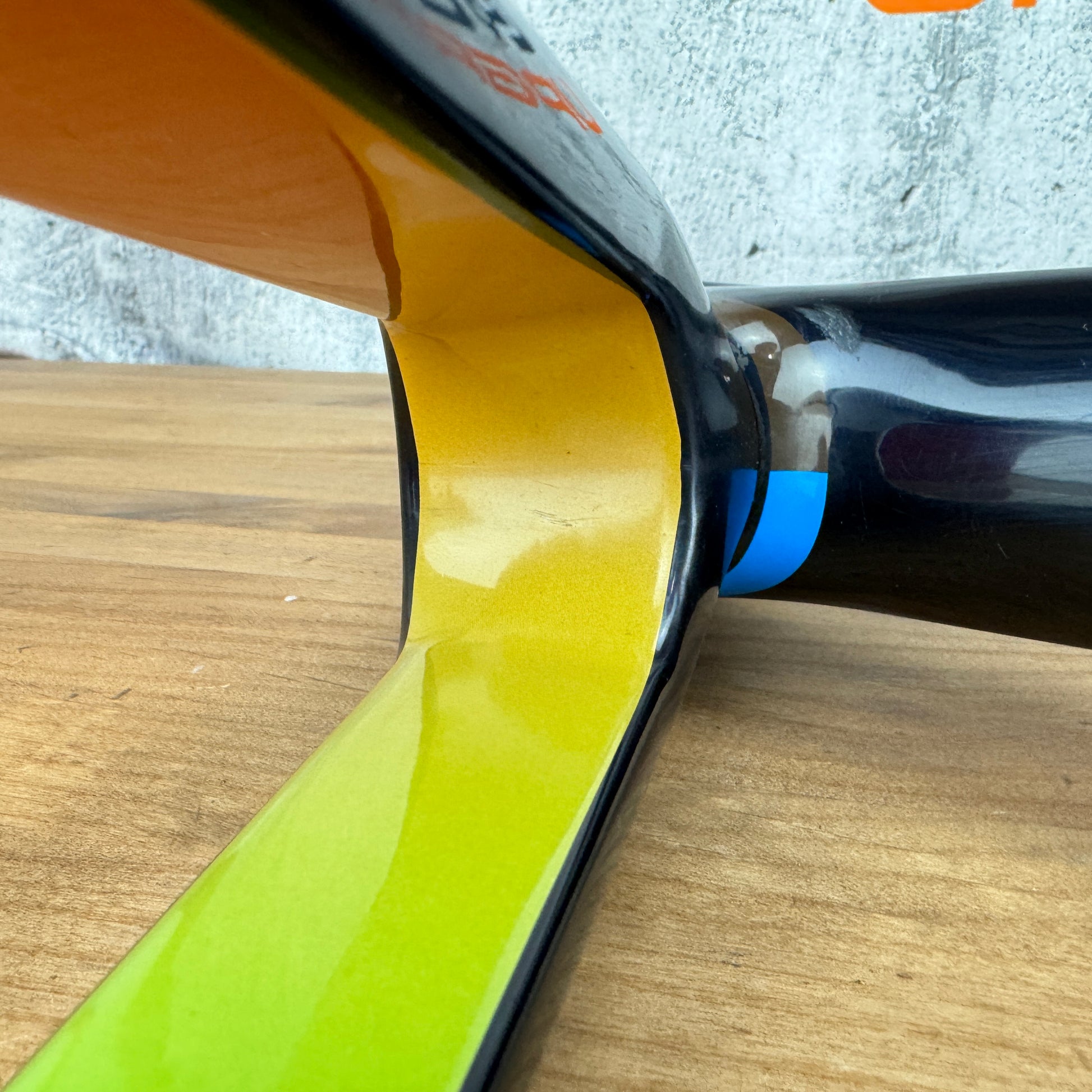

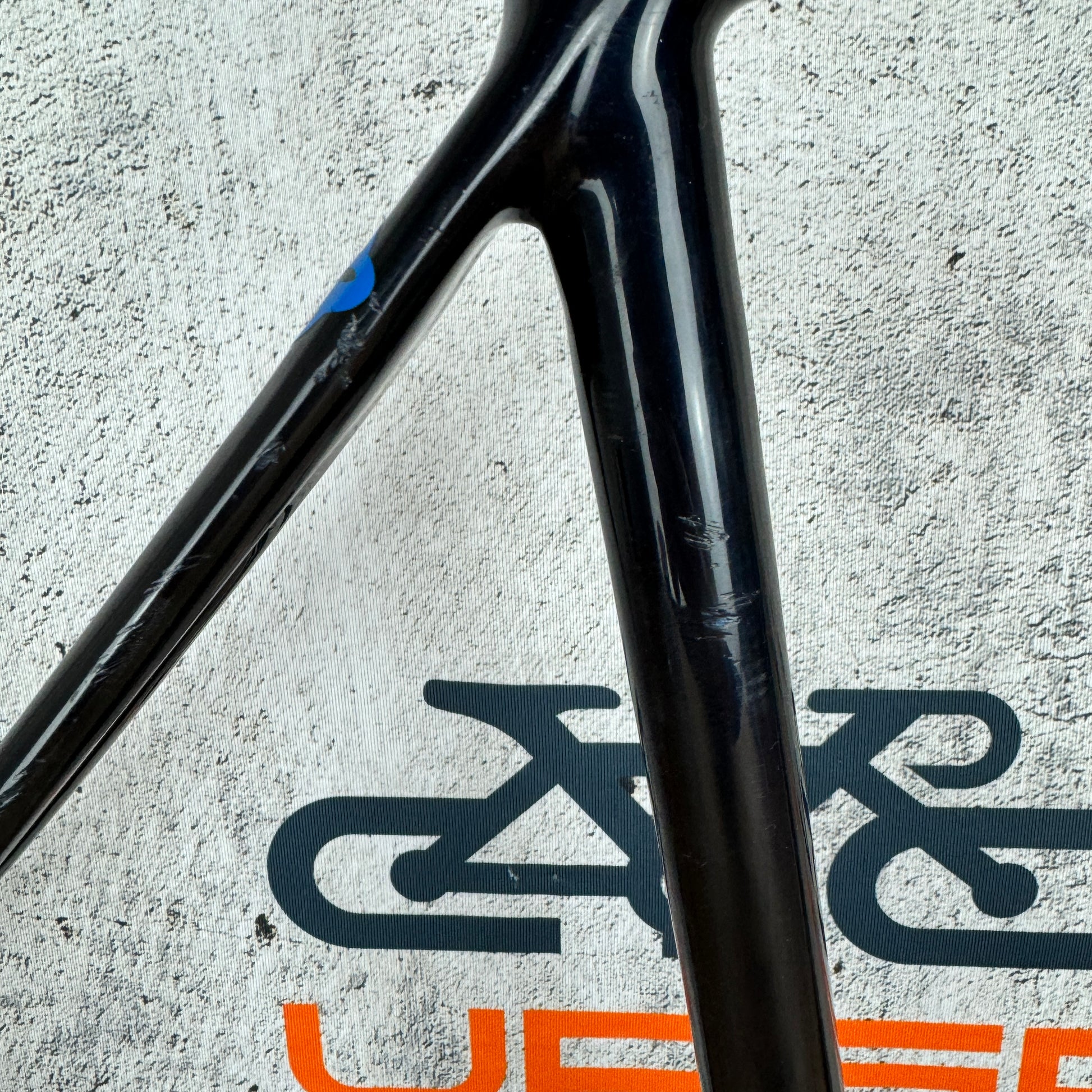

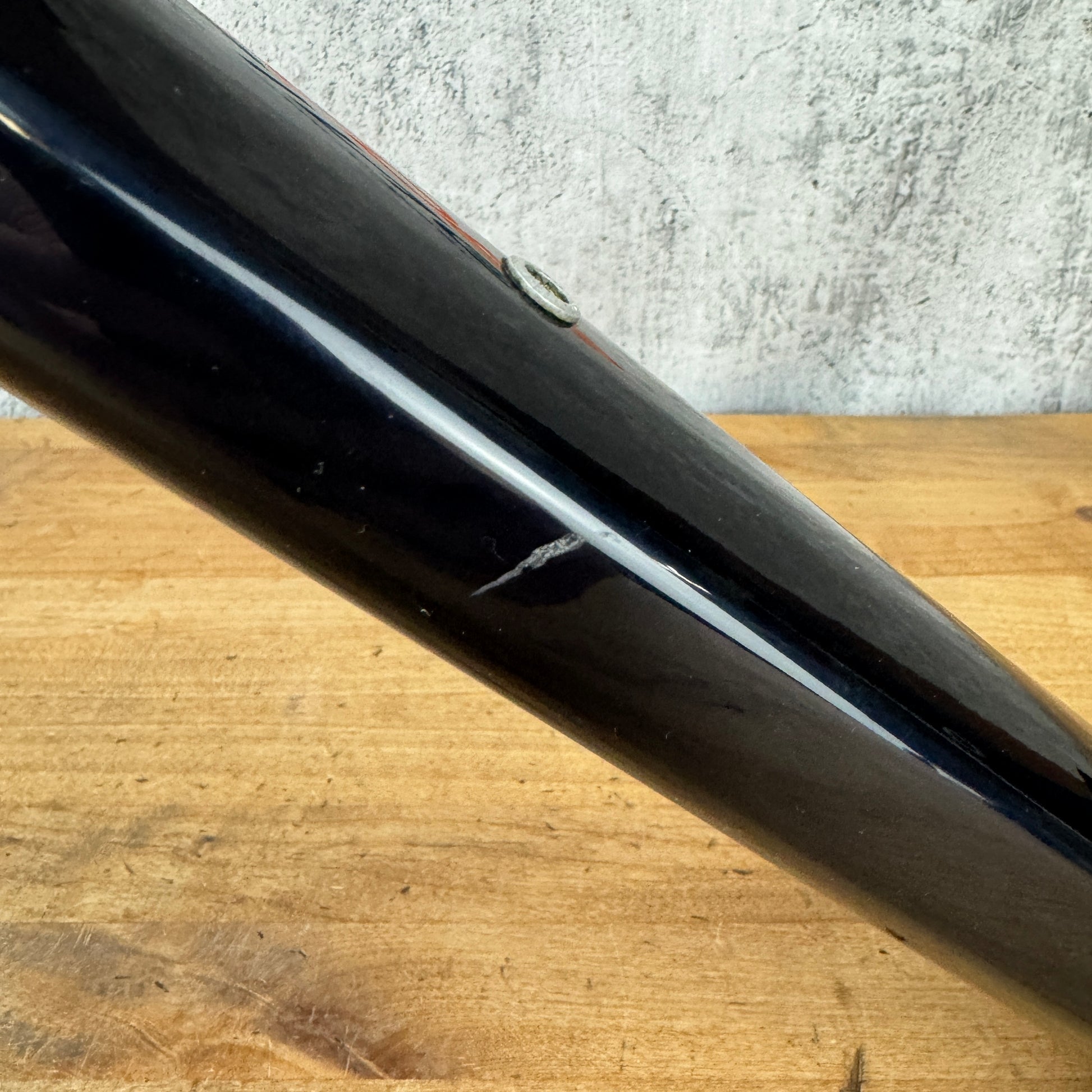

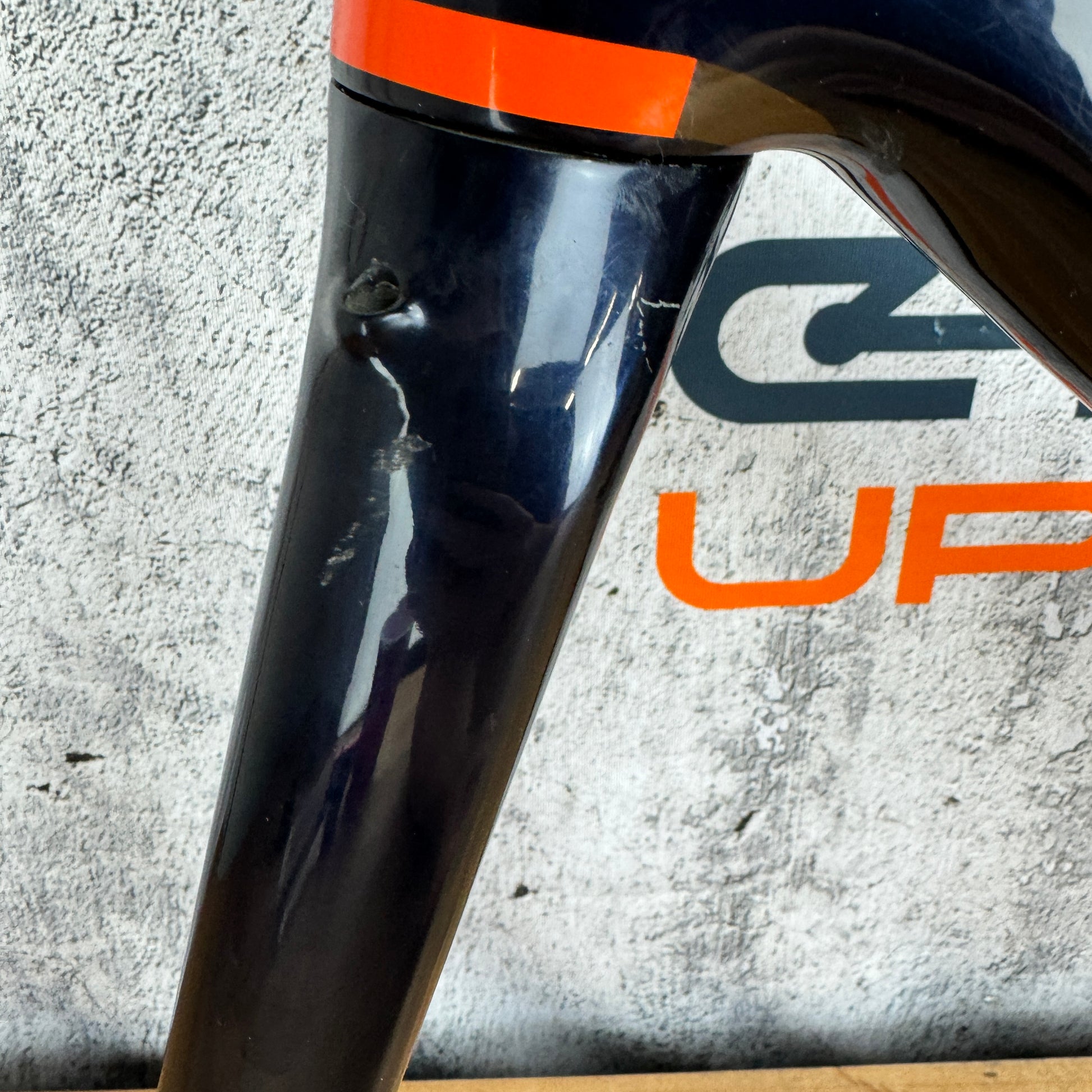

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: some scratches on the seatstays shown in pics #6 & 7, some cable rub wear on the head tube shown in pic #8, some scratches on the fork shown in pic #9, some scratches on the seat tube shown in pic #10 & 11, and a scratch on the down tube shown in pic #12. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset compatibility: Frame can be setup for Di2, EPS, eTap, or mechanical groupsets. This frame was previously setup with an eTap groupset. Other frame/cable stops may be needed for Di2 or mechanical setups.

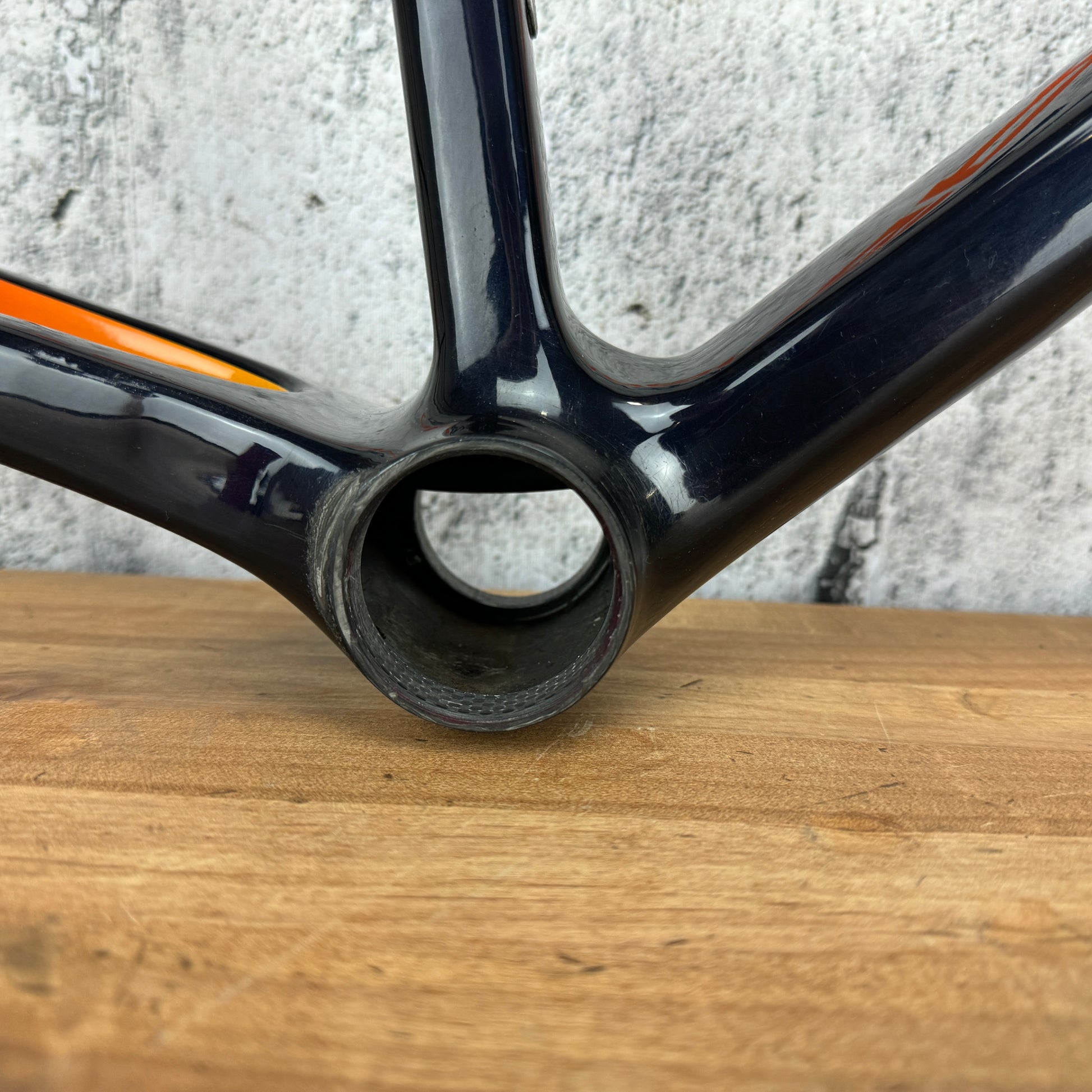

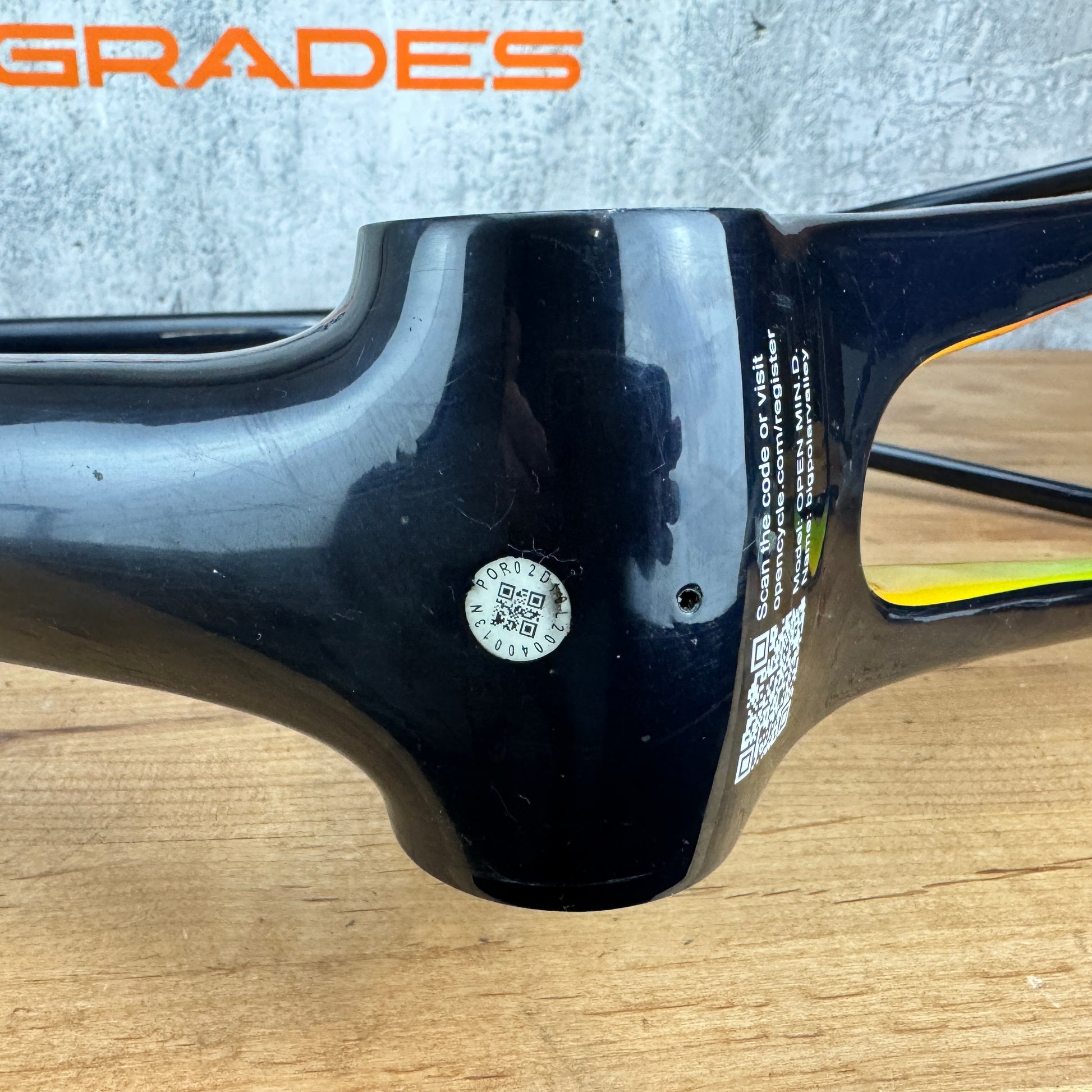

Bottom bracket: BB386EVO bottom bracket shell type (46mm shell diameter, 86mm shell width). No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

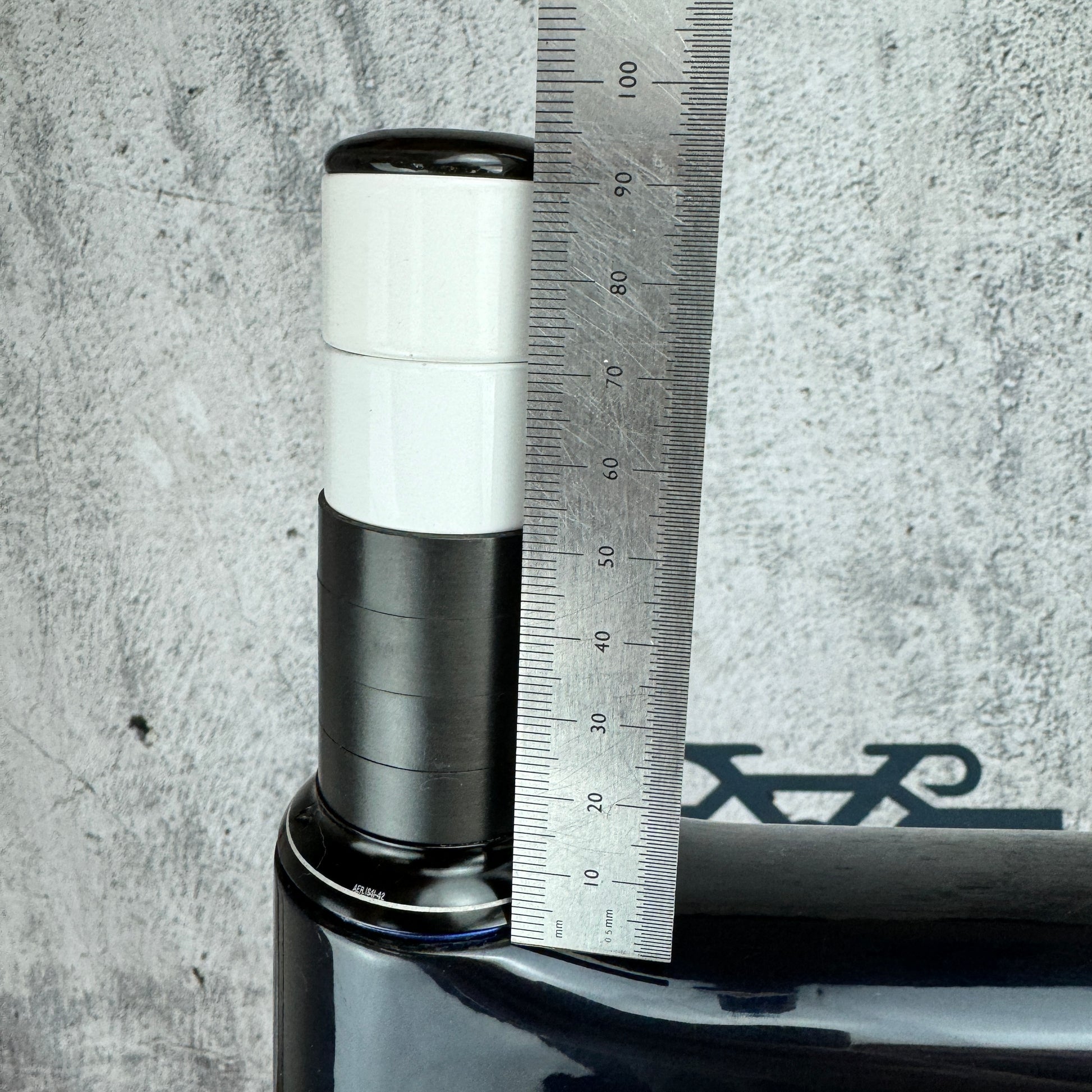

Steerer length: 85mm of steerer above the top tube. 40mm of spacers below the stem plus the headset cover. We do have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.

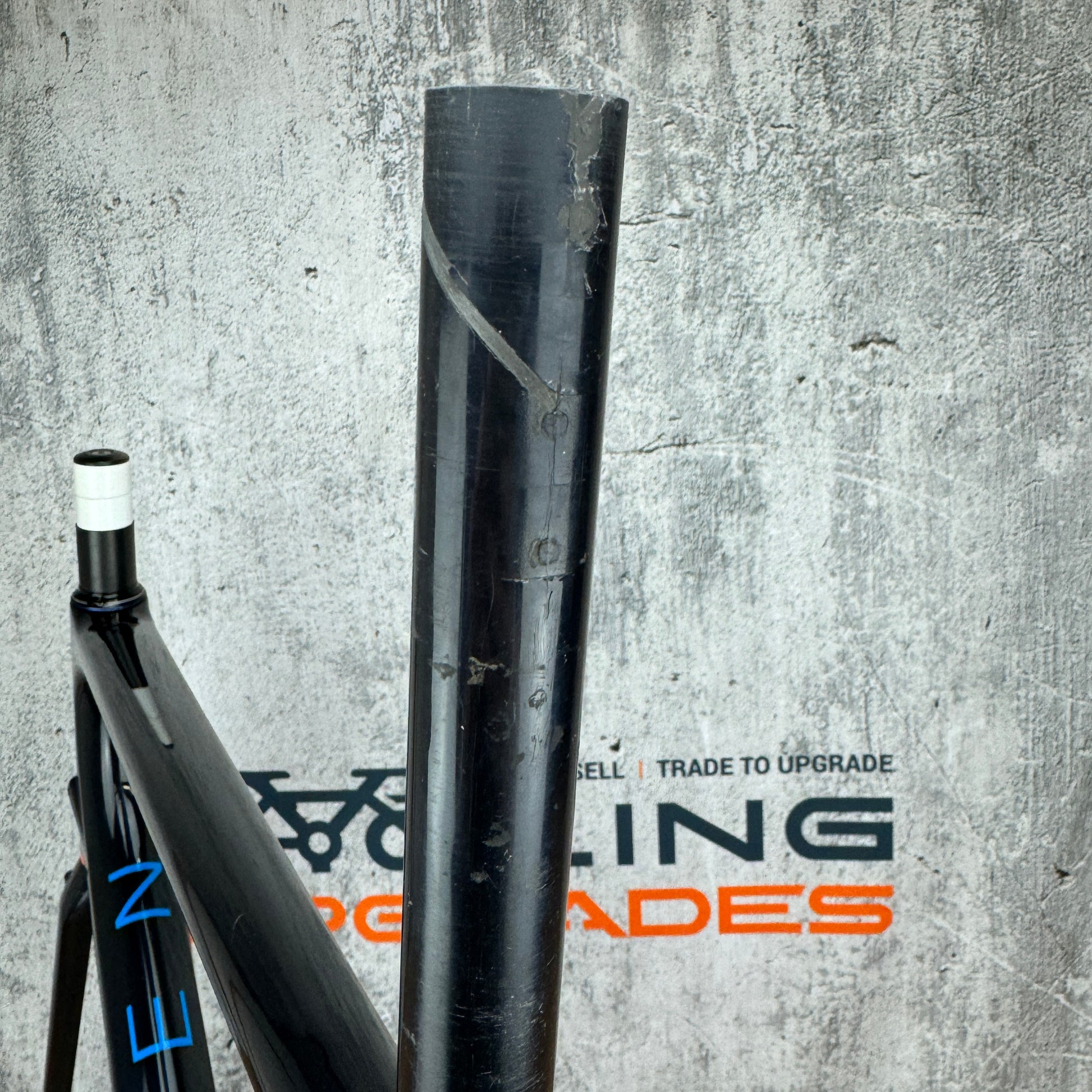

Seatpost: Seatmast height is 715mm from center of bottom bracket. The minimum height to saddle rails is 745mm, and the maximum height to the saddle rails is 770mm. Add your saddle stack height to determine max saddle height from center of bottom bracket. Seatmast cap included.
Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.
Weight: 1418 grams as pictured with headset, thru axles, seatmast cap, frame hardware, etc.
What's included: Frame, fork, headset, rear derailleur hanger, seatmast cap, thru axles
