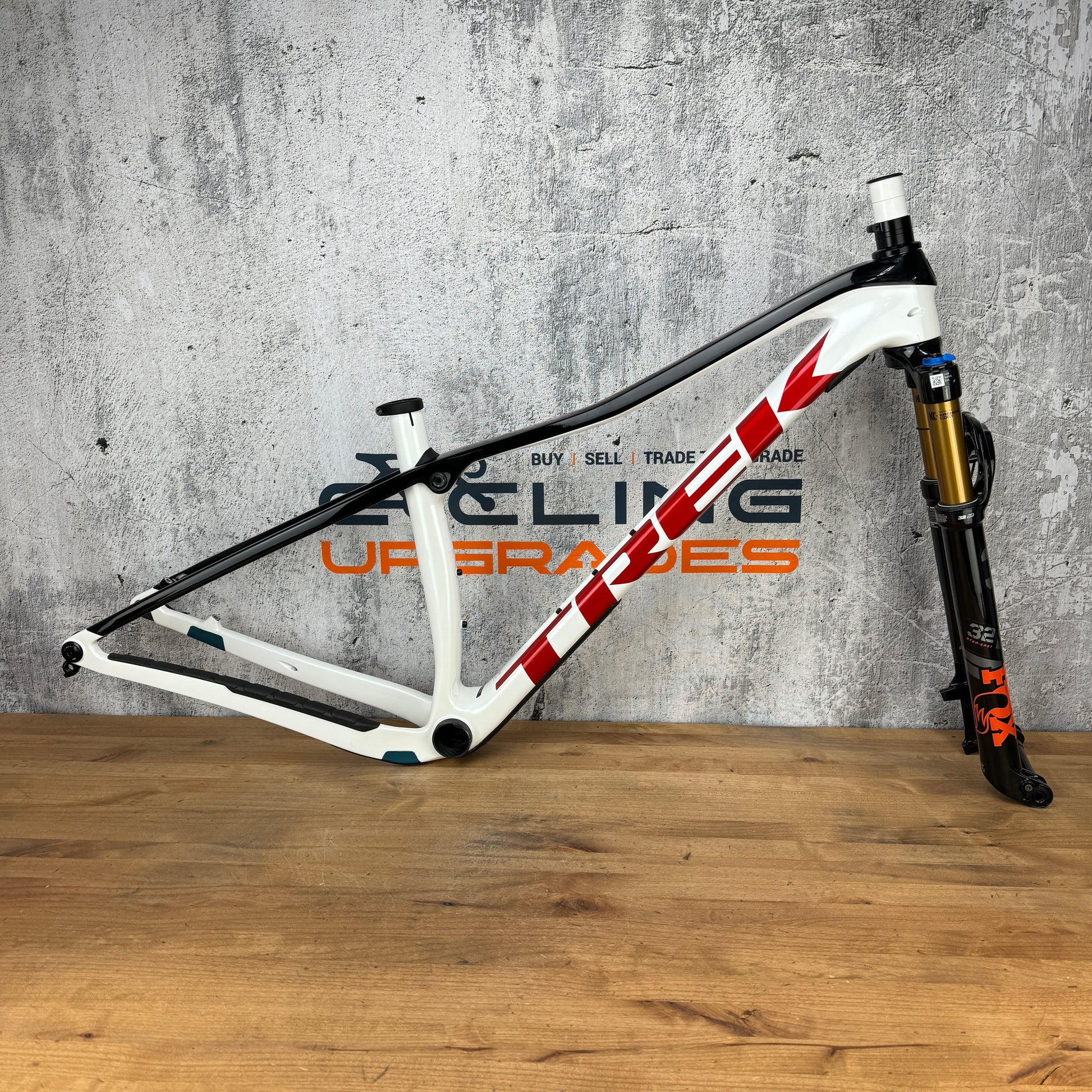

Frame: 2024 Trek Procaliber
Fork: 2022 Fox Factory Sc Series 32 Float 29" 100mm travel Fit4
Color: Crystal white / Trek black
Brake type: Post-Mount disc brake.
Size: Small. 570mm Effective Top Tube. Stack - 600mm. Reach - 395mm. Head tube 90mm. Recommend buyer confirm and research full geometry online.
Condition: This wheelset is in mint condition. There are no imperfections to specifically picture, only very minor imperfections and light signs of use may exist. Prior owner claims only 20 miles on this frameset.
Groupset compatibility: This frameset is compatible with mechanical, or eTap groupsets.

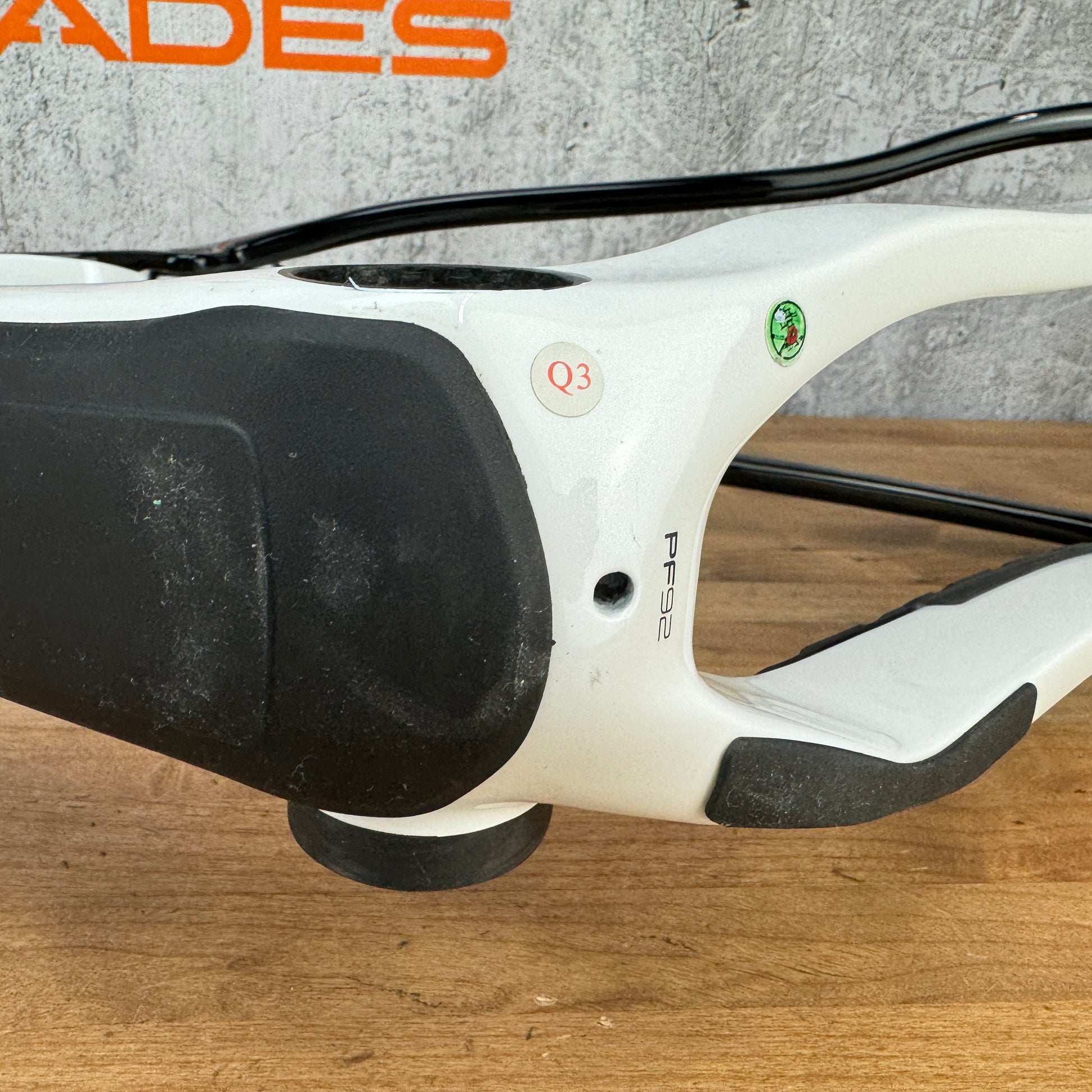

Bottom bracket: Pressfit PF92 bottom bracket shell type (41mm shell diameter, 92mm shell width). No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.
Steerer length: 70mm of steerer above the top tube. 25mm of spacers below the stem plus the headset cover. We do have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.
Seatpost: 31.6mm diameter. No seatpost included.
Dropout Spacing: Front 15mm Thru Axle x 110mm, Rear 12mm Thru Axle x 148mm.
Weight: 3141 grams as pictured with fork, headset, thru axles, frame hardware, etc.
What's included: Frame, fork, headset, rear derailleur hanger, thru axles
At CyclingUpgrades, we fulfill all orders next business day or sooner. Generally we are able to fulfill orders placed by 12pm MT on the same day, however it is not guaranteed. We ship all items via USPS except for frames/wheels which ship via UPS or Fedex. Please check our other listings for additional cycling upgrades and thank you for shopping our store!
