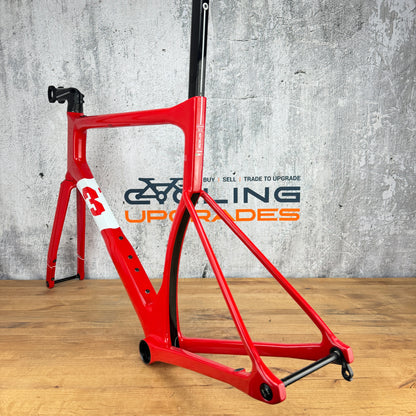

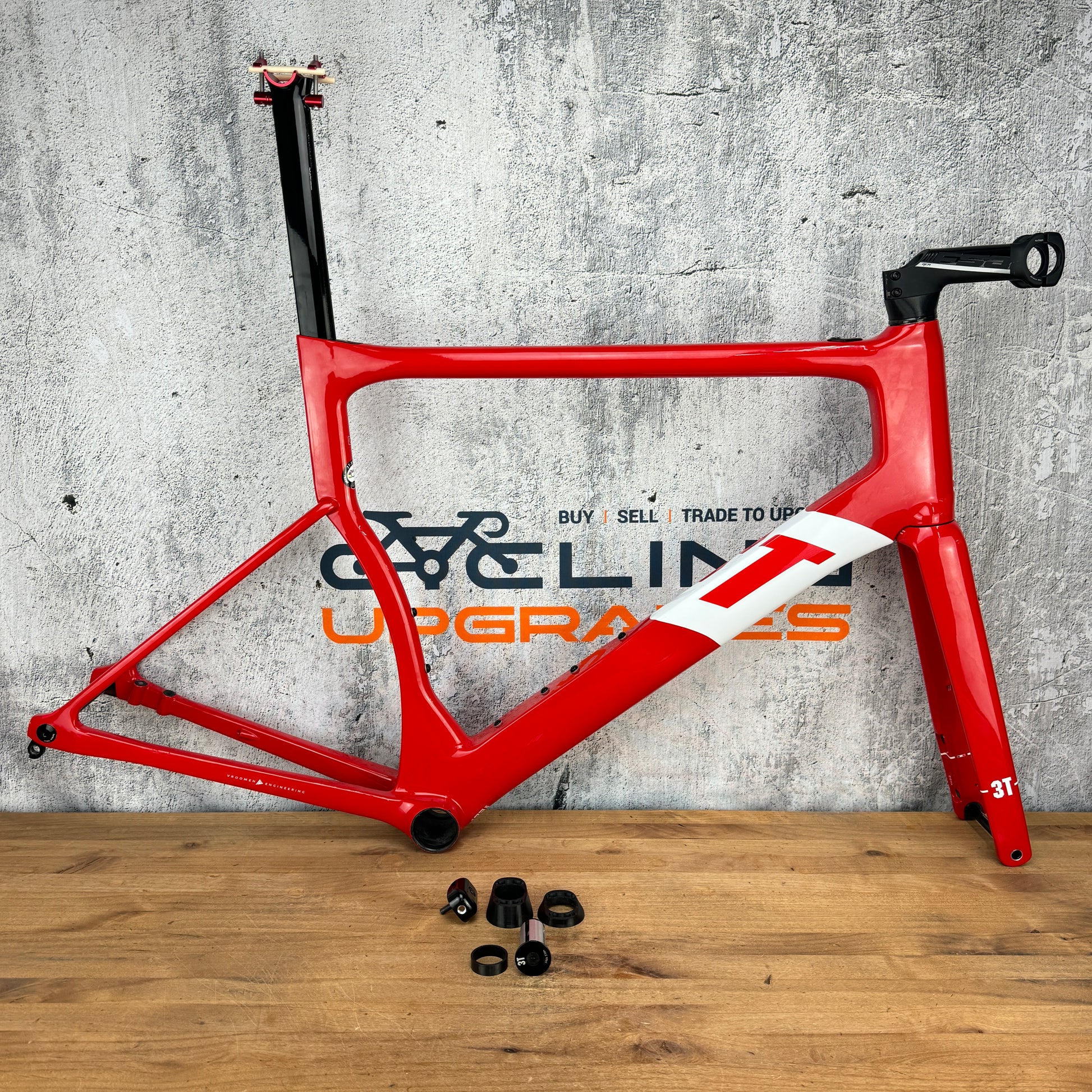

Frame: 3T Strada Team
Color: Red
Brake Type: Flat-Mount disc brake
Size: XL. 592mm Effective Top Tube. Stack - 594mm. Reach - 405mm. Head Tube 202mm. Recommend buyer confirm and research full geometry online.

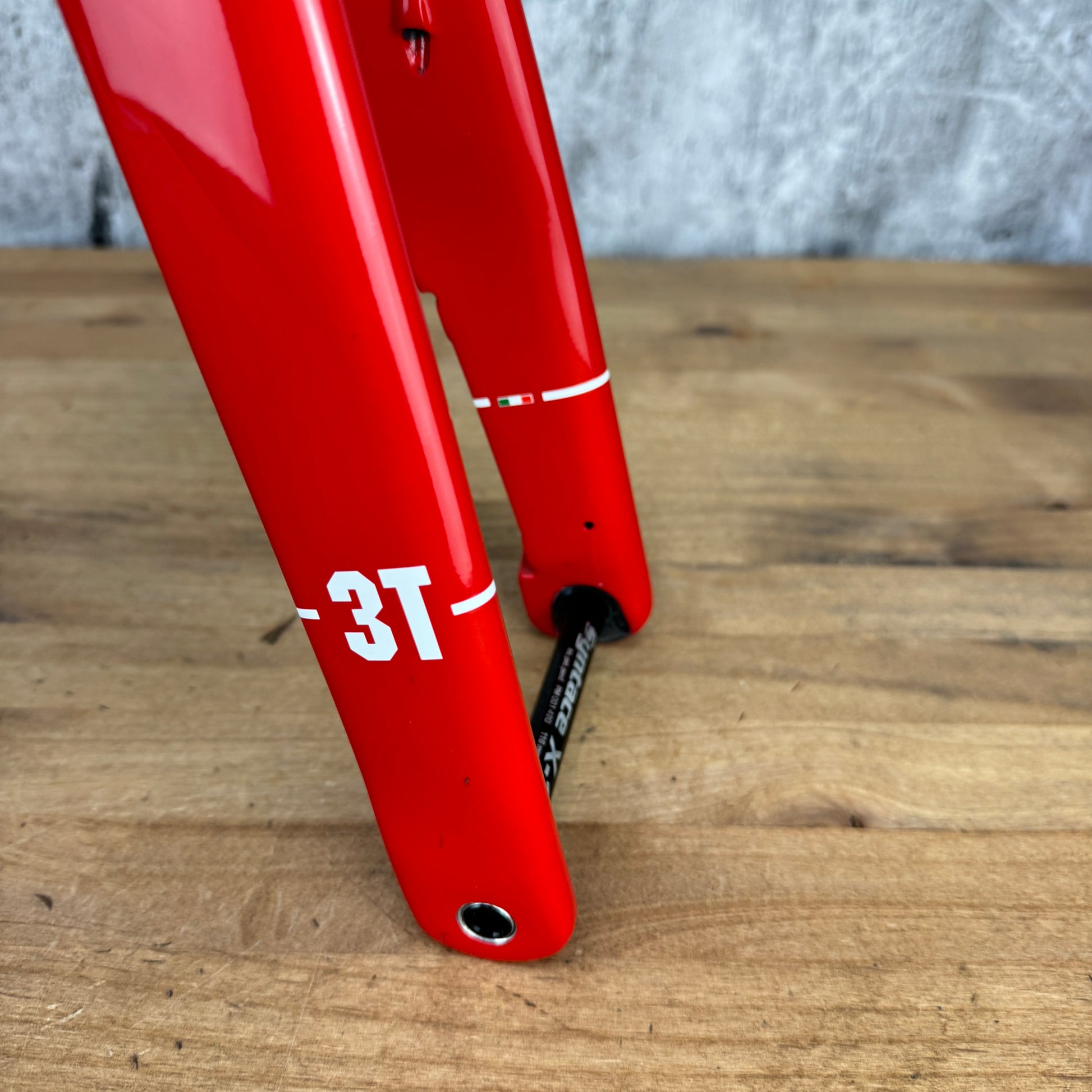

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: There is some light scuffing on the back of the seatpost, see picture 9. A couple of light chips in the paint can be seen on the fork and bottom of the bottom bracket, see pictures 14-15. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset Compatibility: Frame can be setup for Sram eTap, Shimano Di2, and Campagnolo EPS groupsets. This frame is not compatible with mechanical setups.

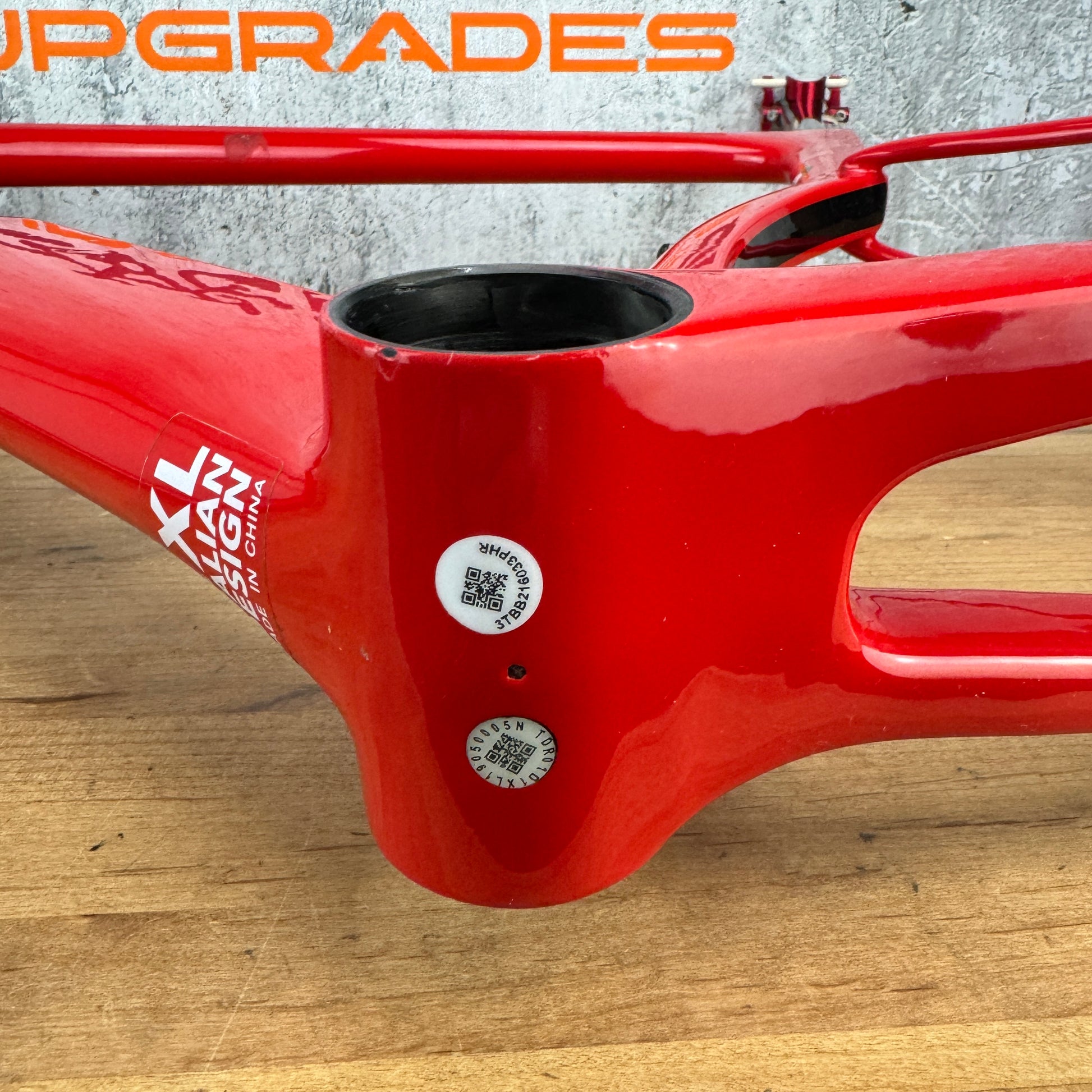

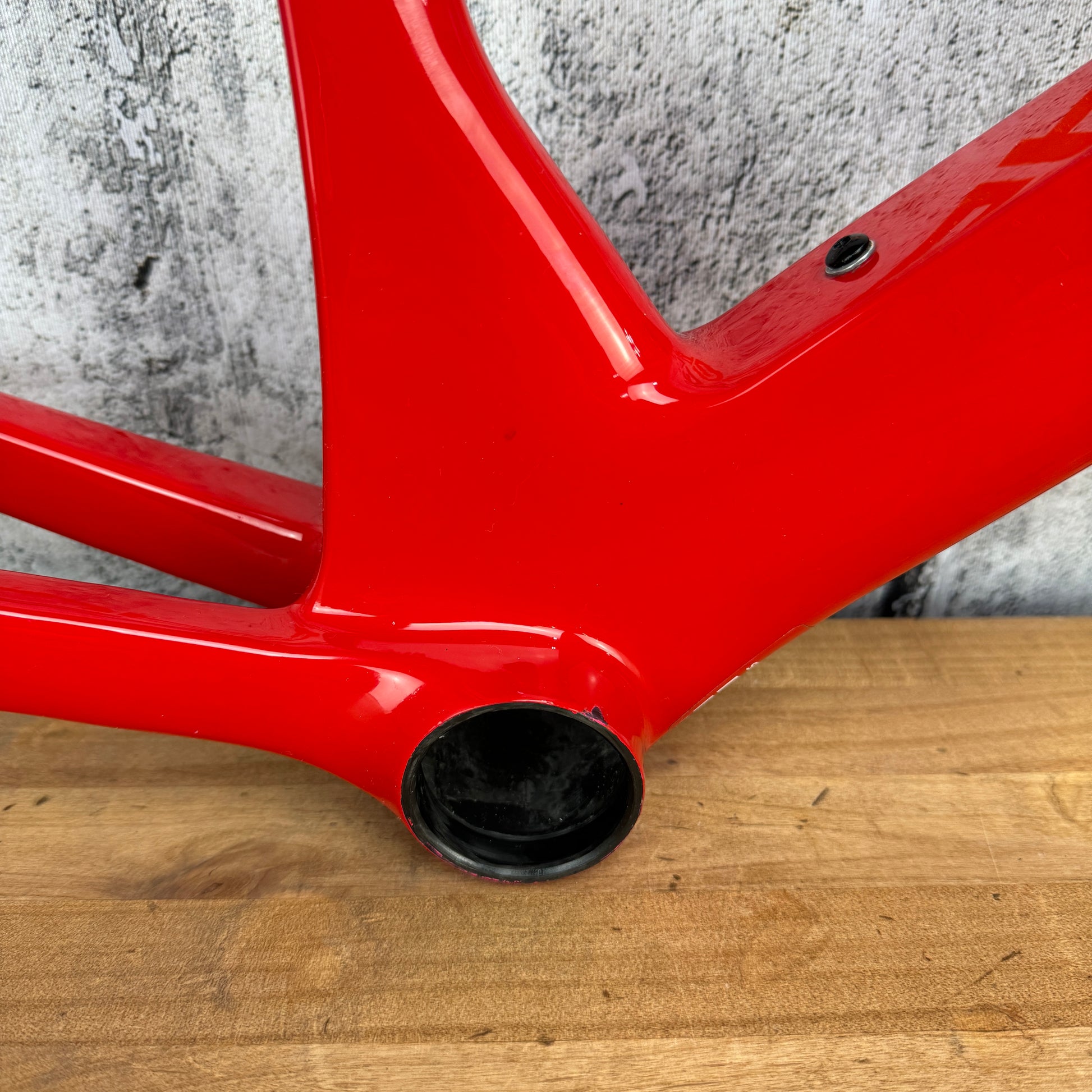

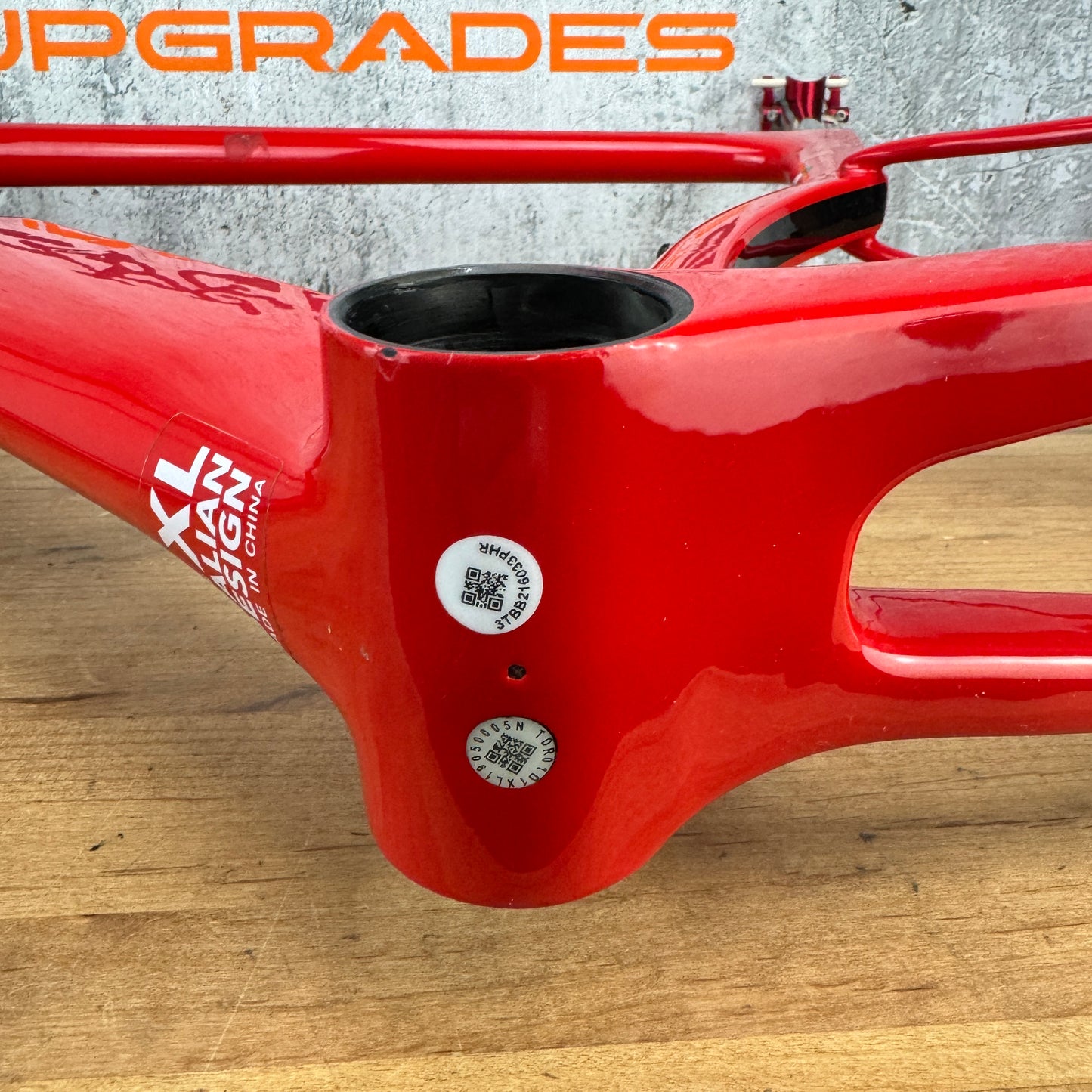

Bottom bracket: 386EVO bottom bracket shell type (46mm shell diameter, 86mm shell width). No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Wheels Manufacturing, and a Ceramicspeed Authorized Dealer, if you prefer to have the frame setup with a certain Wheels Manufacturing, or Ceramicspeed bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.
Steerer: 55mm of steerer above the top tube. 10mm of spacers below the stem plus the headset cover. We do have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.

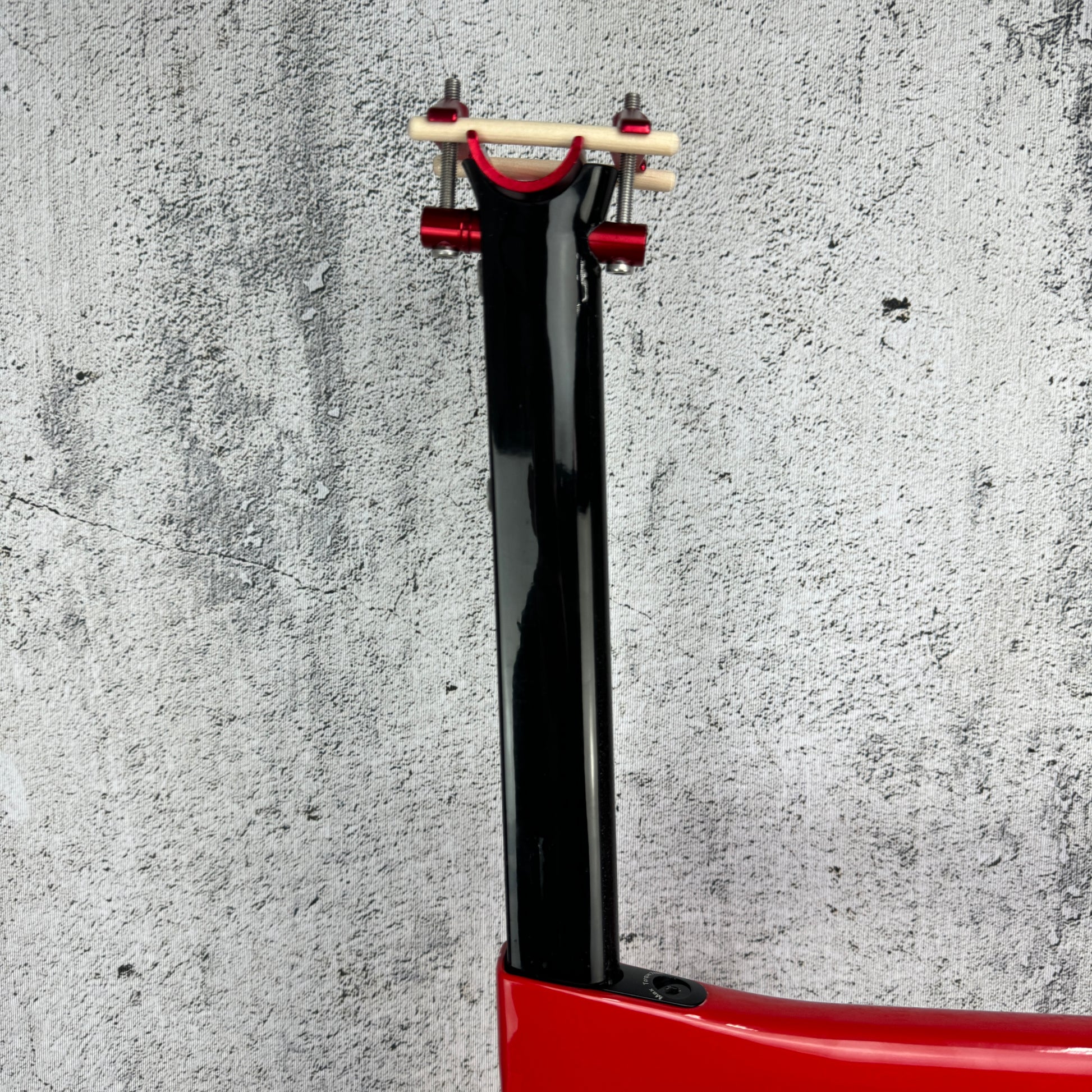

Seatpost: 3T Strada seatpost included
Stem: FSA ACR 120mm stem included.

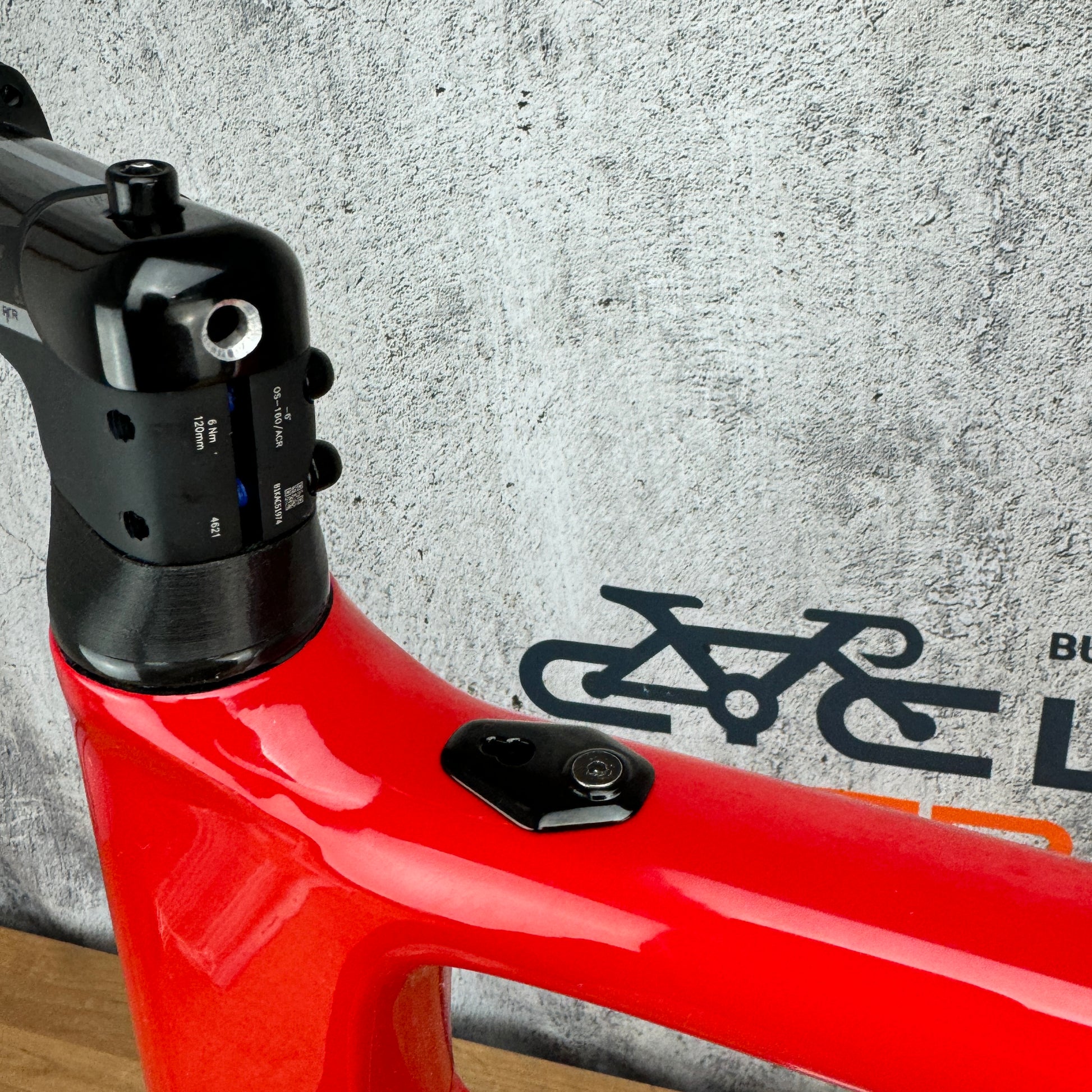

Cable Routing: A special compression plug allows for the front brake line to route through the stem and through the steerer tube to the front brake caliper. There is a hole drilled in the stem cap which allows for the rear brake line to be routed from the Top tube through the stem. See Pictures #16-18 for visual representation.
Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.
Weight: 2210 grams as pictured.

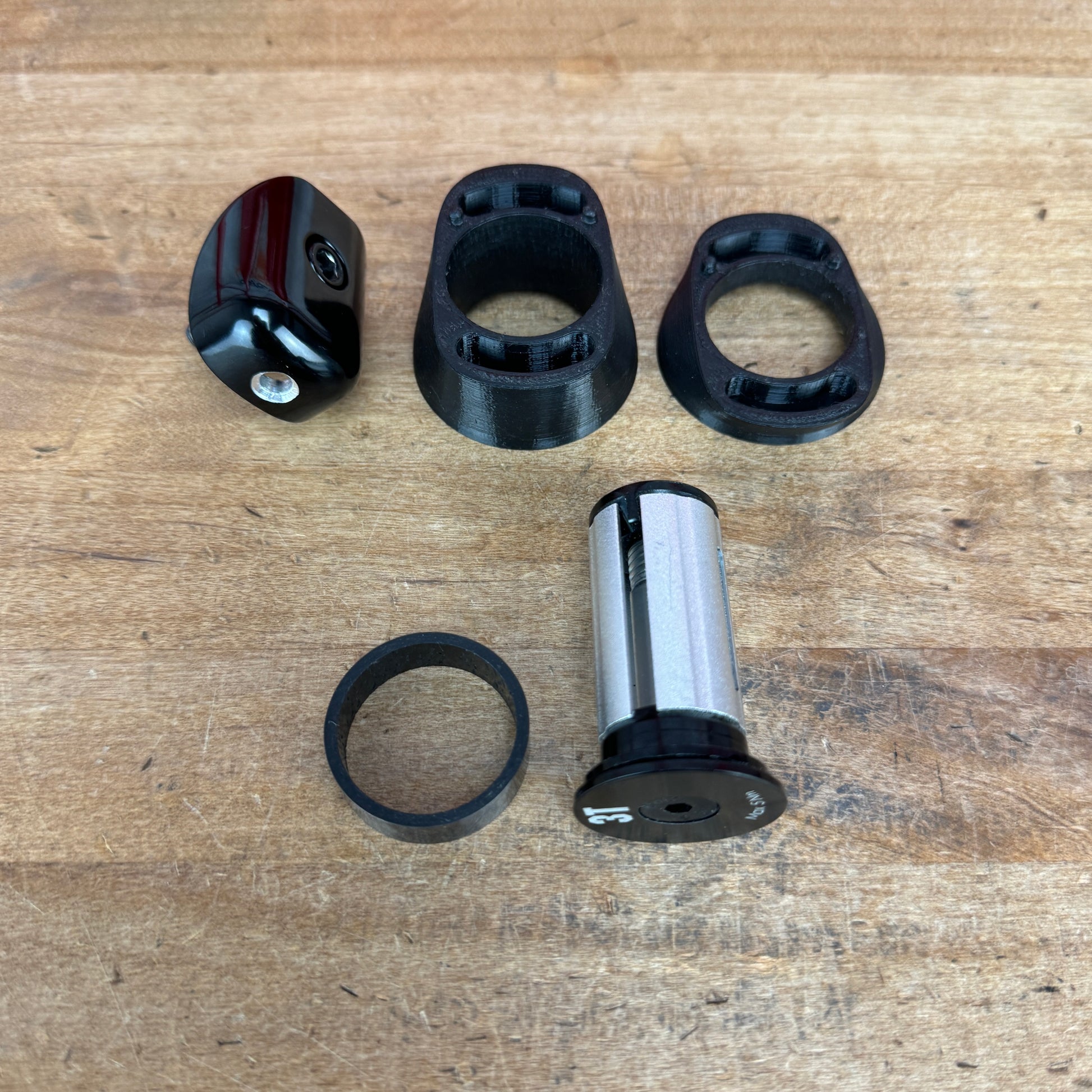

What's included: Frame, fork, headset, seatpost, stem, rear derailleur hanger, thru axles, extra headset spacers, and compression plug.
