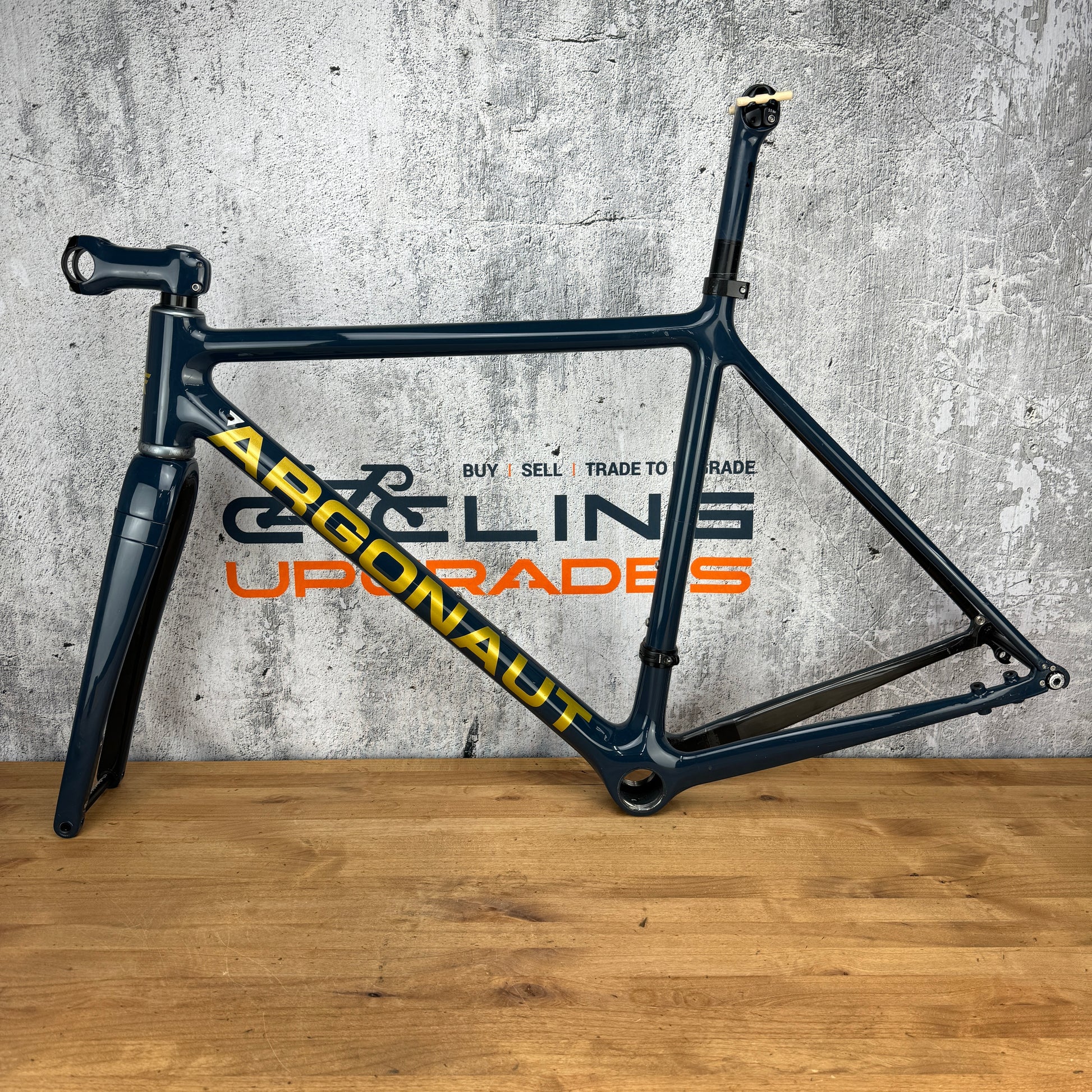

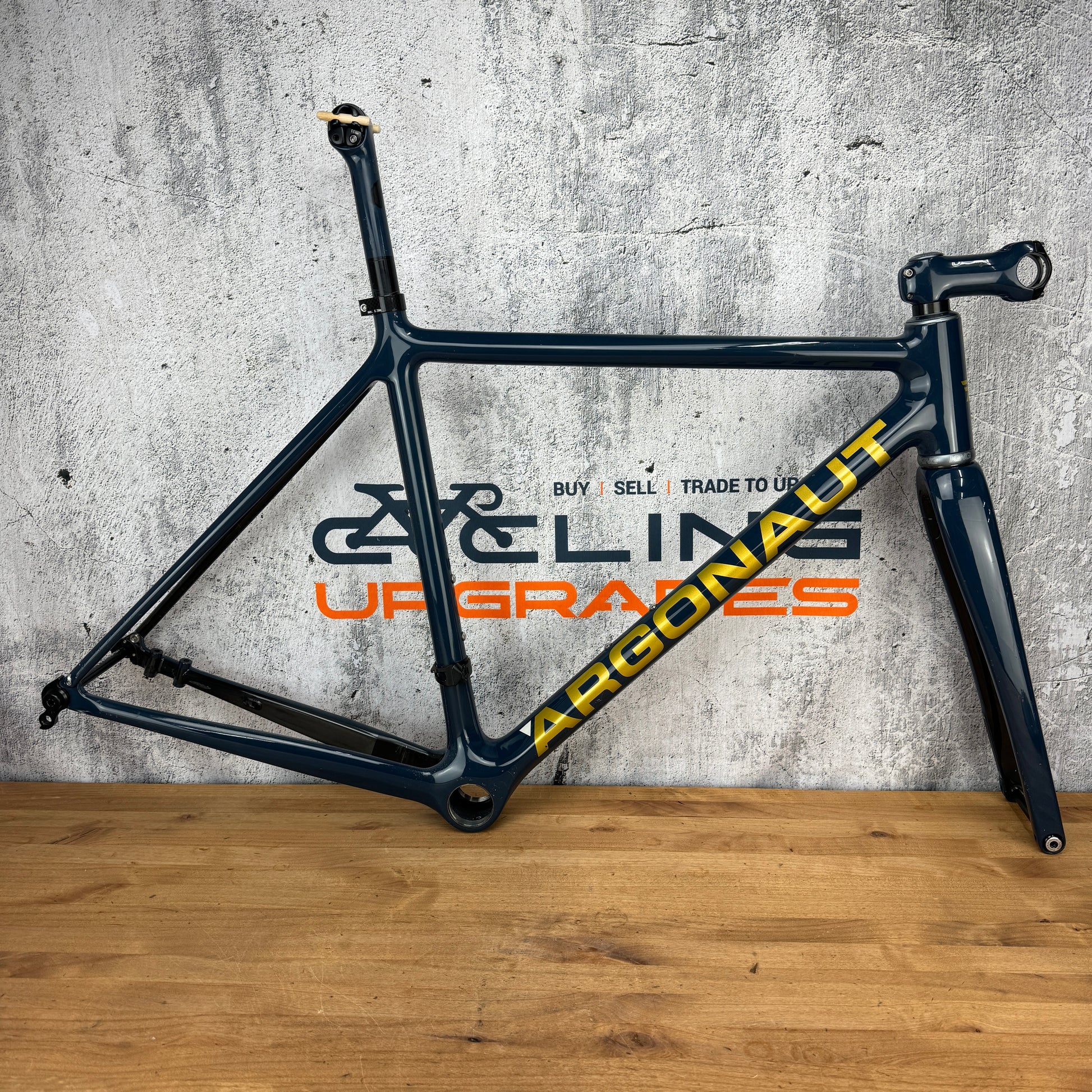

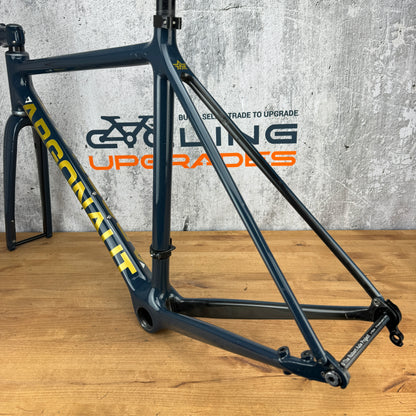

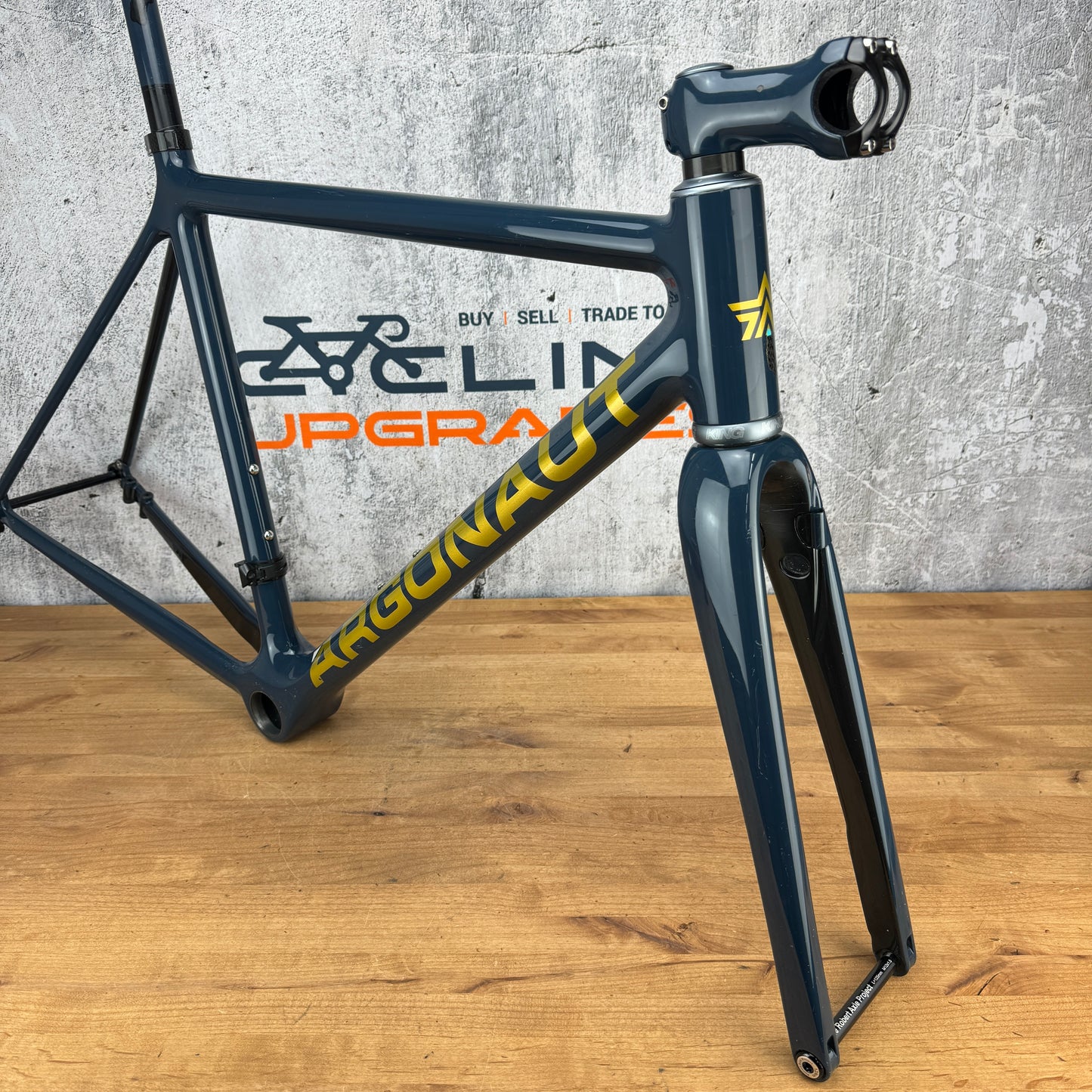

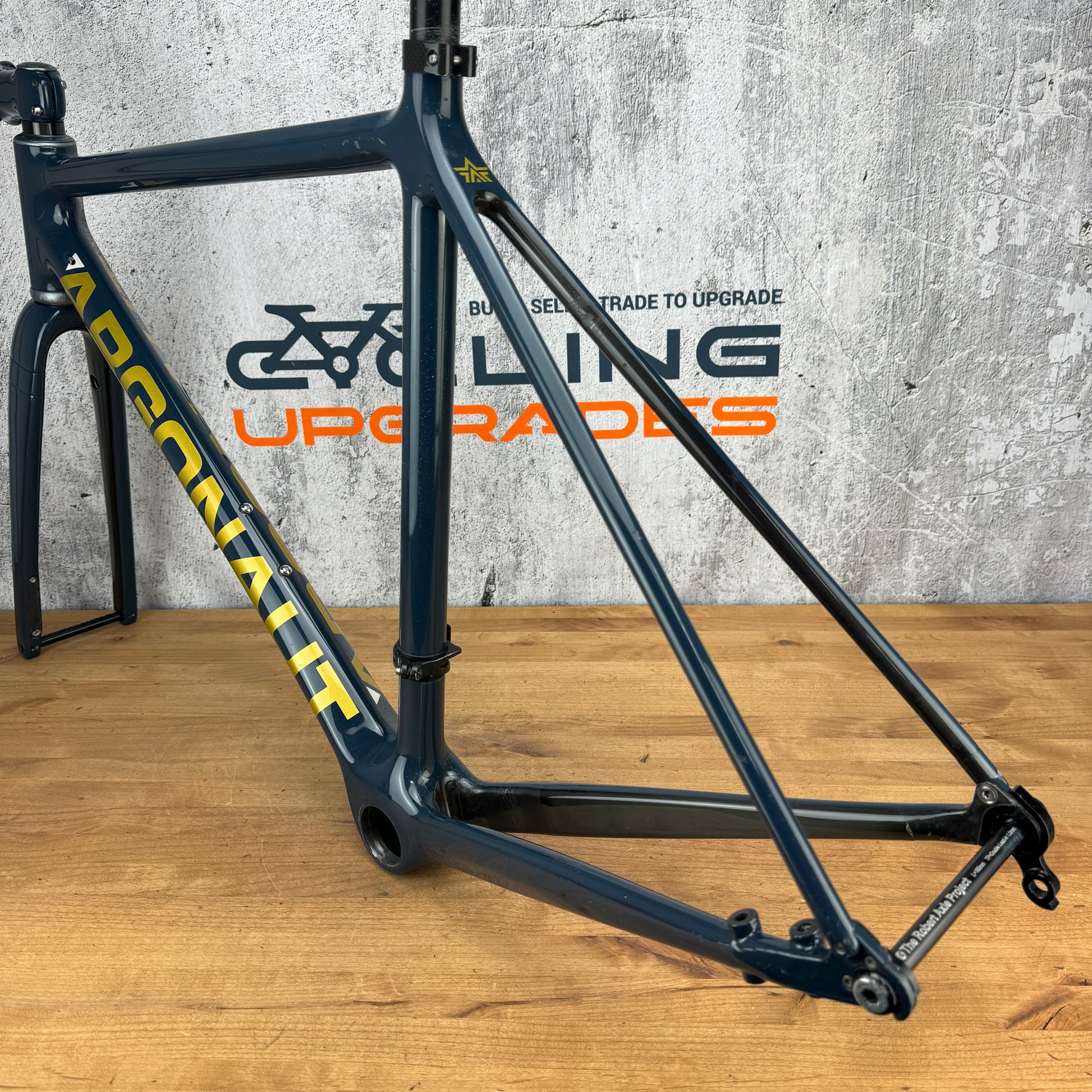

Frame: Argonaut GR2
Color: Blue
Tire Clearance: 700c x 38mm
Brake type: Flat-Mount disc brake.

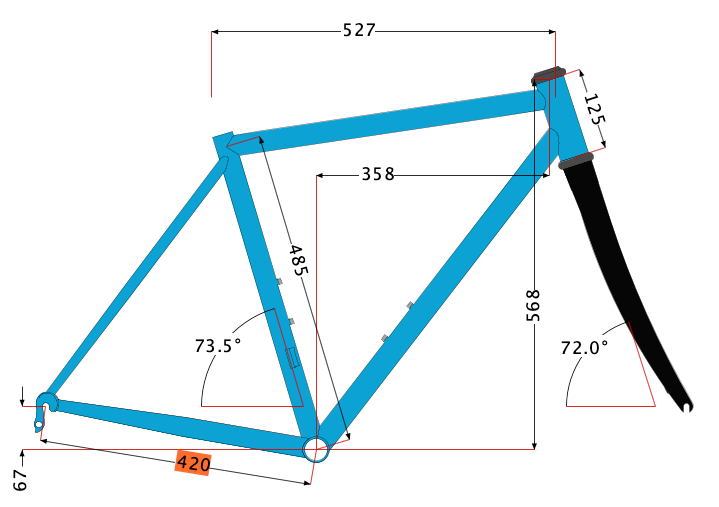

Size: 53cm. 527mm Effective Top Tube. Stack - 568mm. Reach - 358mm. Head tube 125mm. As we were not able to obtain a copy of the original geometry chart for this frame, CyclingUpgrades reverse engineered a geometry chart using a combination of measurements obtained from setting the frame in a Benchmark Tooling frame building fixture and manual measurements taken by hand. A copy of this geometry chart is shown in the last listing photo.

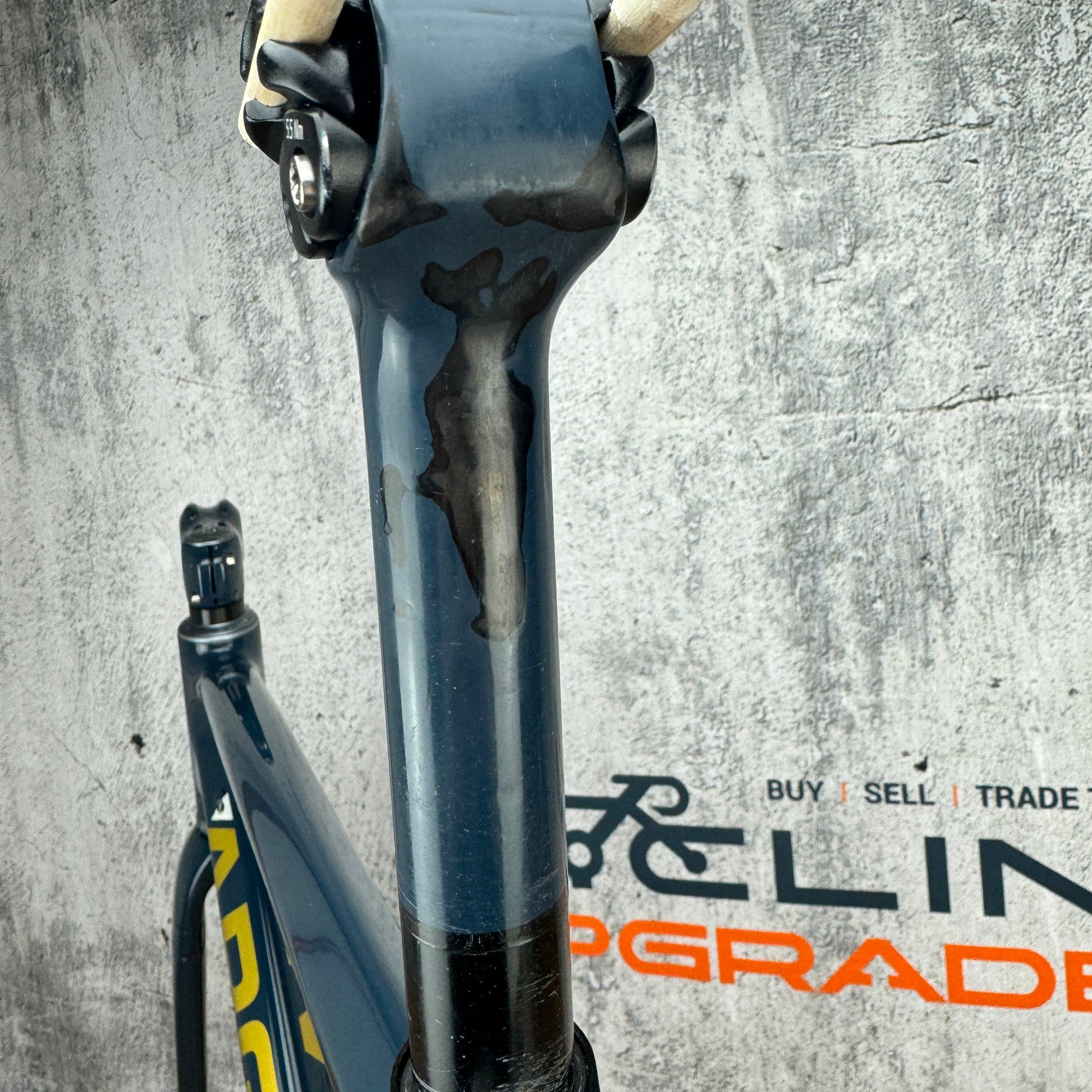

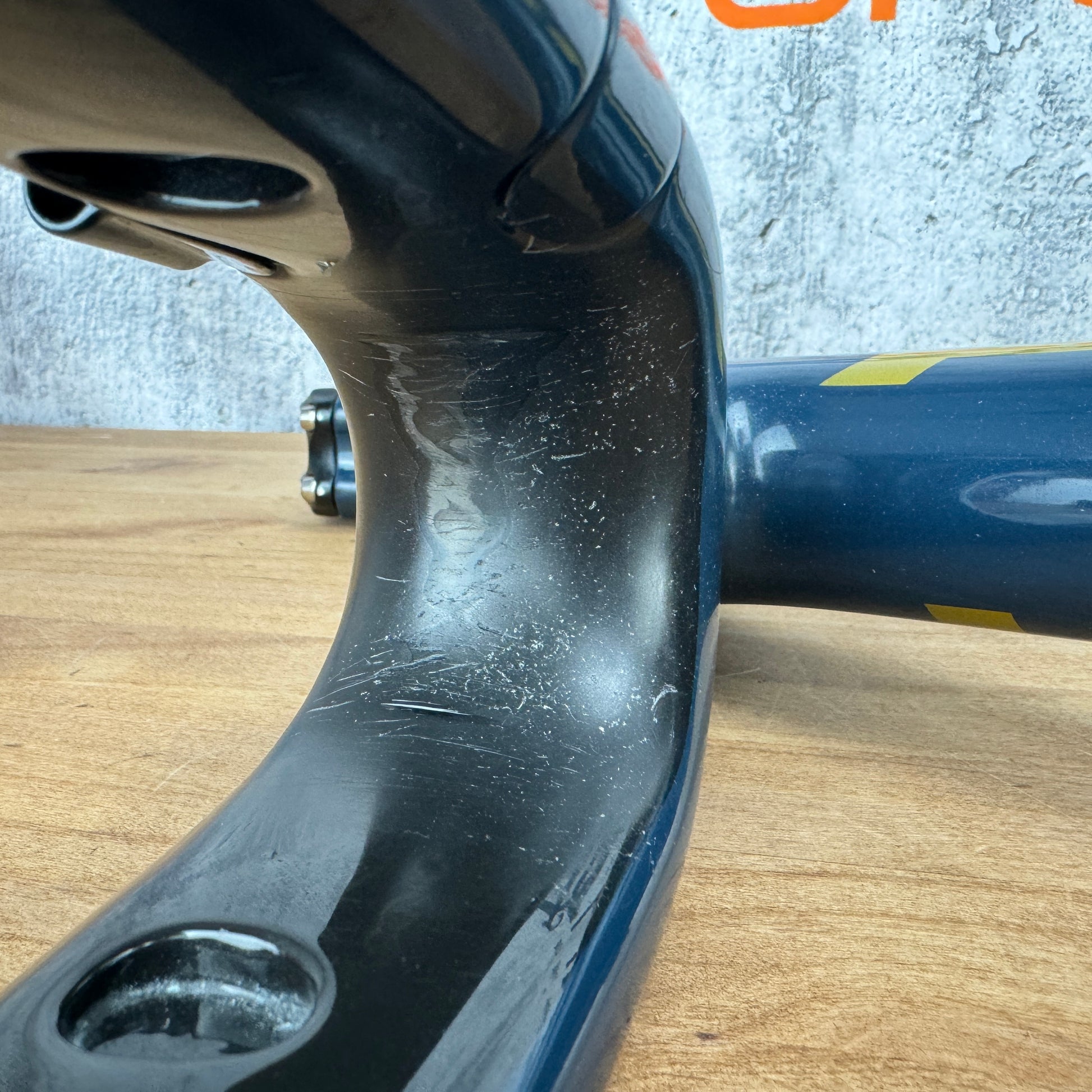

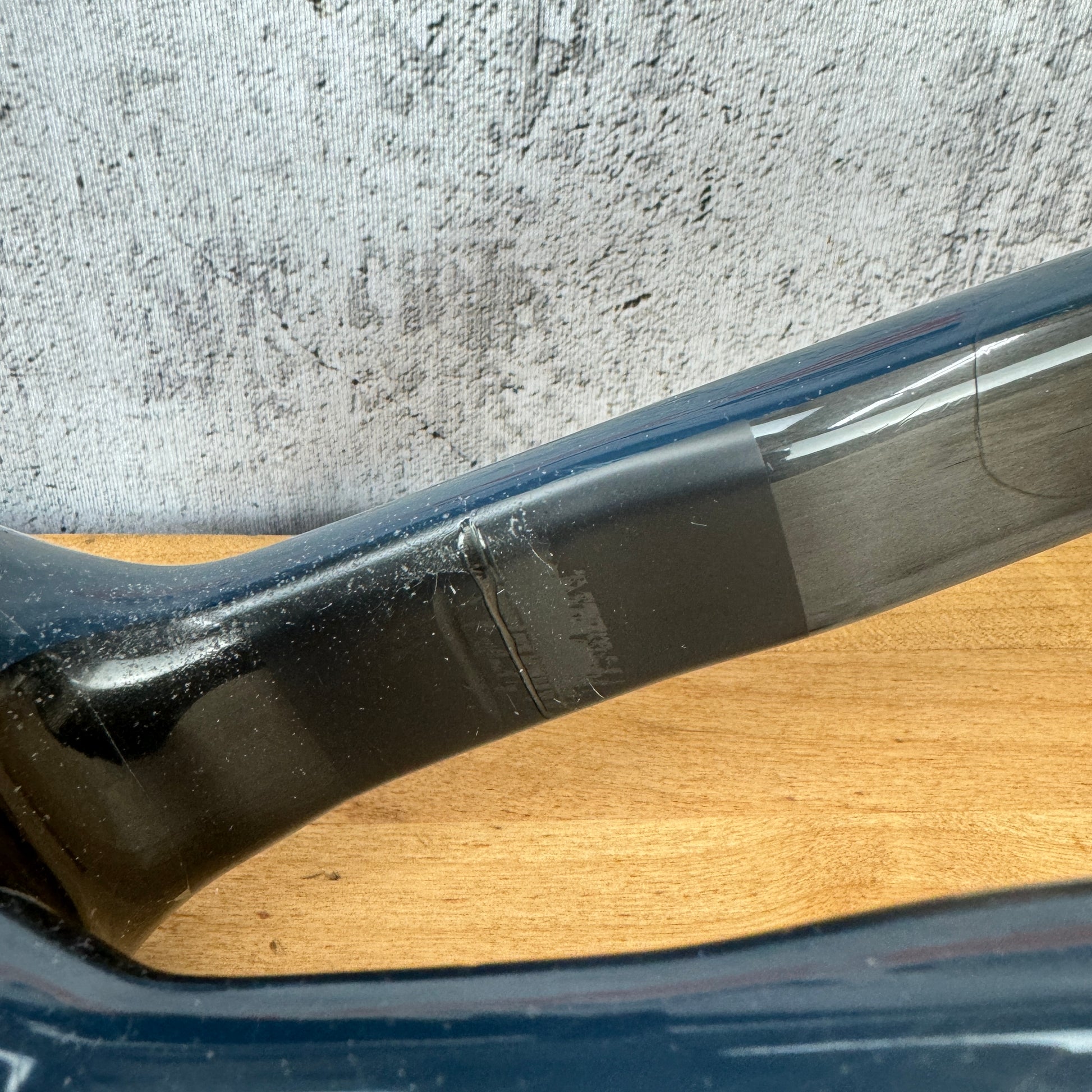

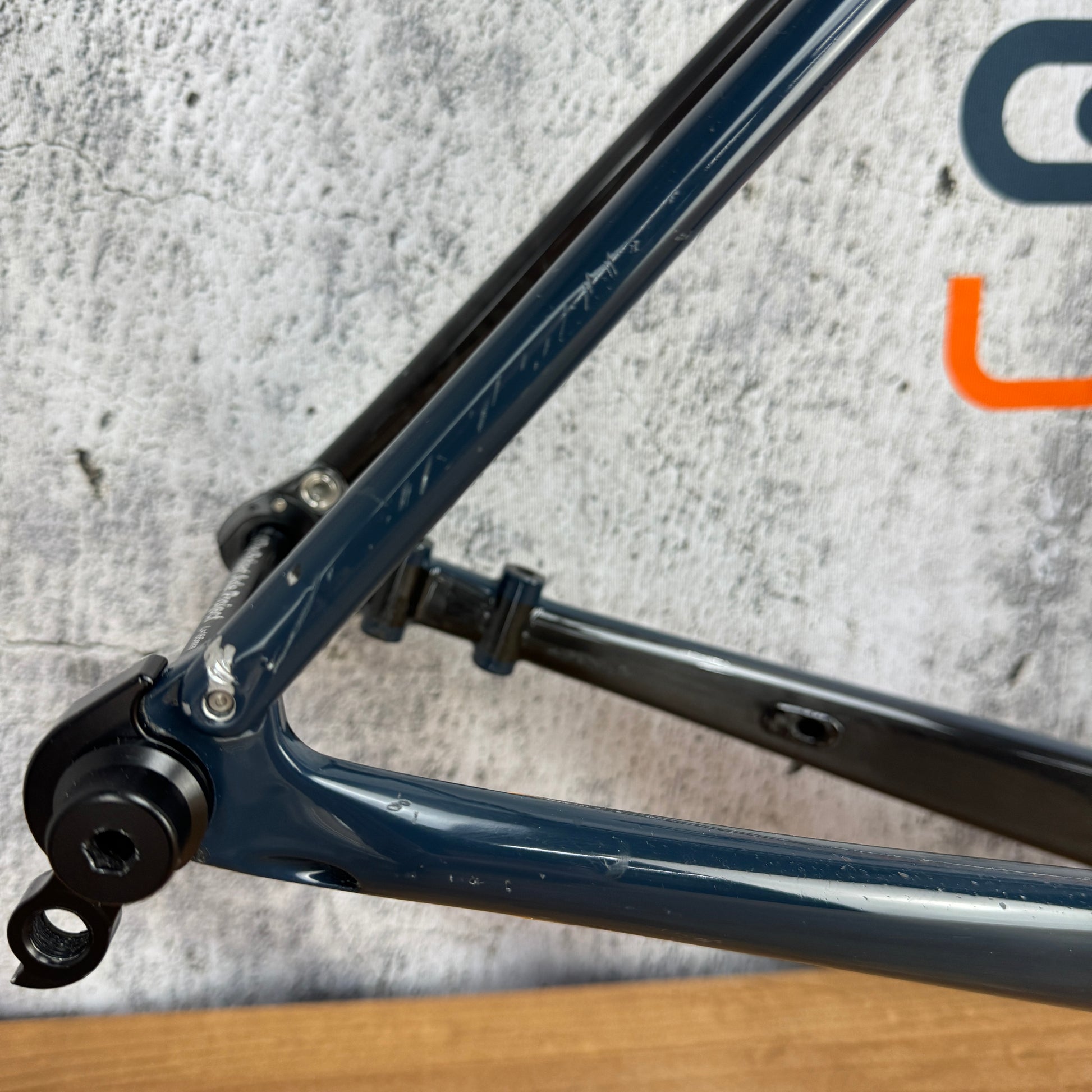

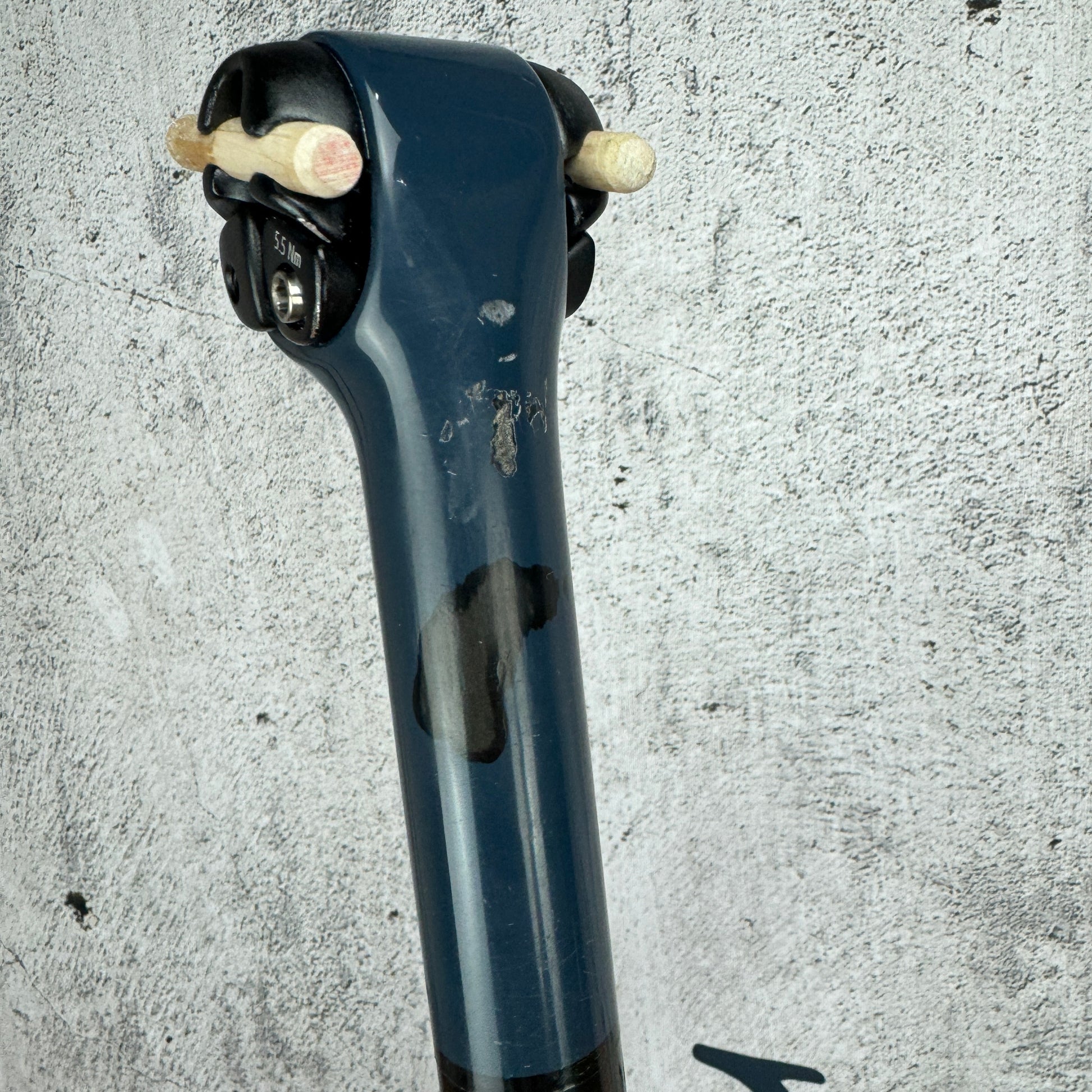

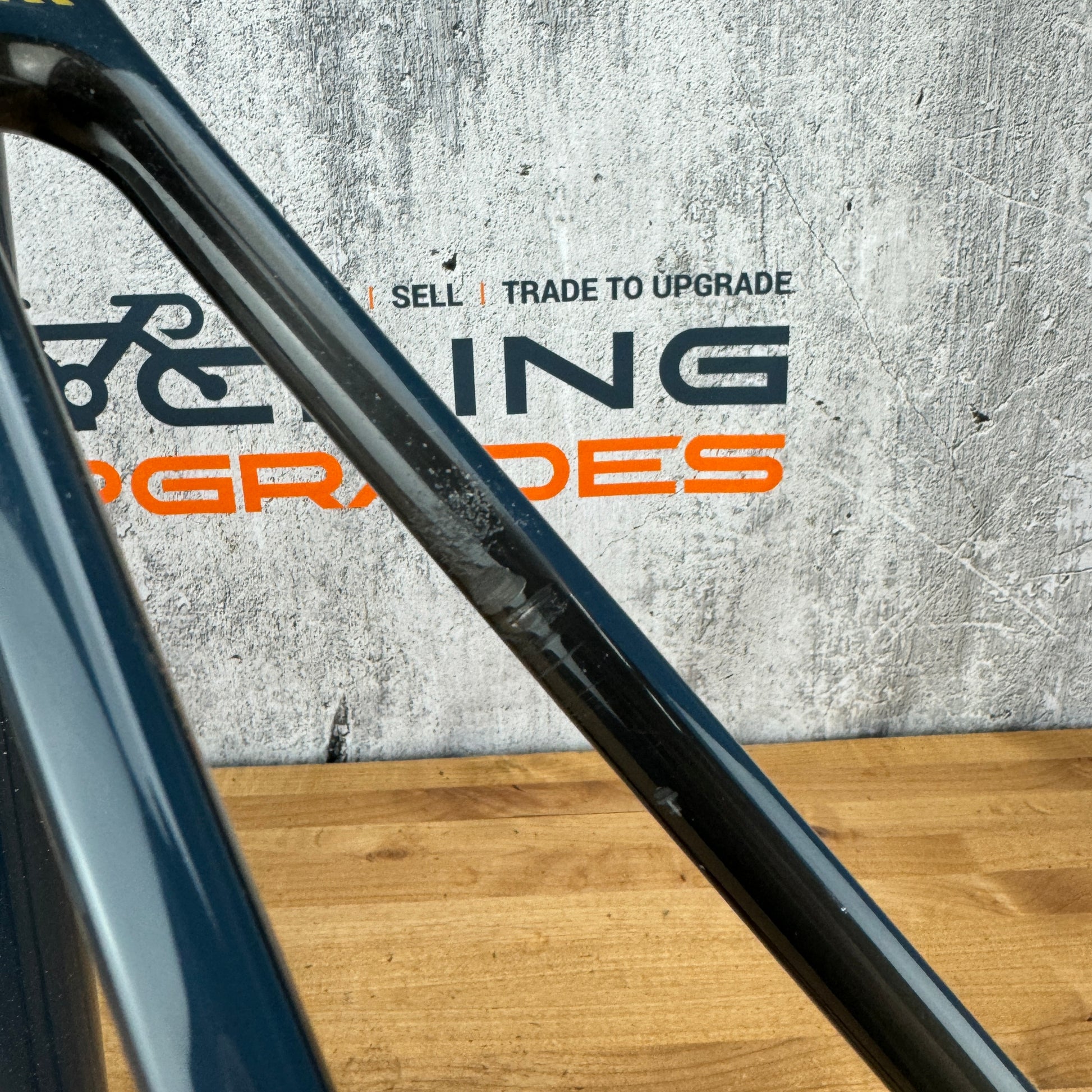

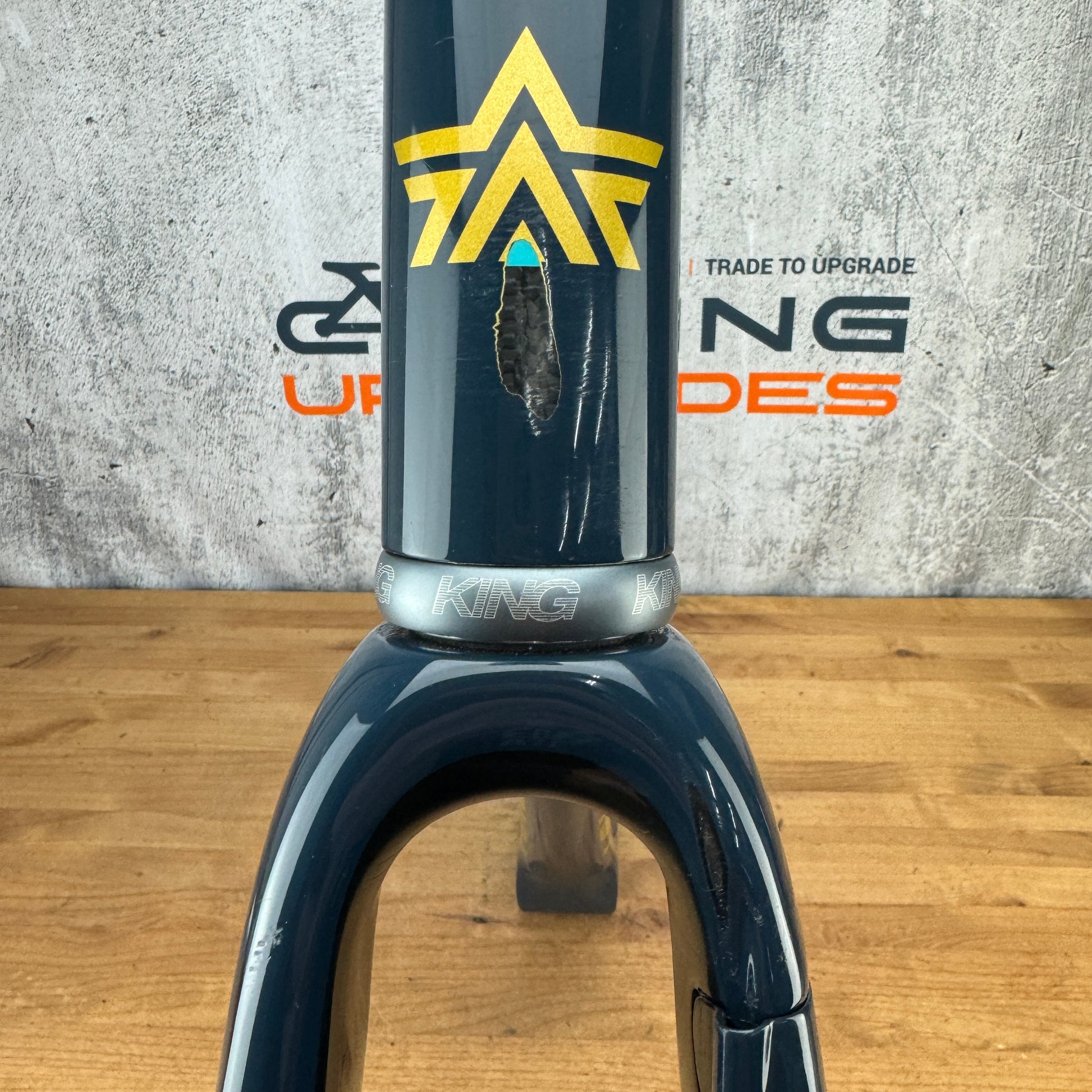

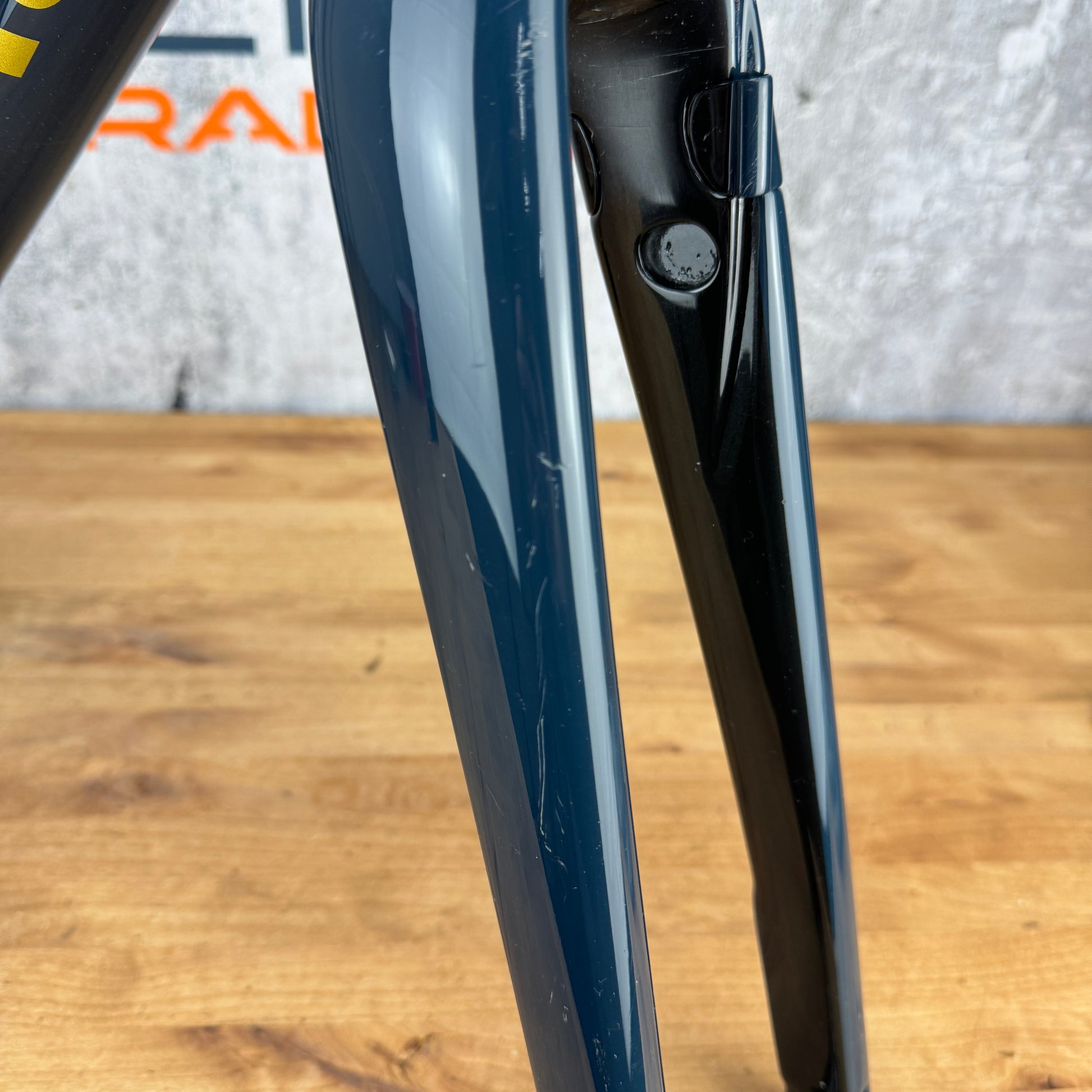

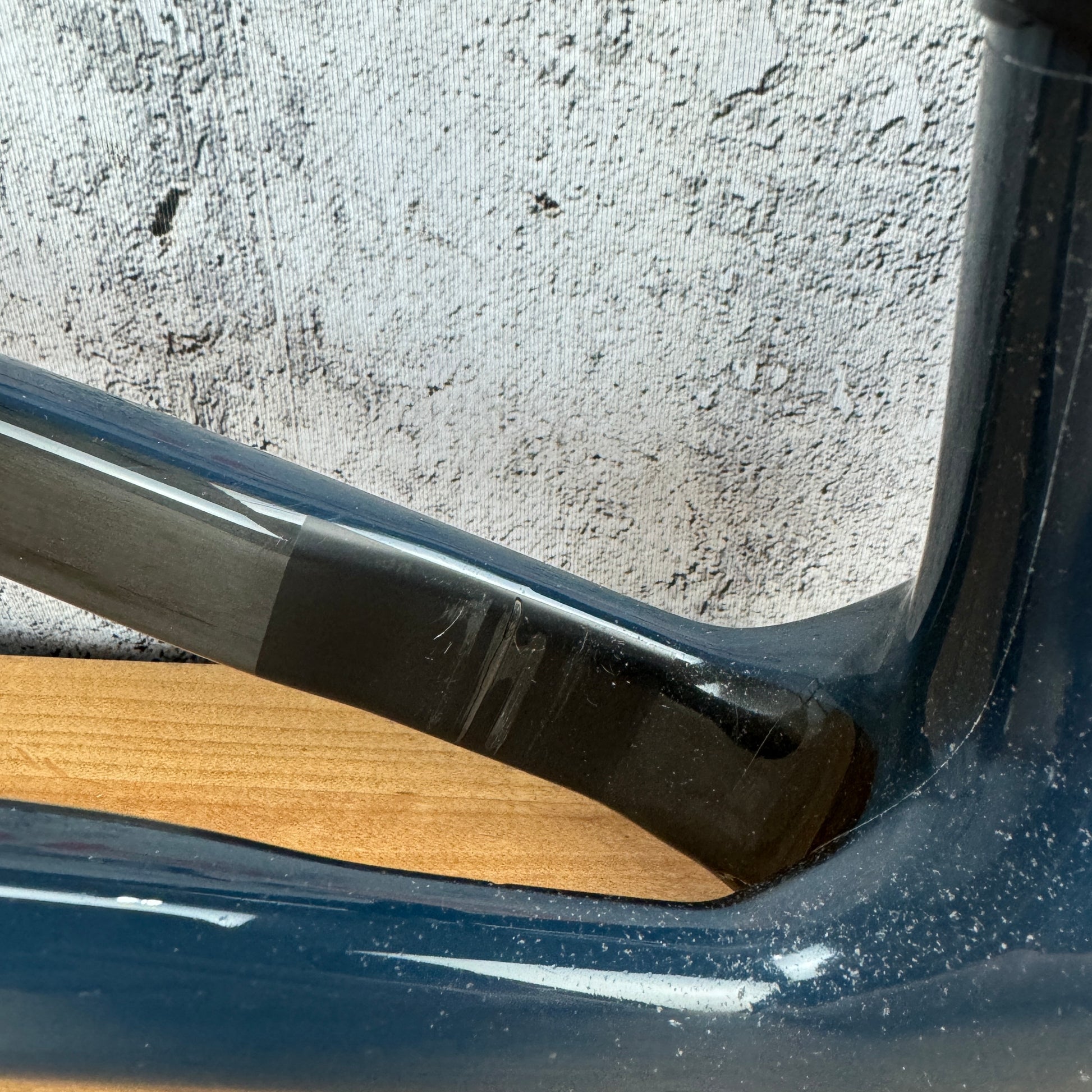

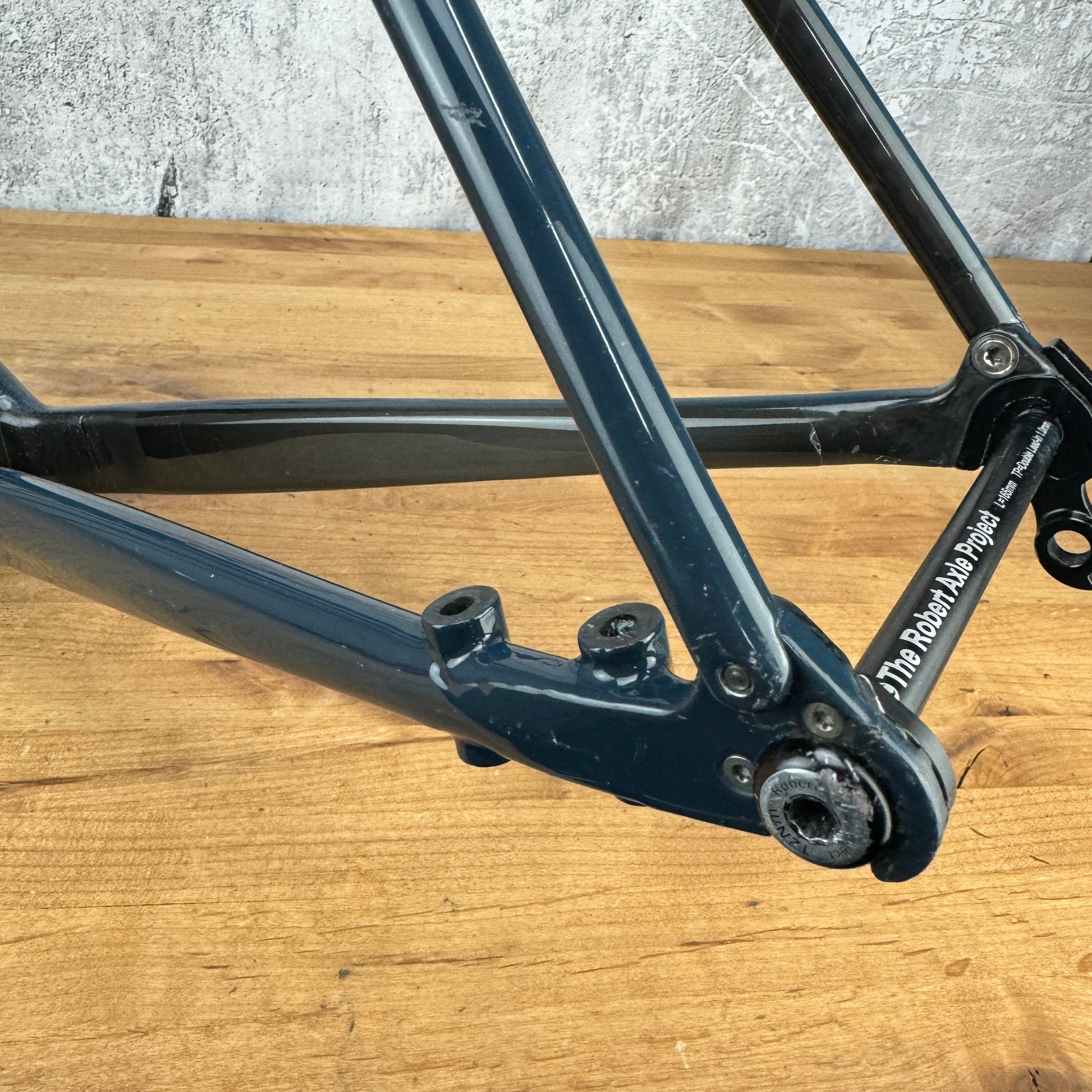

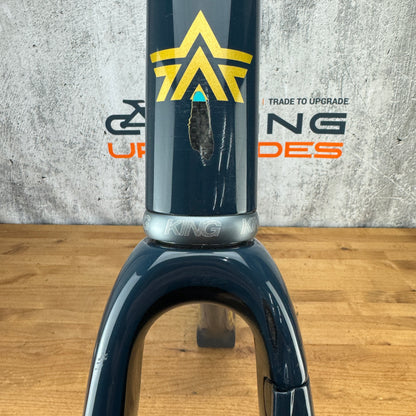

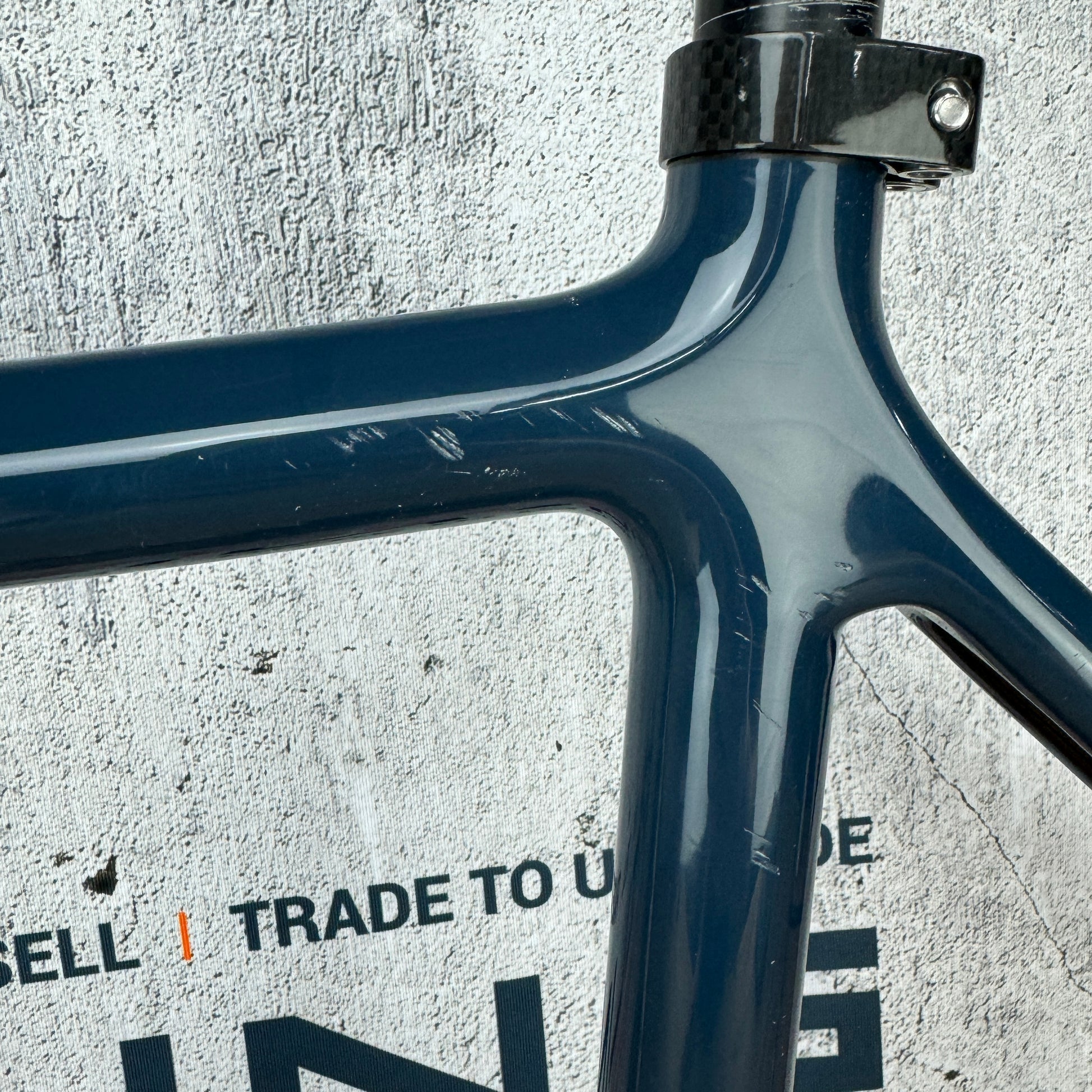

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: Some scratches and tire rub on the chainstays and seatstays shwon in pics #5-11, some rub wear on the seatpost shown in pic #12, some scratches on the fork shown in pic #13, some scratches on the top tube shown in pic #14, and some heavy rub wear on the head tube shown in pic #15. We have attempted to show all noticeable imperfections in specific close-up pictures, however other imperfections and signs of use do exist.
Groupset compatibility: Frame can be setup for eTap groupsets only. This frame is not compatible with mechanical, Di2, or EPS setups. Mechanical cable guide below the bottom bracket intact.

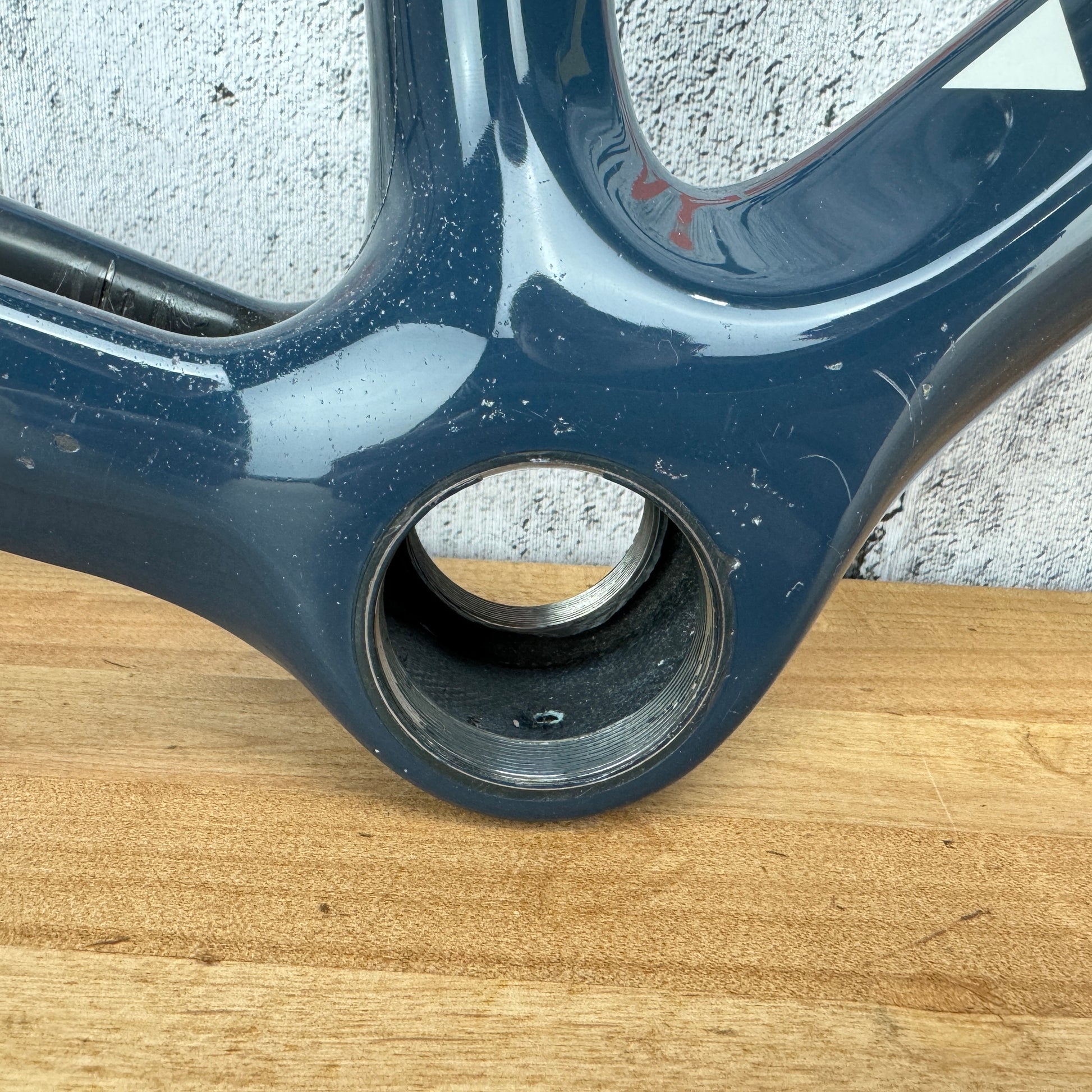

Bottom bracket: Threadfit T47/68 bottom bracket shell type. No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

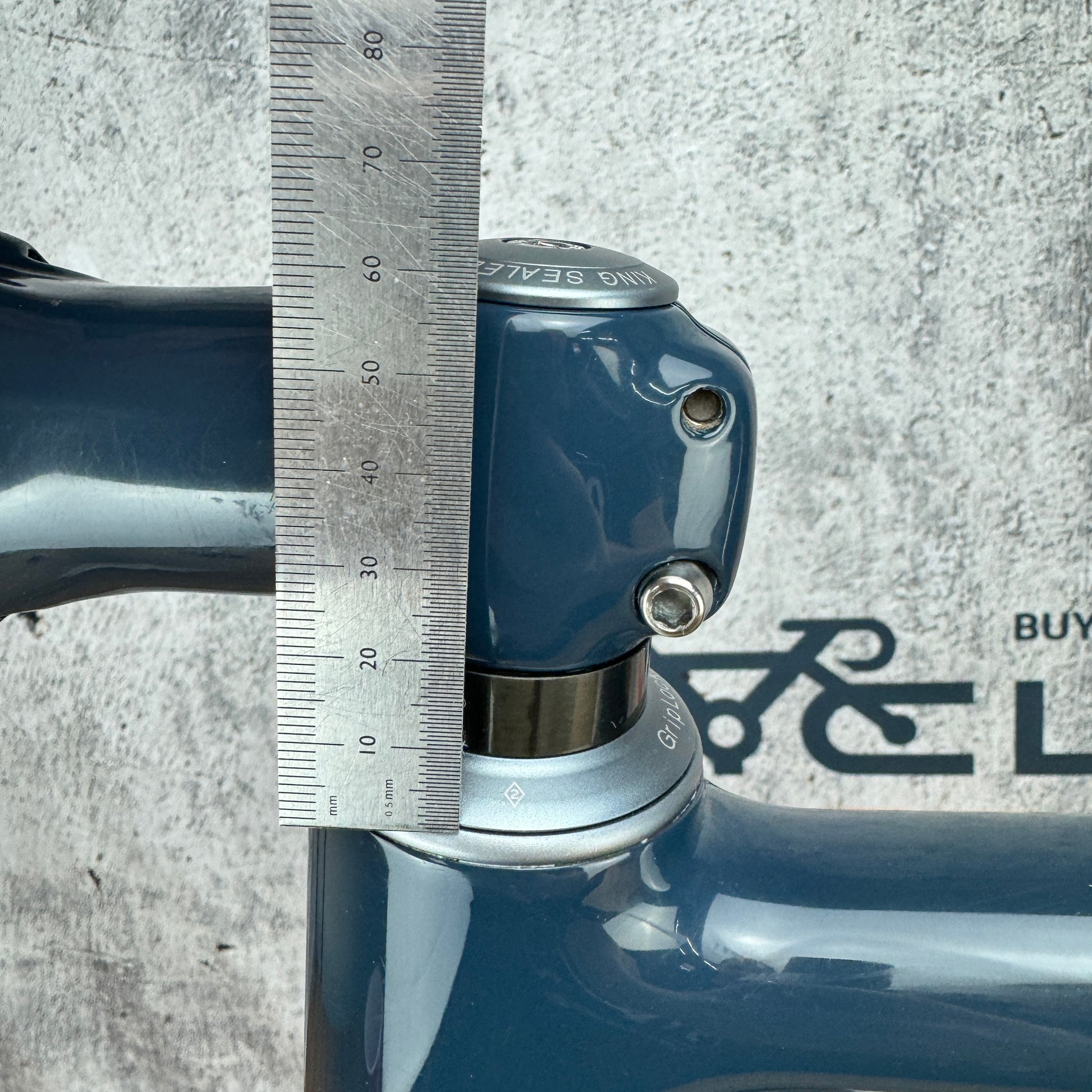

Steerer length: 55mm of steerer above the top tube. 10mm of spacers below the stem plus the headset cover. We do have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.
Stem: Paint matched Enve road carbon 90mm stem.
Seatpost: Paint matched Enve carbon seatpost included.

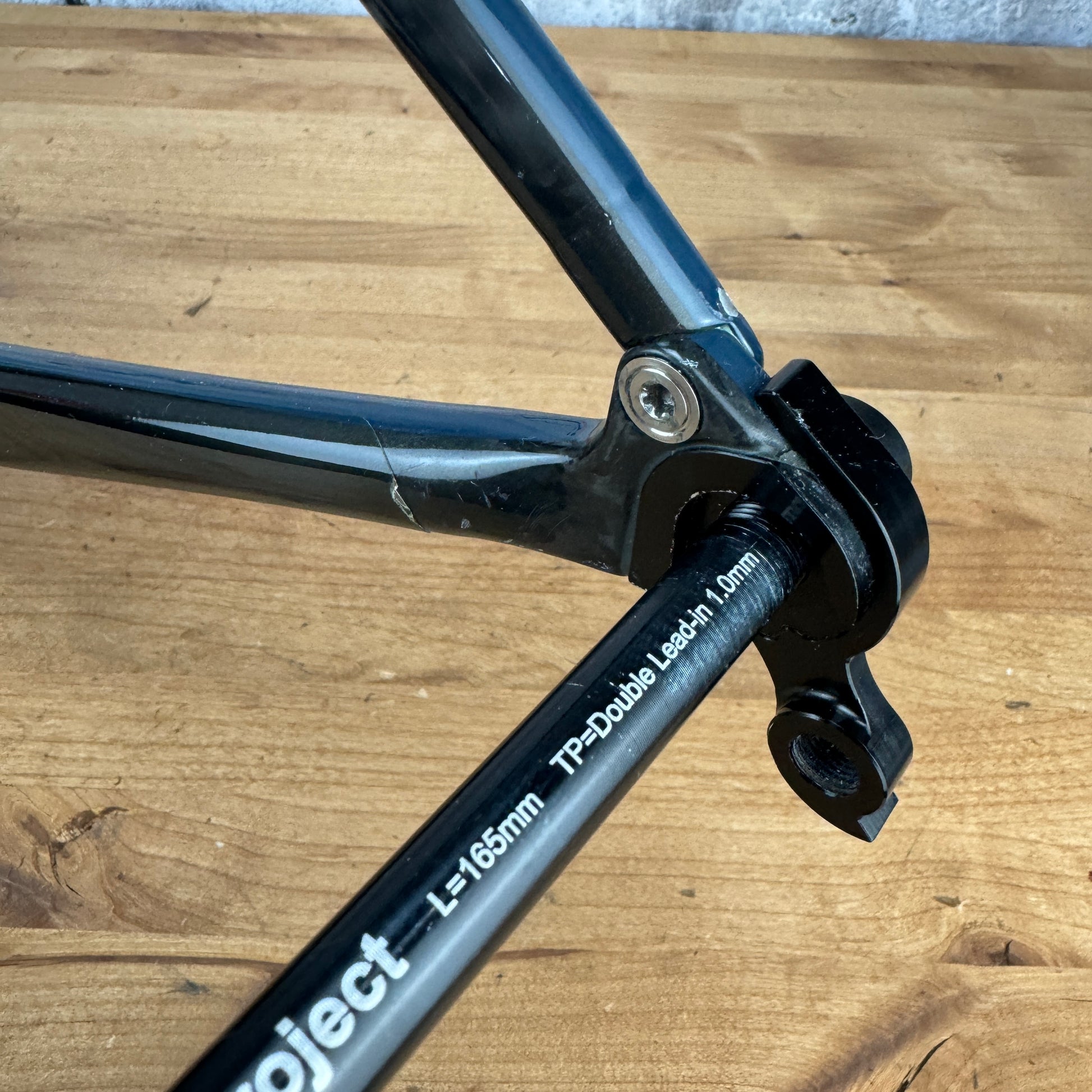

Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.
Weight: 1843 grams as pictured with headset, thru axles, stem, seatpost, frame hardware, etc.
What's included: Frame, fork, Chris King headset, rear derailleur hanger, stem, seatpost, thru axles
