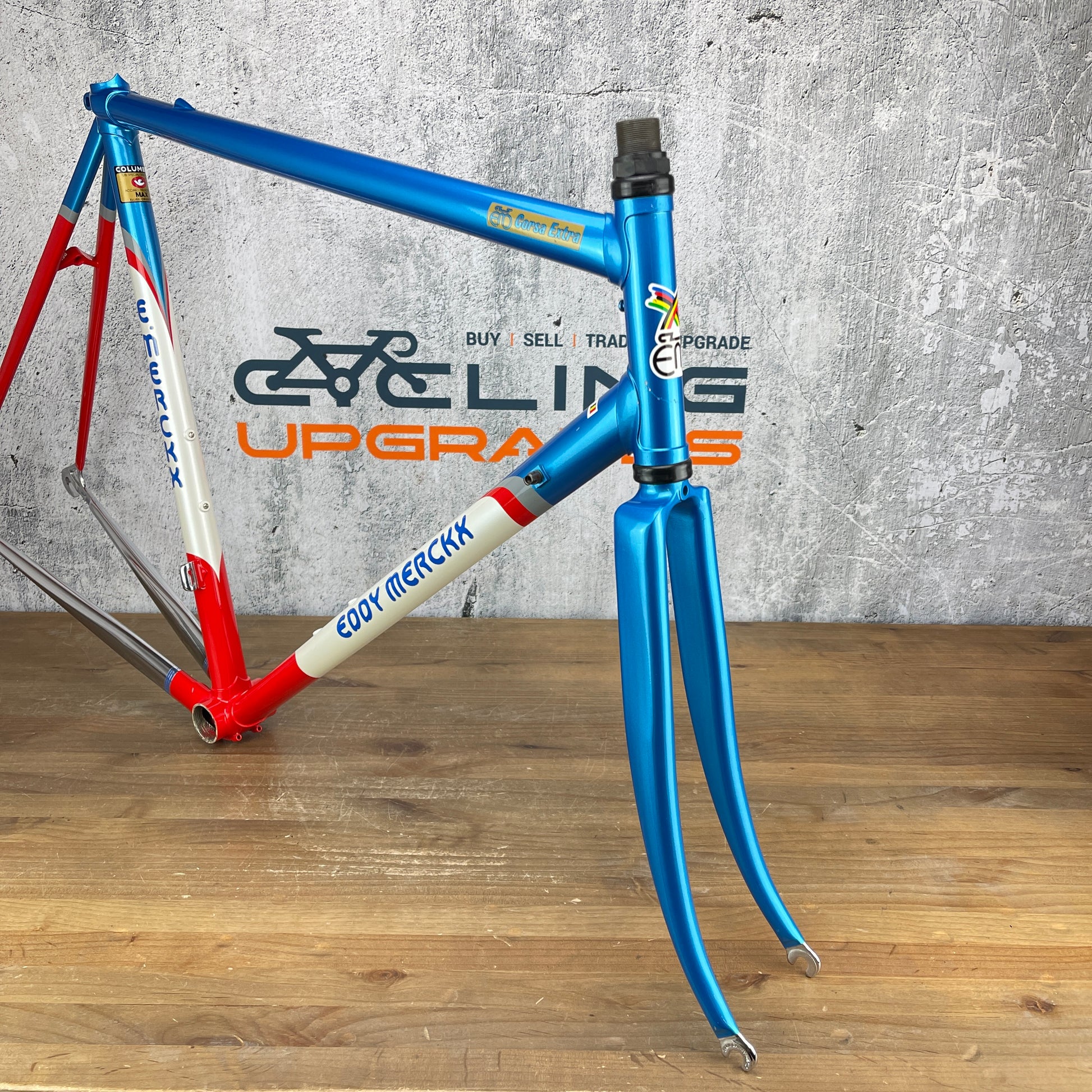

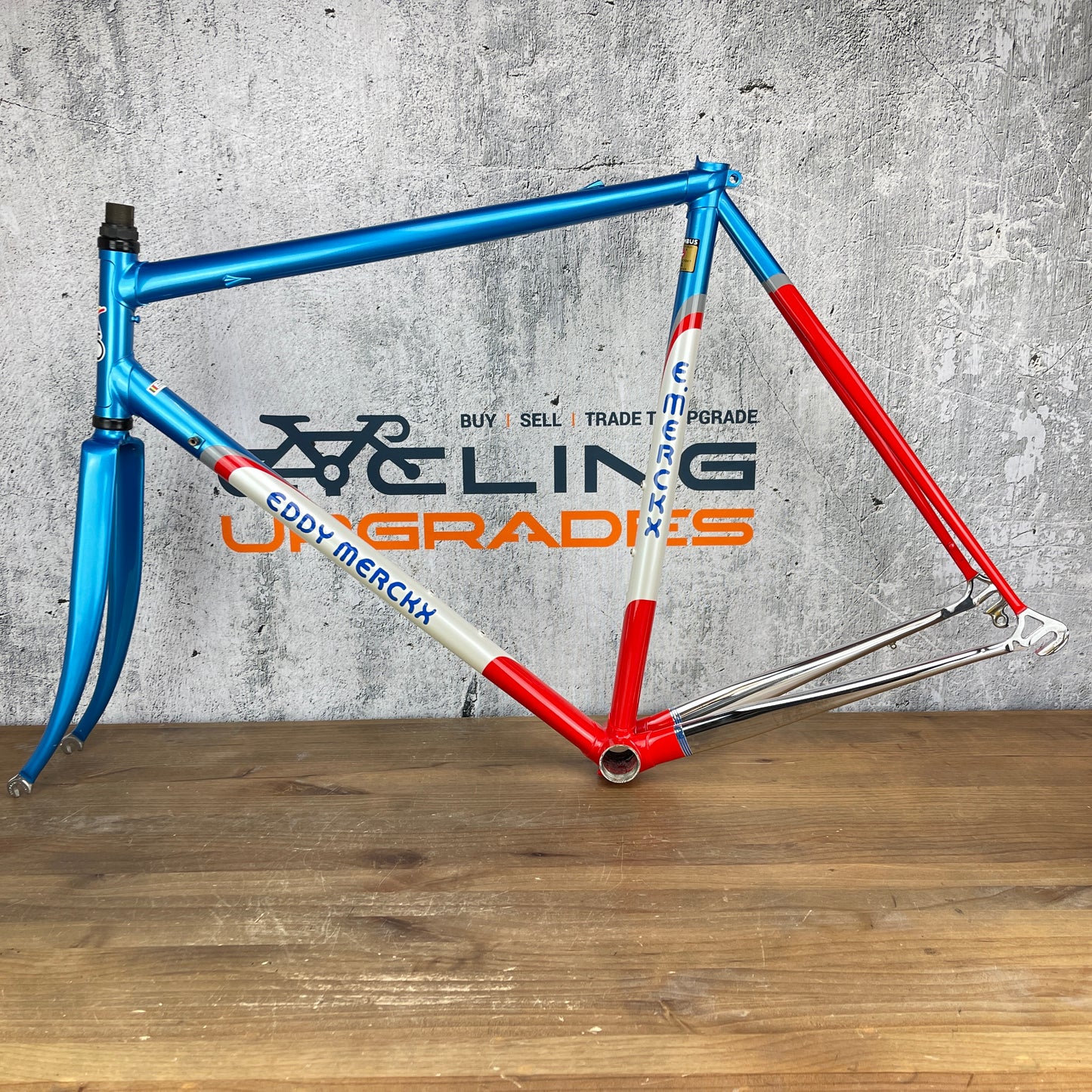

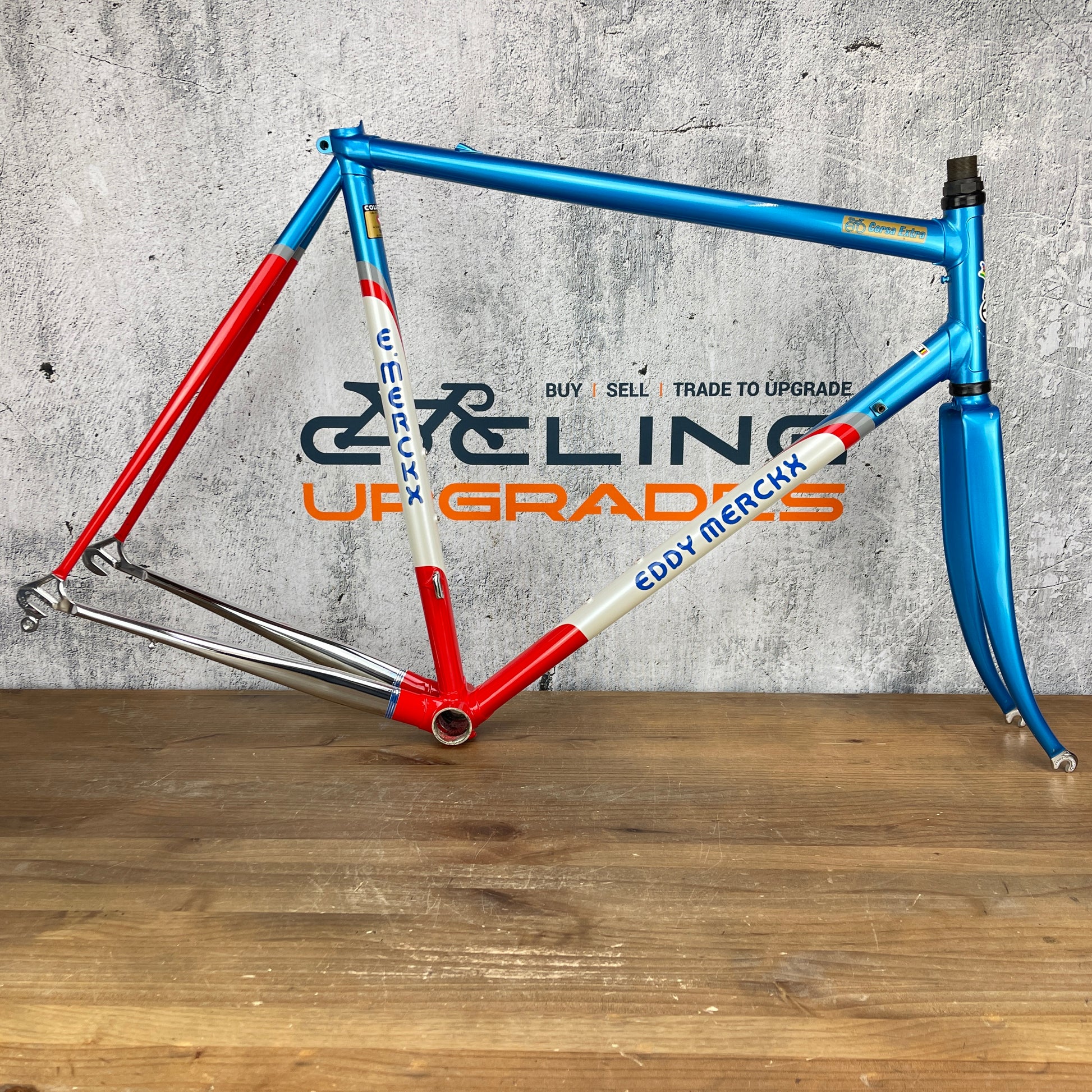

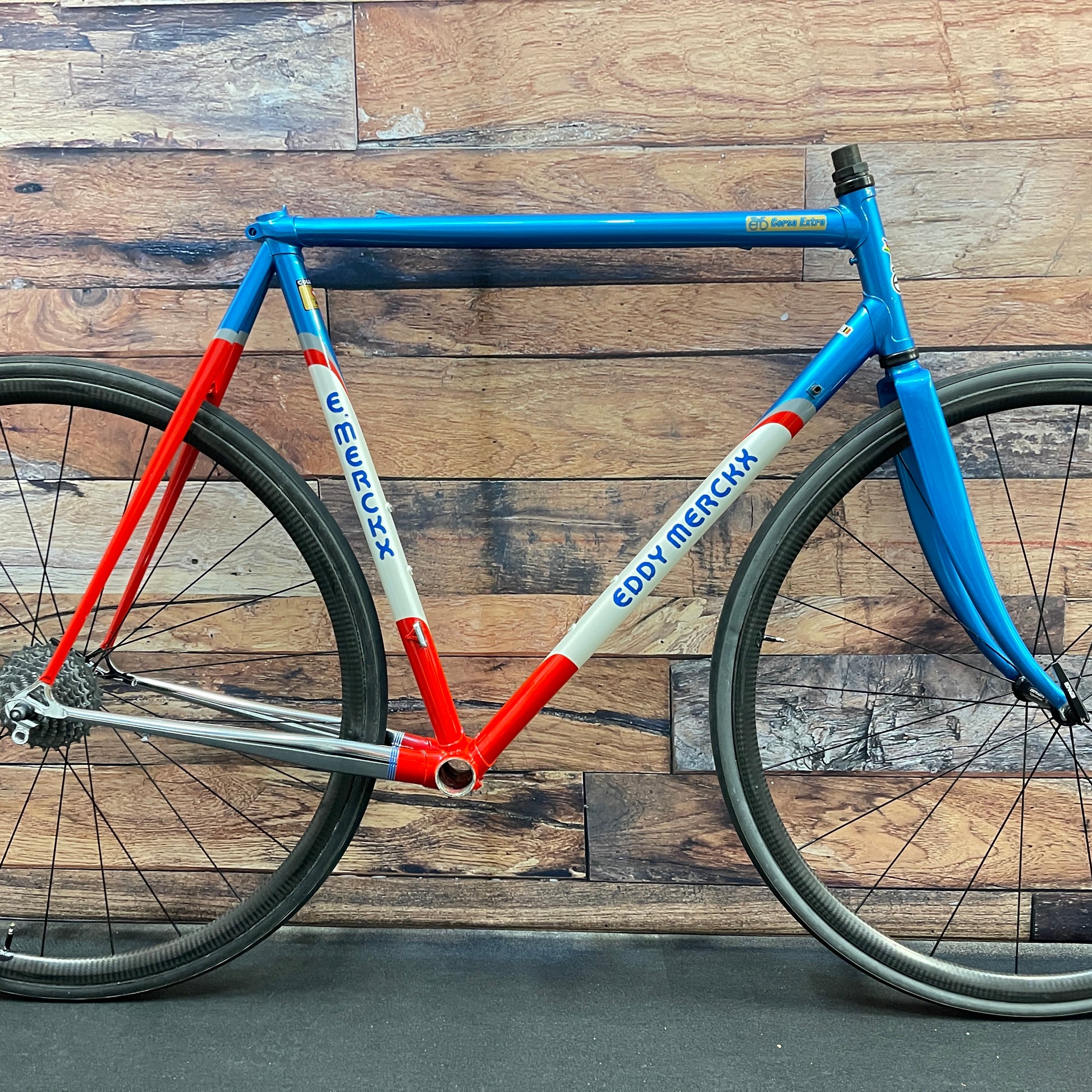

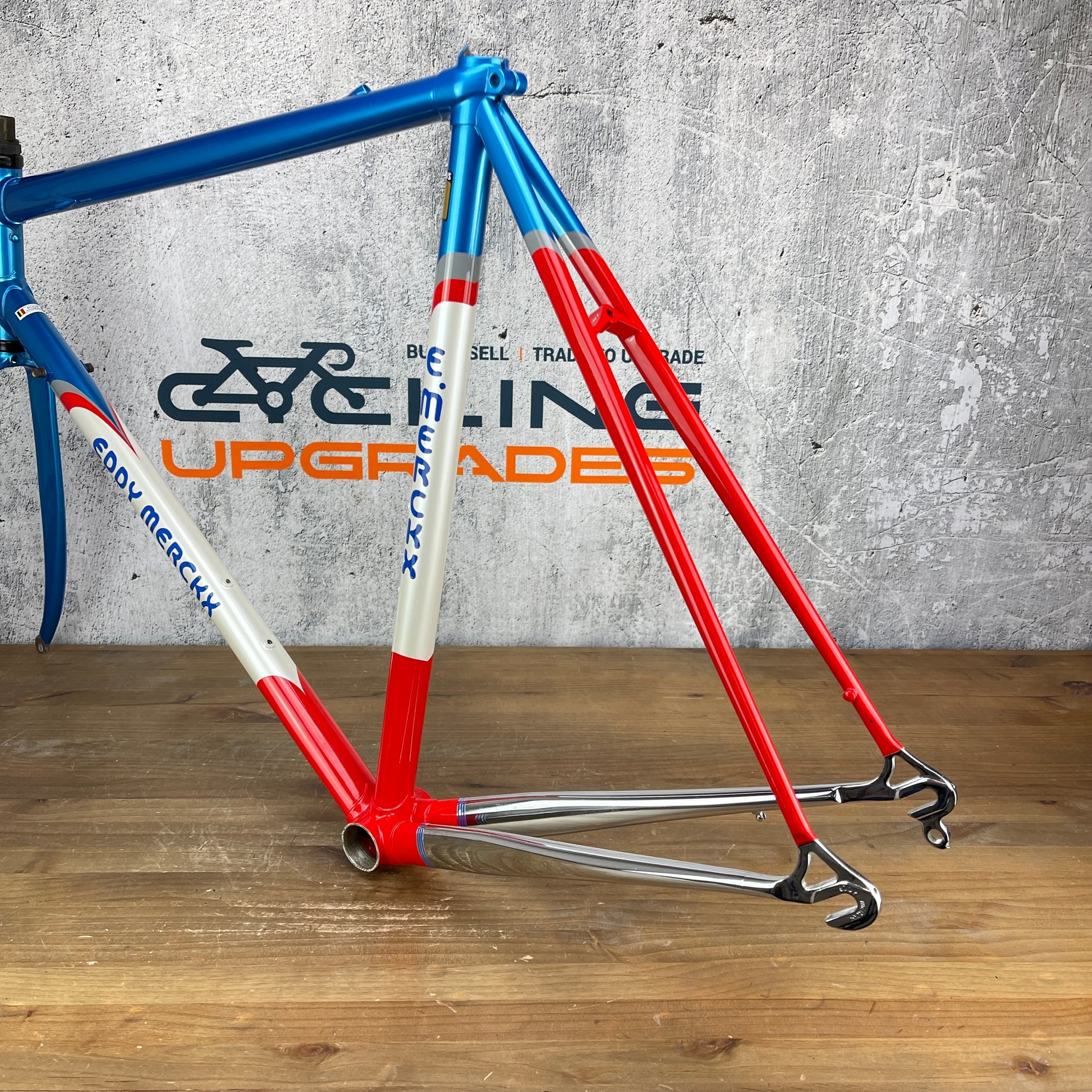

Frame: Eddy Merckx Motorola
Serial: 109X D (X = a missing digit due to a small paint chip)

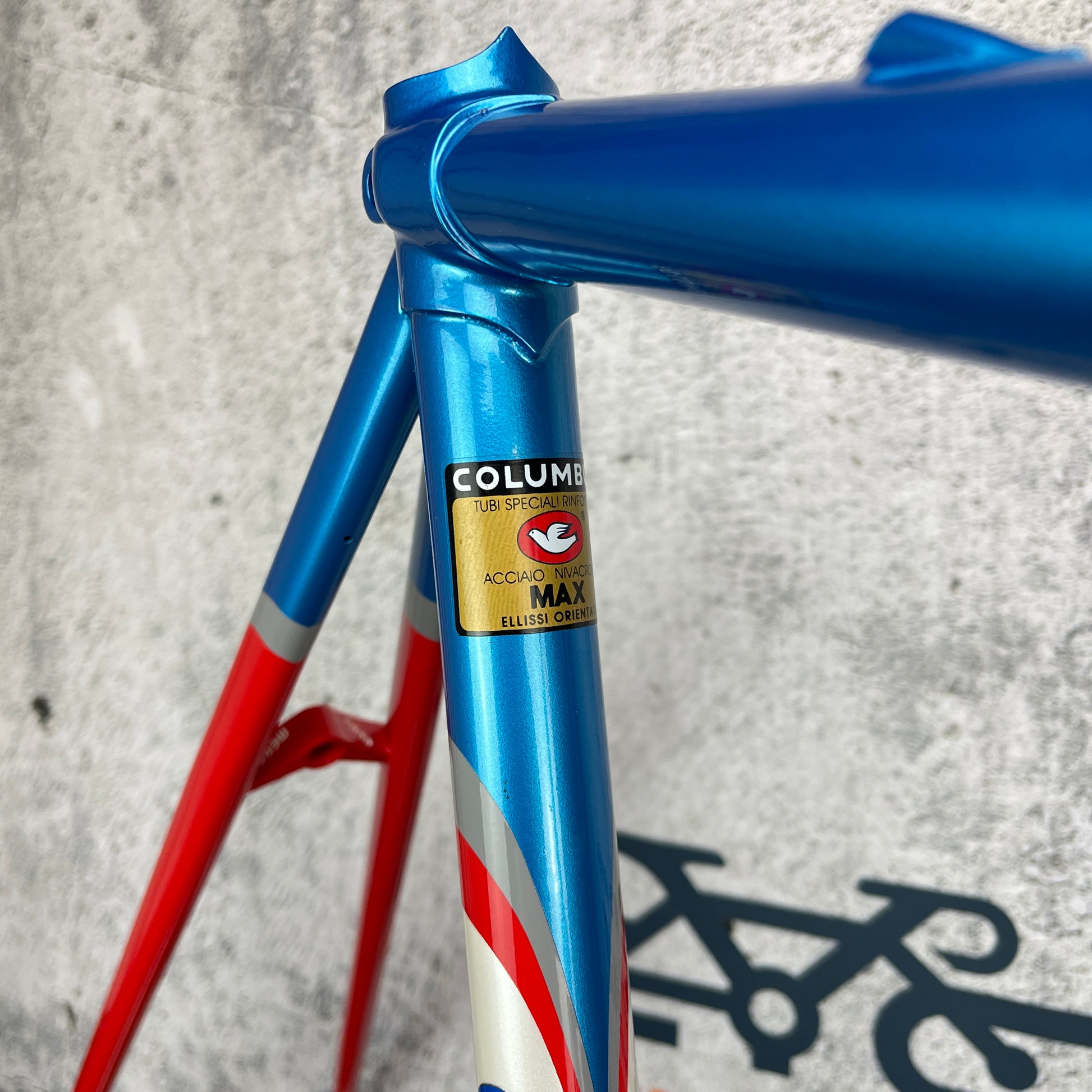

Material: Columbus MAX tubing
Color: Motorola Team colors
Brake type: Center-mount rim brake.
Size: Stamped with an L under the bottom bracket. Actual measurements taken by hand are approximate and are as follows: 560mm actual top tube center to center. 560mm center of bottom bracket to center of top tube. 575mm center of bottom bracket to top of seat tube. Head tube 140mm. 415mm chainstay length. If other measurements or take-offs are needed, please feel free to ask.

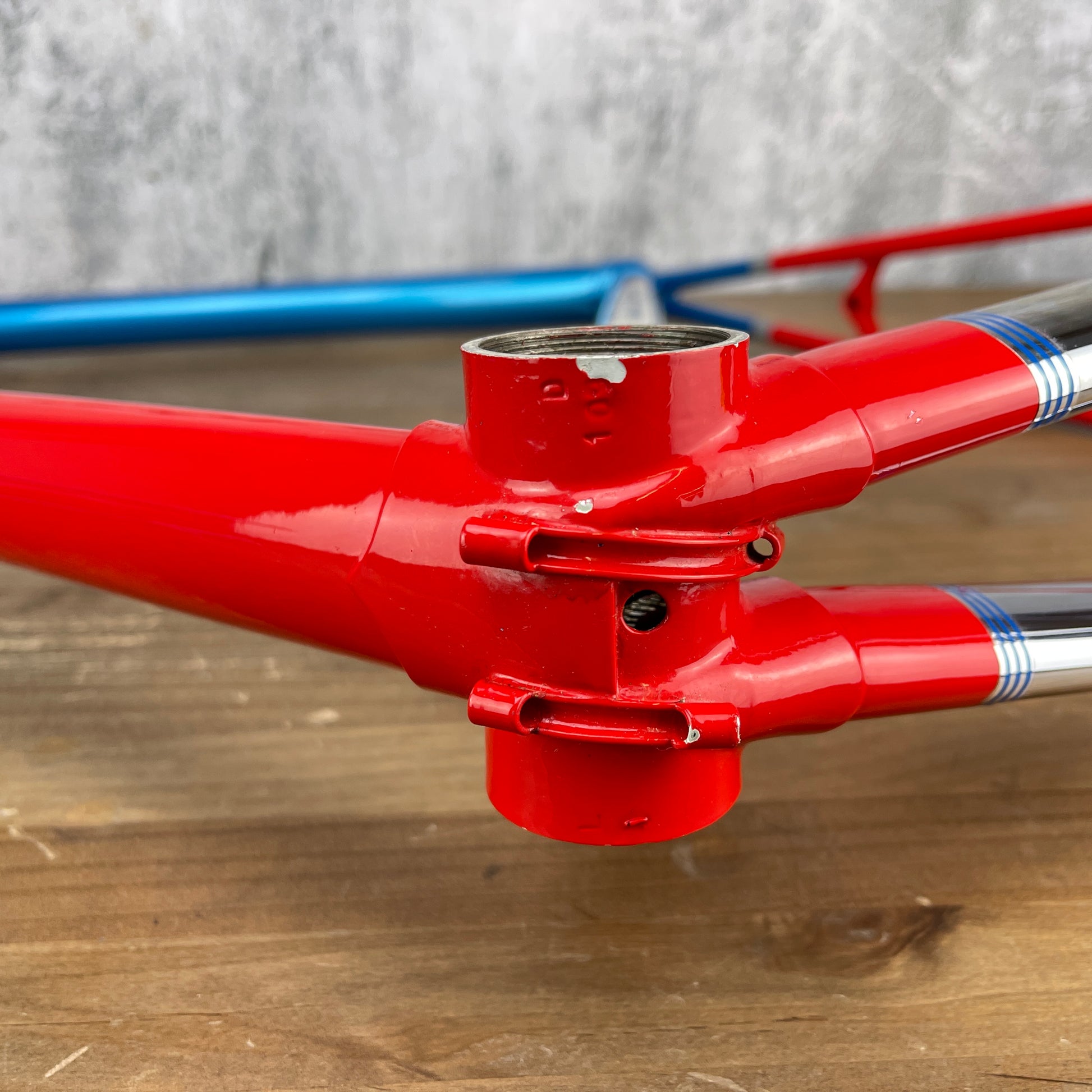

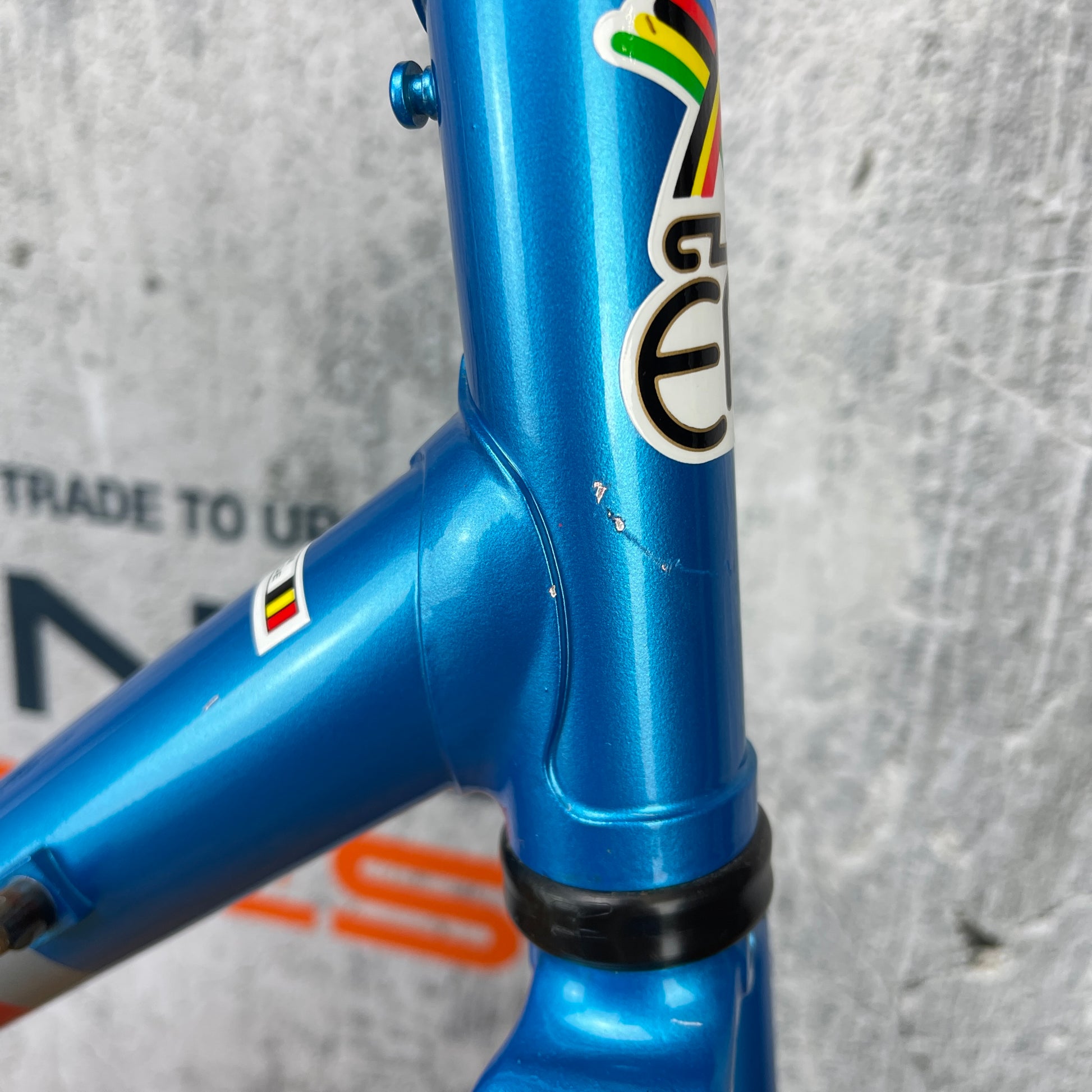

Condition: This frame is new and never built. The brake bridge has not had a caliper installed. No cracks or dents were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: a scratch on the top tube shown in pic #9 & #10 and a paint chip under the bottom bracket shown in pic #11. We have attempted to show all noticeable imperfections in specific close-up pictures, however light signs of handling may exist.
Groupset compatibility: Frame can be setup for eTap or mechanical groupsets. This frame is not compatible with Di2, or EPS setups. Mechanical cable guide below the bottom bracket intact.

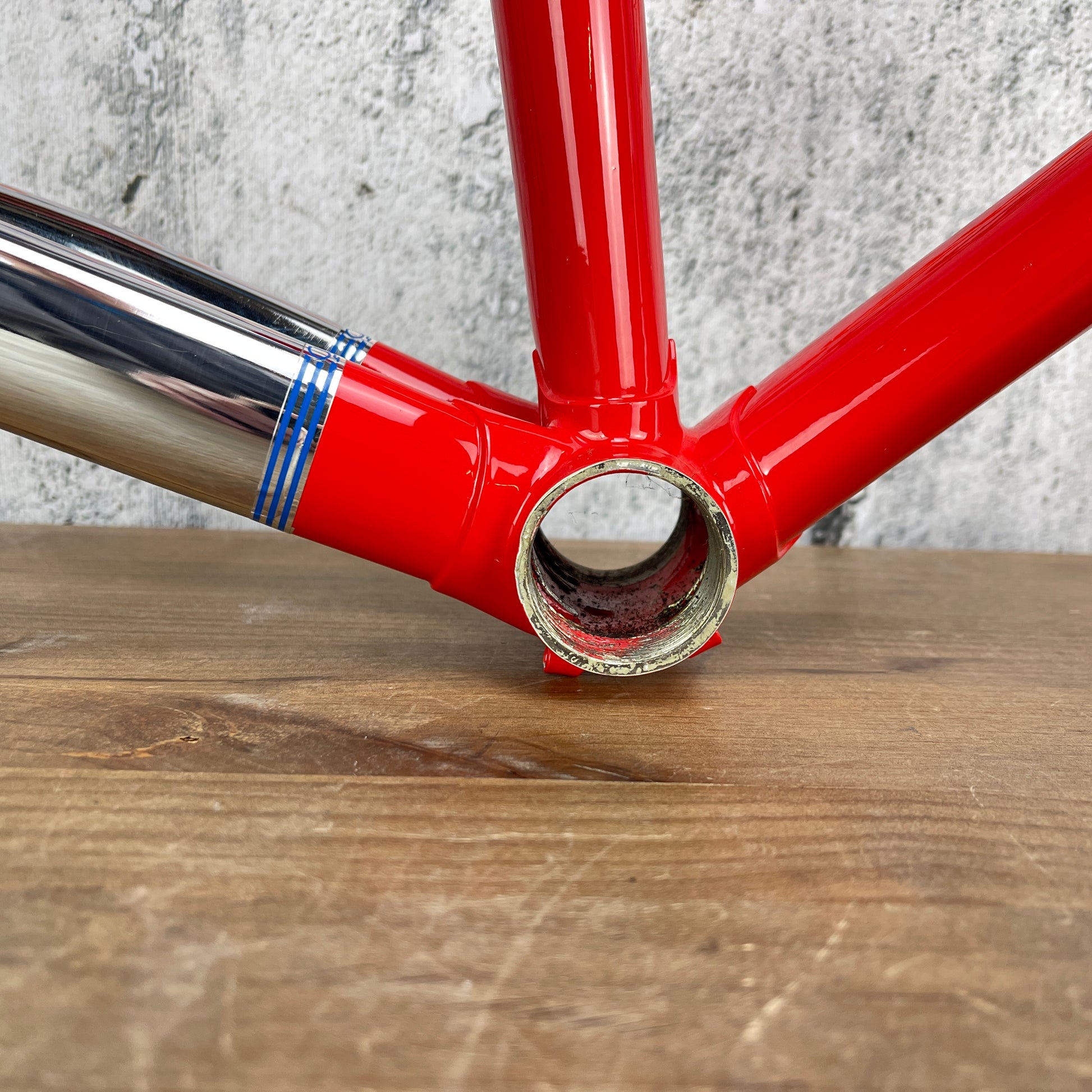

Bottom bracket: Italian threaded bottom bracket shell type. No bottom bracket currently installed. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Wheels Manufacturing, and a Ceramicspeed Authorized Dealer, if you prefer to have the frame setup with a certain Wheels Manufacturing, or Ceramicspeed bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.
Steerer length: N/A - this frame/fork uses a quill style stem.
Seatpost Diameter: 27.2mm. No seatpost included.
Dropout Spacing: QR x 100mm front, QR x 130mm rear.
Weight: 2856 grams as pictured with frame hardware, etc.
What's included: Frame, fork.
