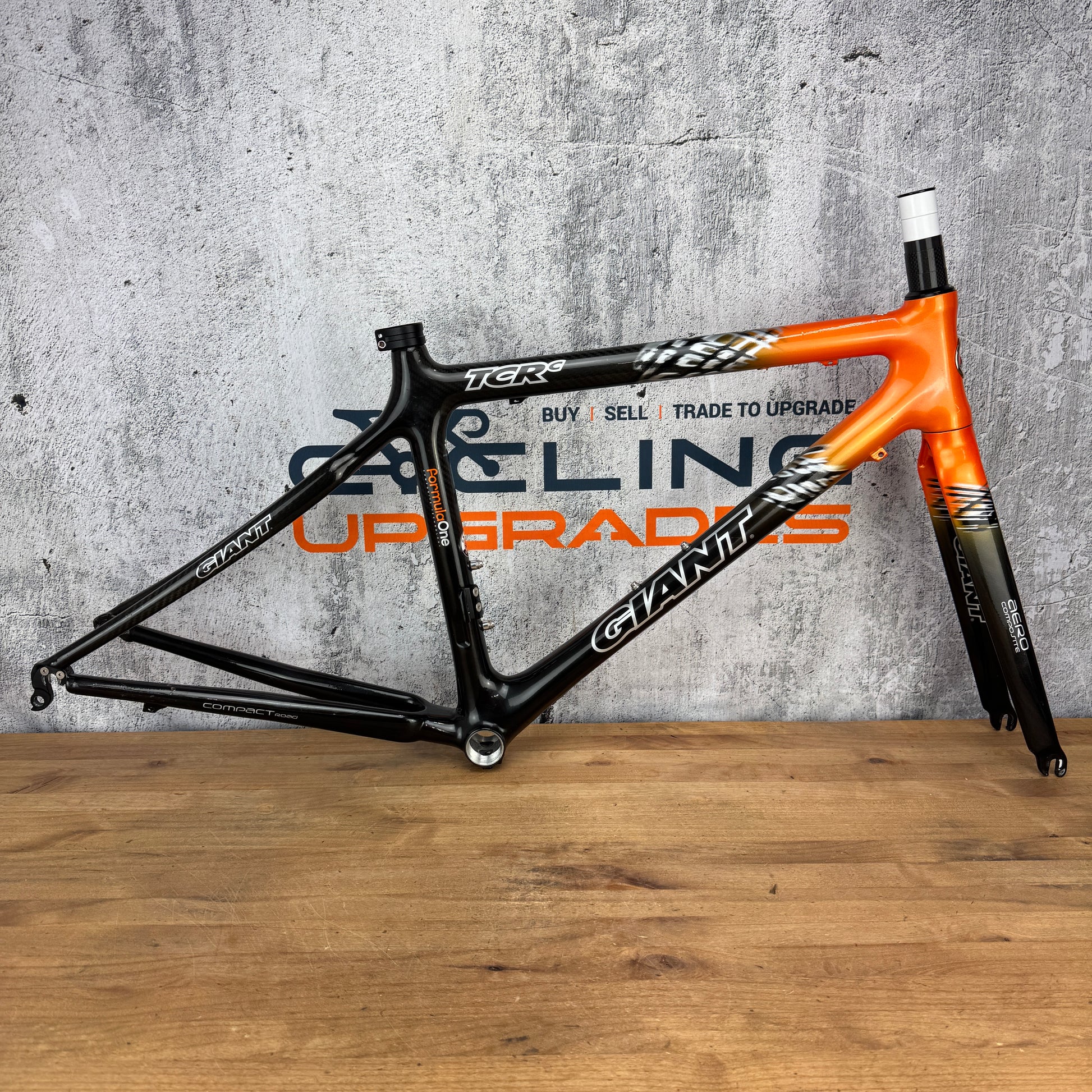

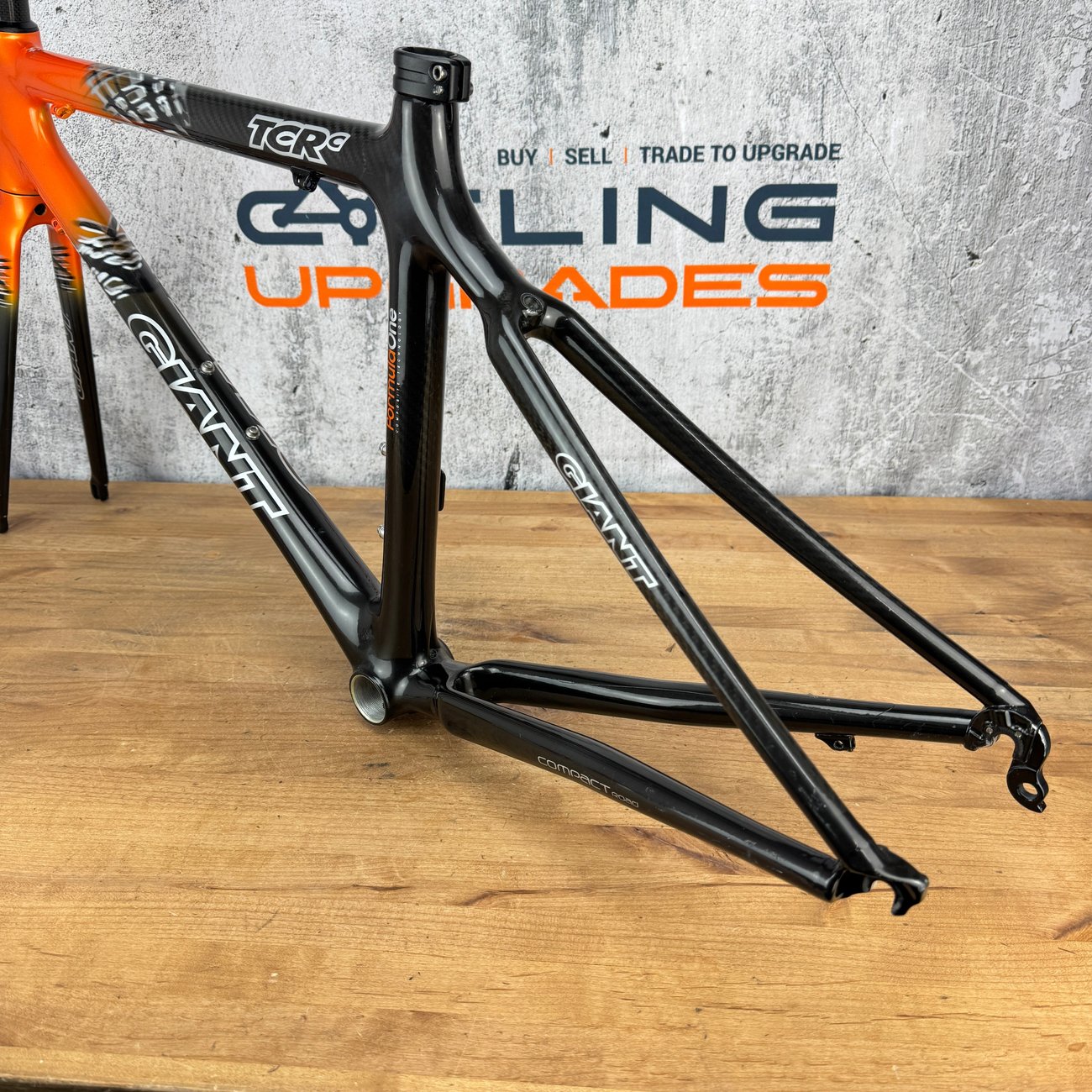

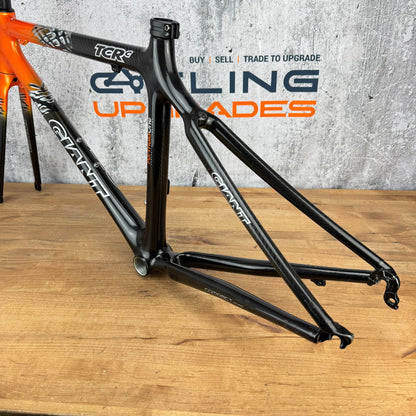

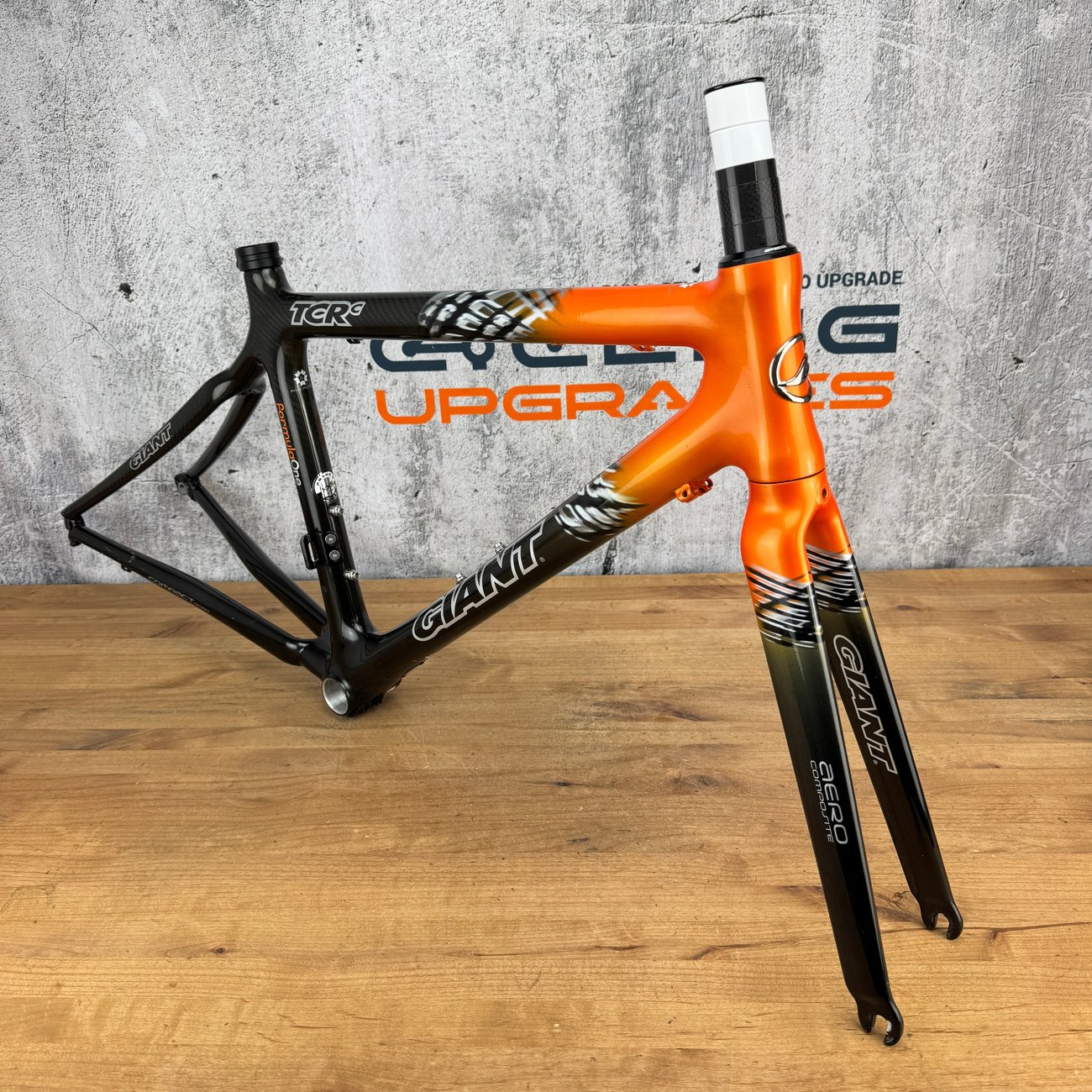

Frame: Giant TCR Compact
Color: Orange, and black
Brake type: Center-Mount rim brake

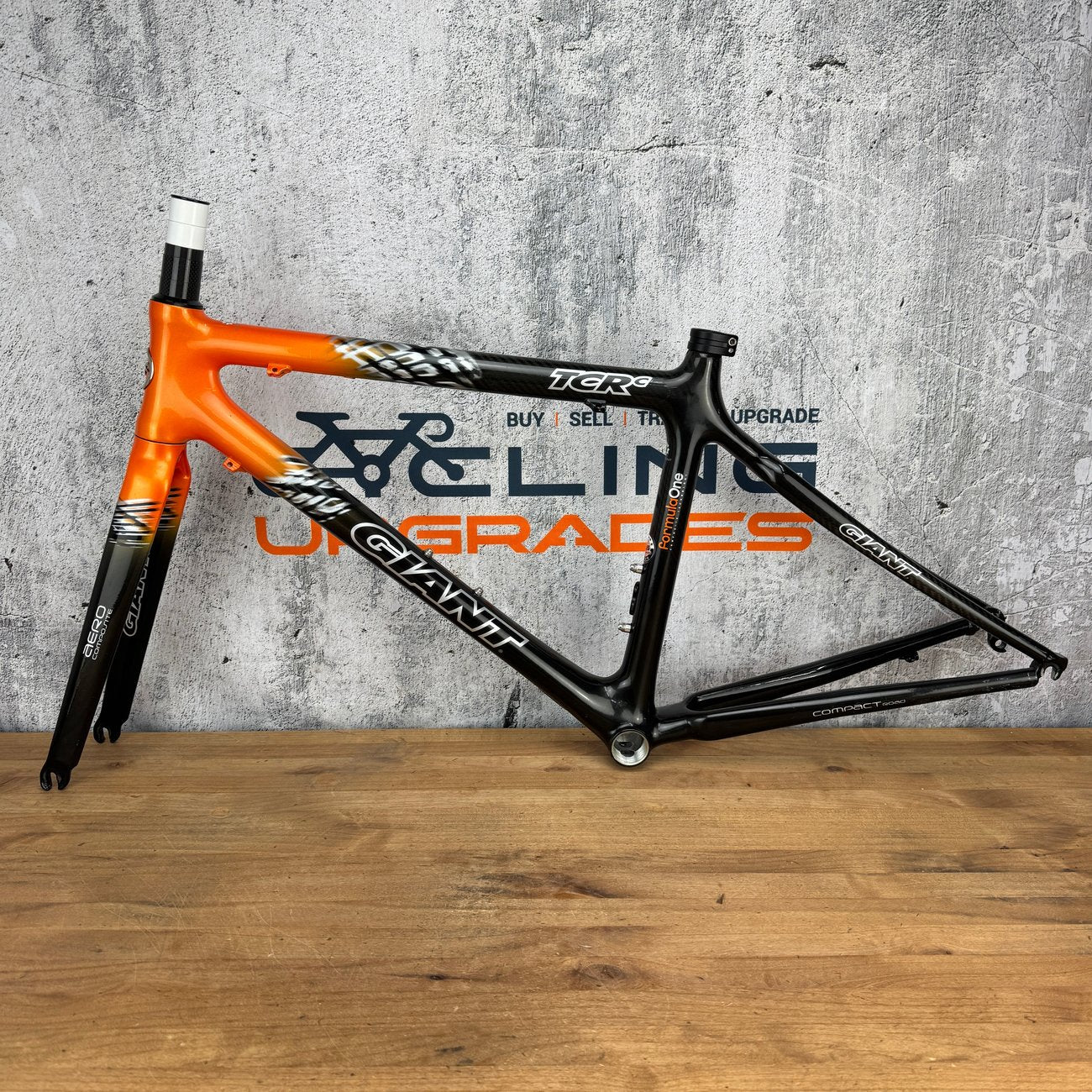

Size: XXS. Actual measurements taken by hand are approximate and are as follows: 480mm stack, 390mm reach, 520mm effective top tube. 490mm actual top tube center to center. 415mm center of bottom bracket to top of top tube. Head tube 127mm. 410mm chainstay length. If other measurements or take-offs are needed, please feel free to ask. We have included in our last picture a photo of the frame with a wheelset on it to show the head and seat tube angles and top tube slope.

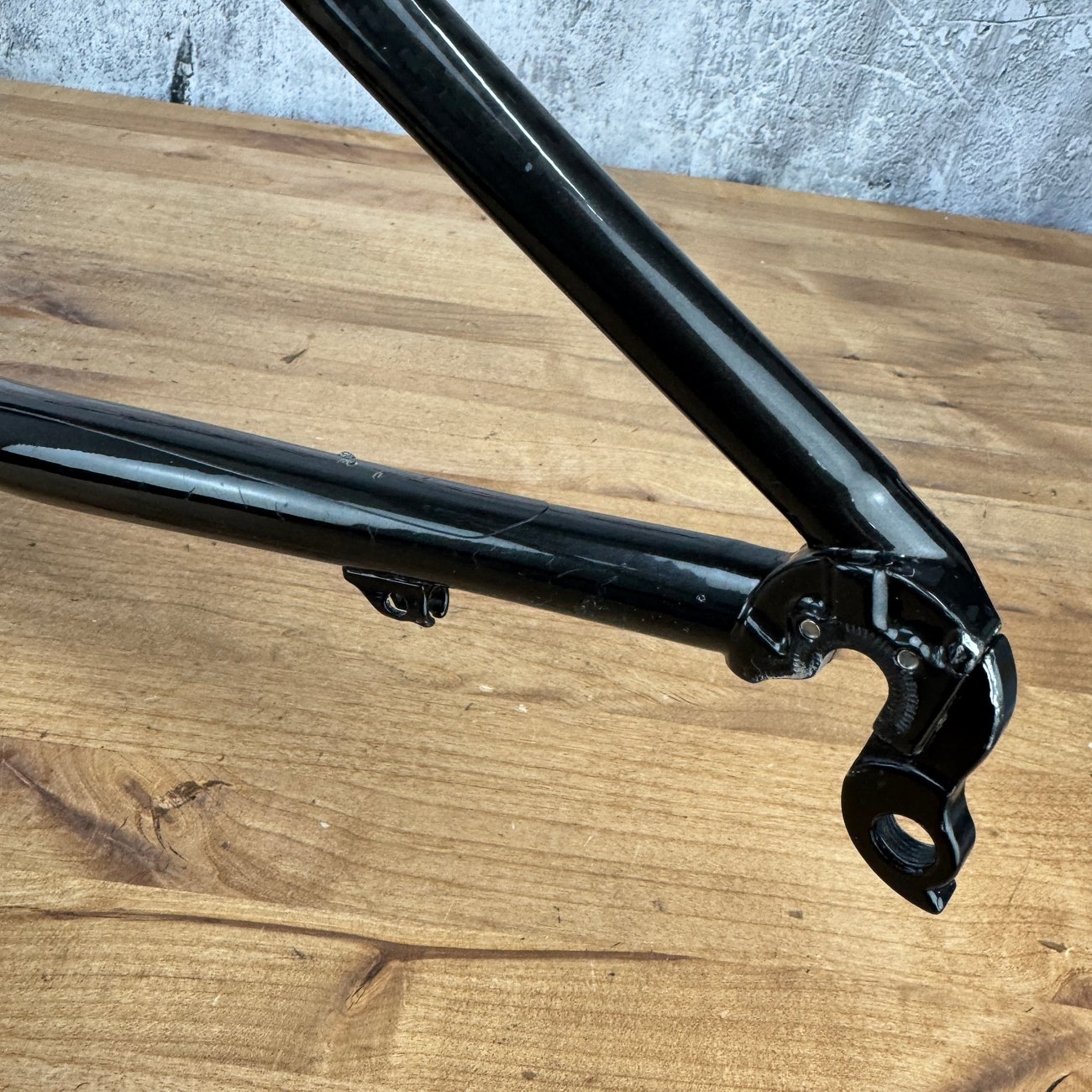

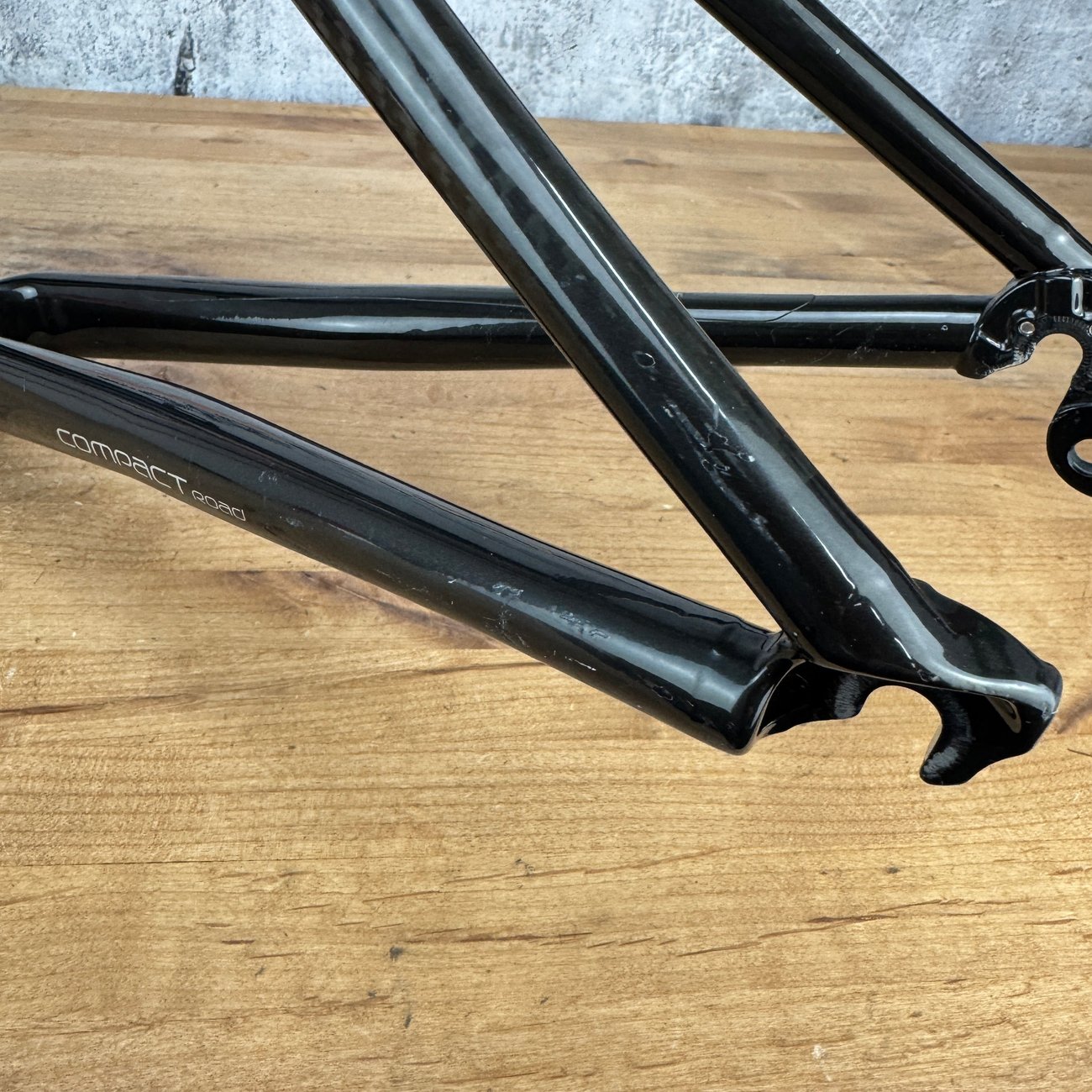

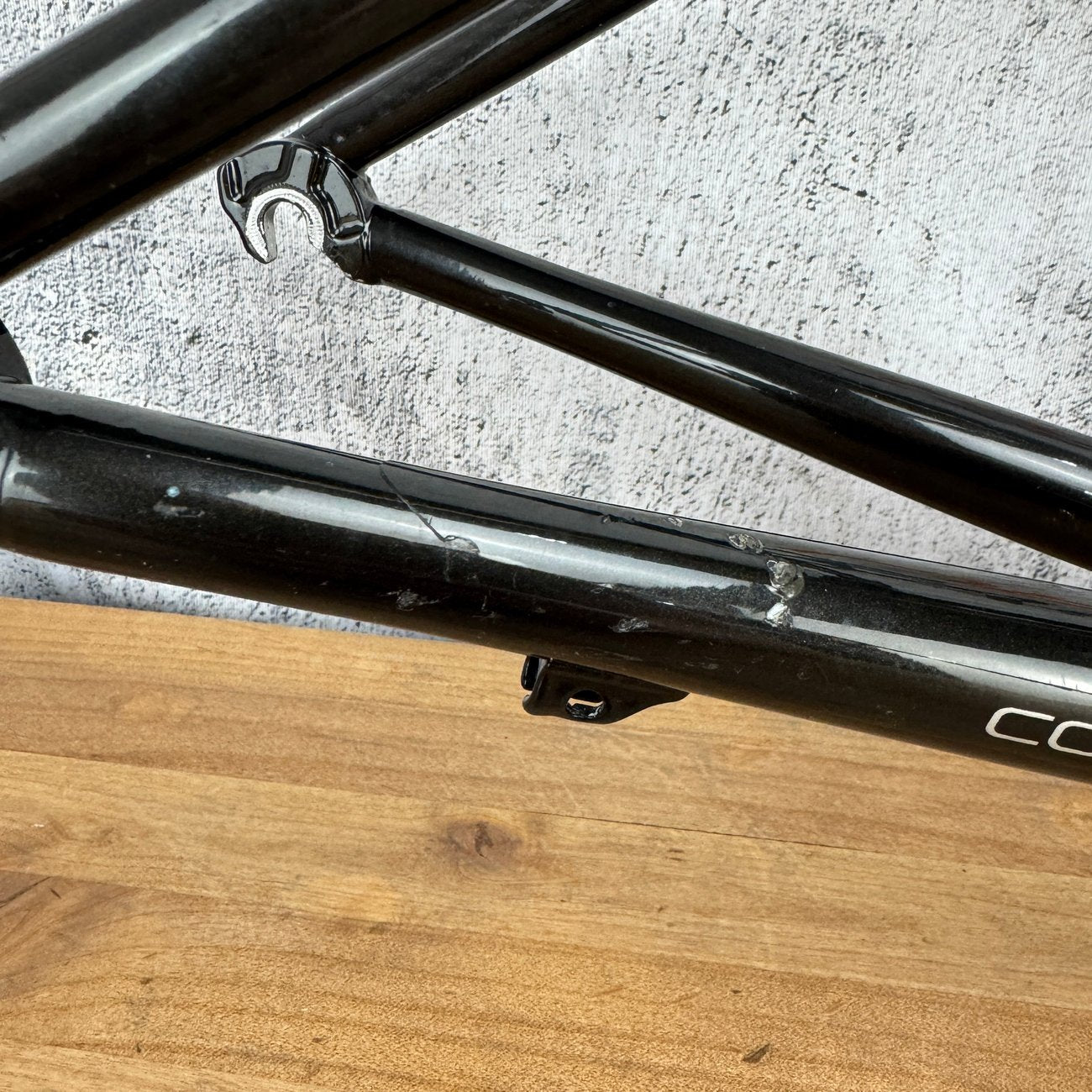

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: Some scratches on the chainstays shown in pics #7-9. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset compatibility: This frameset can be setup with eTap, or mechanical groupsets.

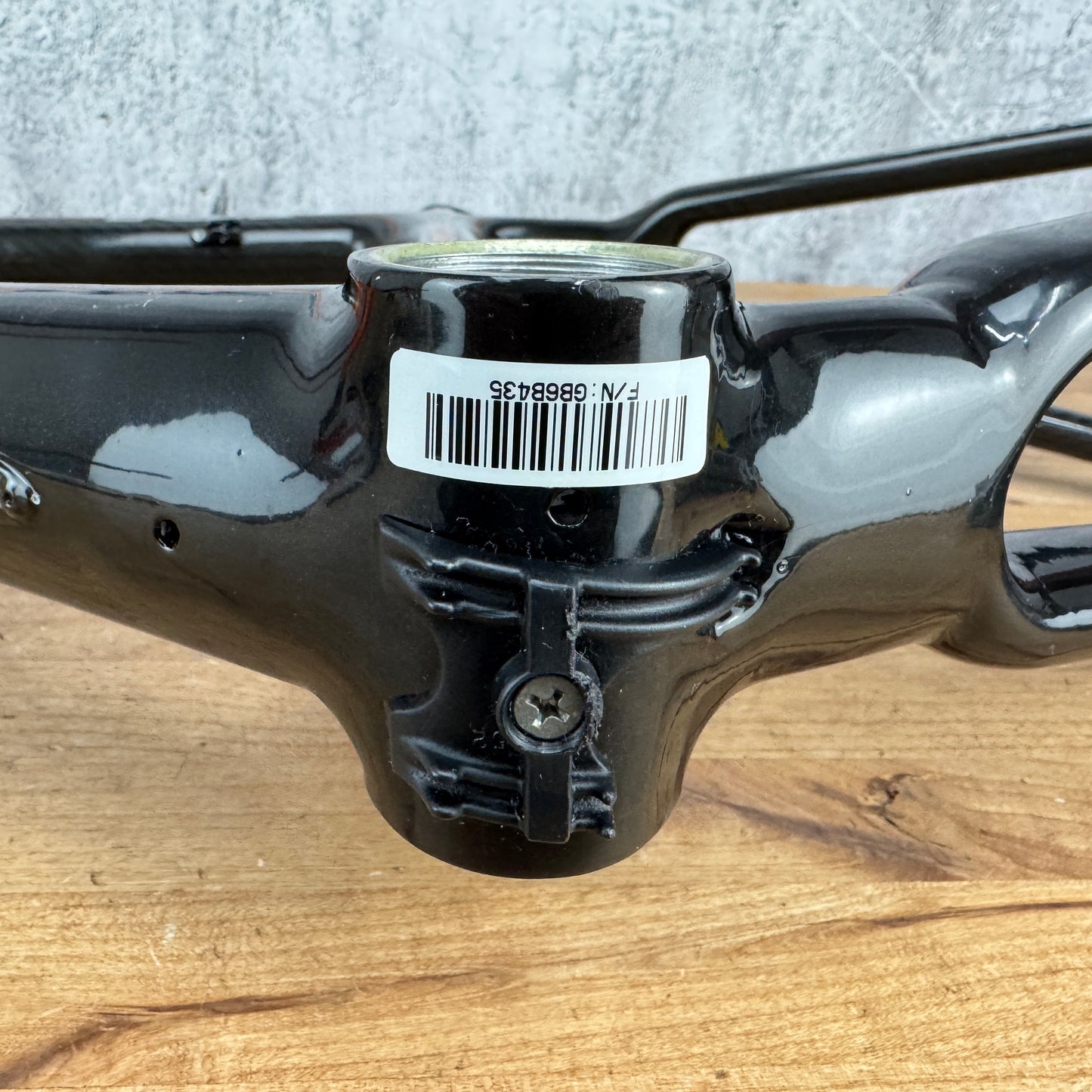

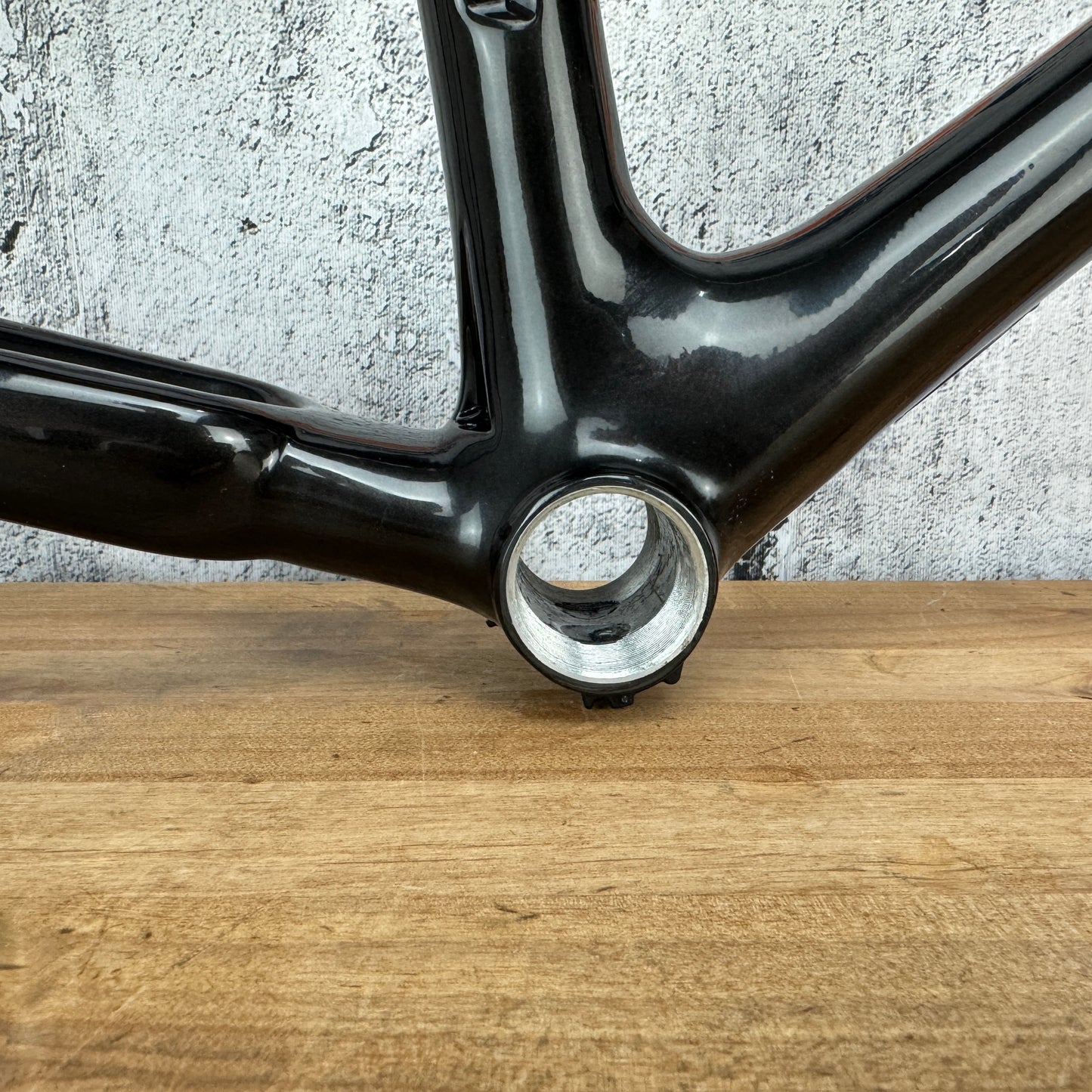

Bottom bracket: English threaded bottom bracket shell type. No bottom bracket is currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

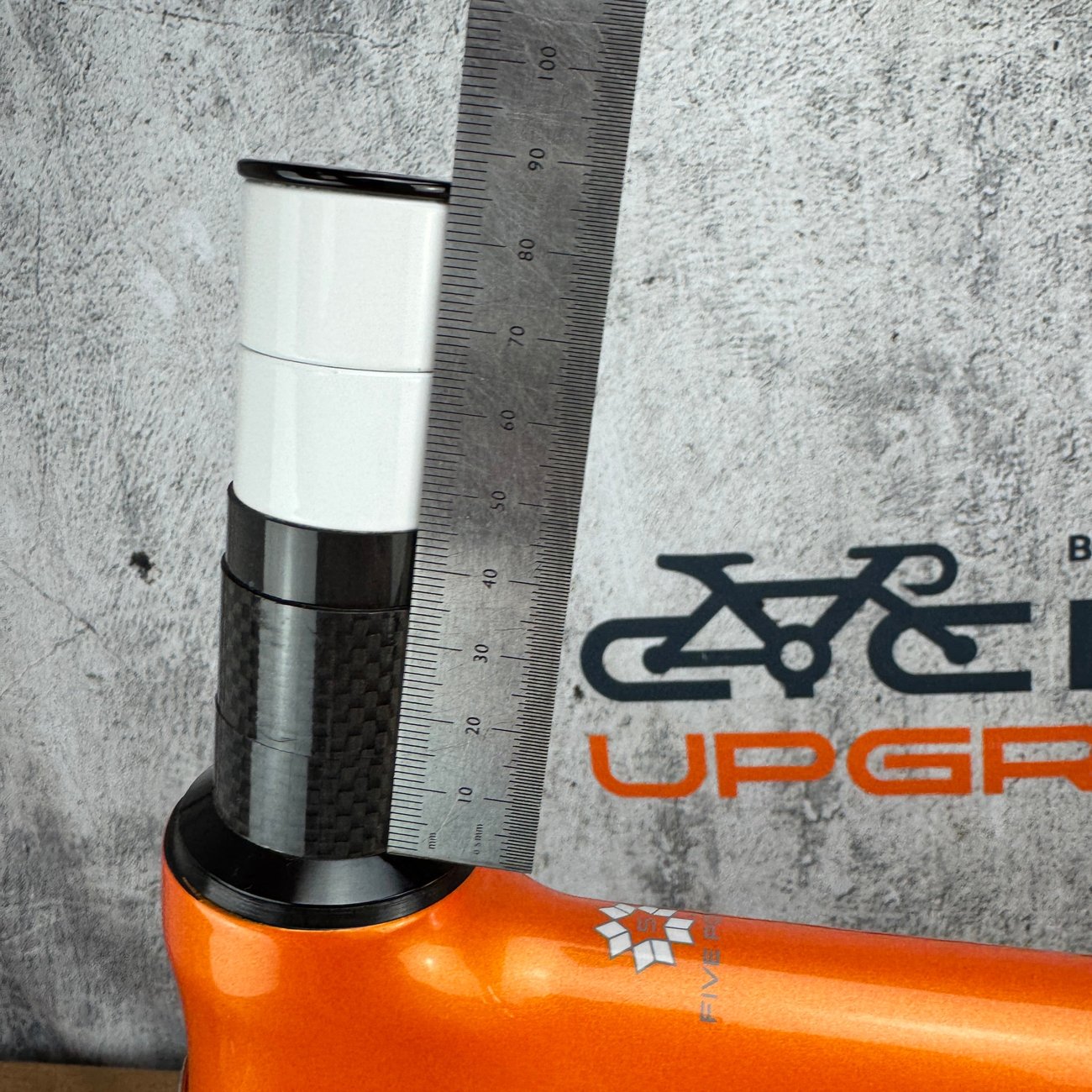

Steerer length: 90mm of steerer above the top tube. 45mm of spacers below the stem plus the headset cover.
Seatpost: 27.2mm diameter. No seatpost included.
Dropout Spacing: QR x 100mm front, QR x 130mm rear.
Weight: 1780 grams as pictured with headset, frame hardware, etc.
What's included: Frame, fork, headset, rear derailleur hanger
