Frame: Guru Evolo
Color: Carbon carbon black
Brake type: Center-Mount rim brake
Tire Clearance: 26mm
Size: Actual measurements taken by hand are approximate and are as follows: 590mm stack, 410mm reach, 800mm standover height, 590mm effective top tube. 575mm actual top tube center to center. 515mm center of bottom bracket to center of top tube. 560mm center of bottom bracket to top of seat tube. Head tube 184mm. 415mm chainstay length. If other measurements or take-offs are needed, please feel free to ask. We have included in our last picture a photo of the frame with a wheelset on it to show the head and seat tube angles and top tube slope.
Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: Some scratches on the top tube shown in pic #8, some scratches on the chainstays shown in pics #9 & 10, some scratches on the fork shown in pic #11, and some scratches on the seatstay shown in pic #12. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset compatibility: Frame can be setup for eTap or mechanical groupsets. This frame is not compatible with Di2, or EPS setups. Mechanical cable guide below the bottom bracket intact.

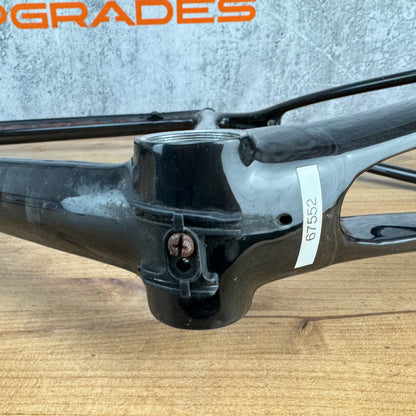

Bottom bracket: English threaded bottom bracket shell type. No bottom bracket is currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.
Steerer length: 90mm of steerer above the top tube. 45mm of spacers below the stem plus the headset cover. We do have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.
Seatpost: 27.2mm diameter. No seatpost included.
Dropout Spacing: QR x 100mm front, QR x 130mm rear.
Weight: 1727 grams as pictured with headset, frame hardware, etc.
What's included: Frame, fork, headset, rear derailleur hanger.
