Frame: 2020 Lightweight Urgestalt
Color: Black, and white
Brake type: Flat-Mount disc brake.
Size: 54cm. 545mm Effective Top Tube. Stack - 548mm. Reach - 382mm. Head tube 140mm. Recommend buyer confirm and research full geometry online.
Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: some scratches on the chainstays shown in pics #5 & 6, some scratches on the fork shown in pic #7, and some light scratches on the top tube shown in pic #8. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset compatibility: Frame can be setup for Di2, EPS, eTap, or mechanical groupsets. This frame was previously setup with a Di2 groupset. Other frame/cable stops may be needed for mechanical or wireless setups.

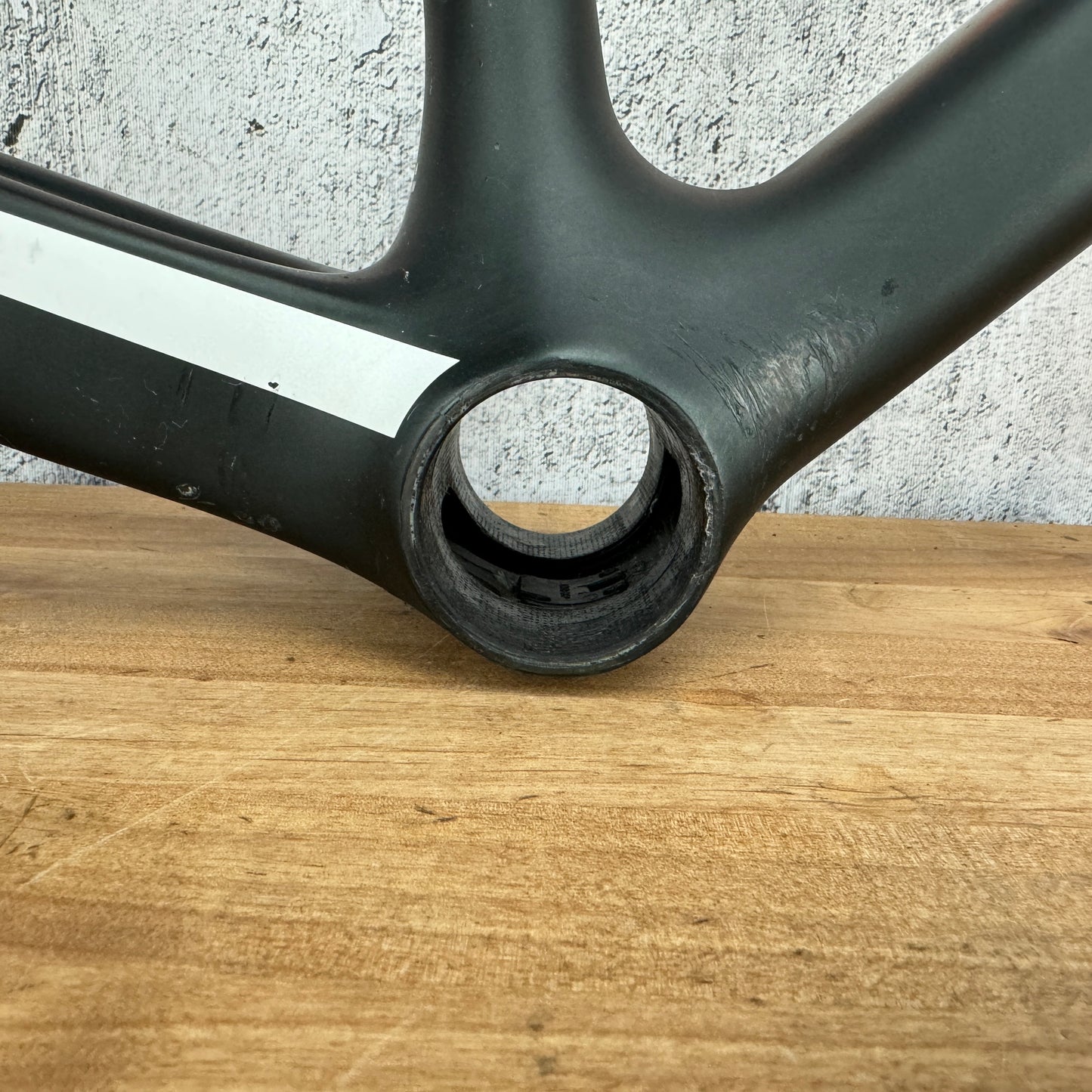

Bottom bracket: BB386EVO bottom bracket shell type (46mm shell diameter, 86mm shell width). No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.
Steerer length: 65mm of steerer above the top tube. 12mm of spacers below the stem plus the headset cover. We do have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.
Seatpost: 27.2mm diameter. No seatpost included.
Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.
Weight: 1479 grams as pictured with headset, thru axles, frame hardware, etc.

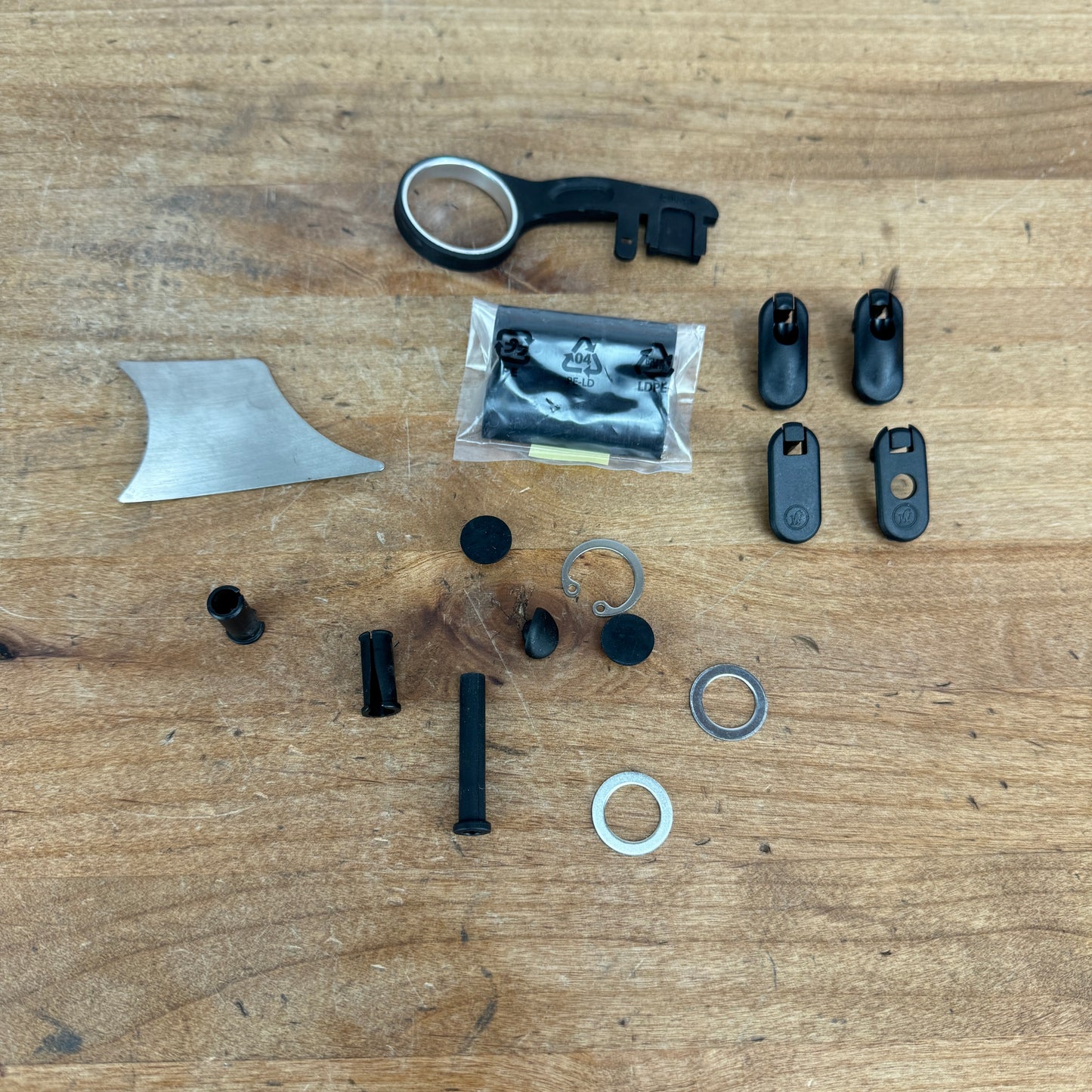

What's included: Frame, fork, headset, rear derailleur hanger, thru axles
