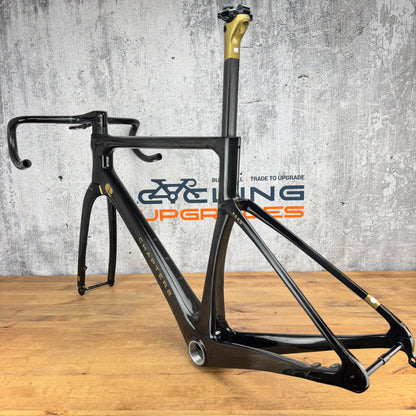

Frame: Chapter2 2024 Koko Aero
Color: Koura (Gloss Carbon w/ Gold Accents)
Brake Type: Flat-Mount disc brake
Size: Medium. 548mm Effective Top Tube. Stack - 540mm. Reach - 382mm. Head Tube 133mm. Recommend buyer confirm and research full geometry online.
Condition: This frame is in mint condition! Per prior owner claims, this frame has less than 1000 miles on it. No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: A few very light marks can be seen on the seatpost, see picture #16. Some very light marks can be seen under the bottom bracket, see picture #17. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset Compatibility: Frame can be setup for Di2, EPS, eTap, or mechanical groupsets. This frame was previously setup with an eTap groupset. Other frame/cable stops may be needed for Di2 or mechanical setups. Mechanical cable guide below the bottom bracket intact.

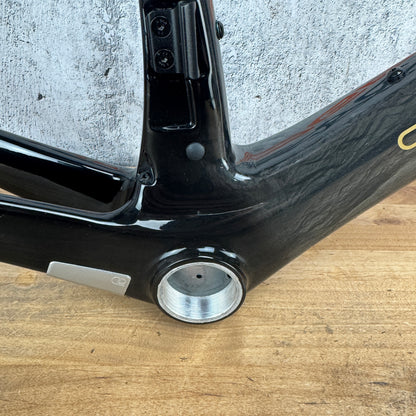

Bottom bracket: T47/86 bottom bracket shell type. No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Wheels Manufacturing, and a Ceramicspeed Authorized Dealer, if you prefer to have the frame setup with a certain Wheels Manufacturing, or Ceramicspeed bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.
Steerer Length: 55mm of steerer above the top tube. 20mm of spacers below the stem plus the headset cover. We do have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.
Tire Clearance: This frame can fit tires up to 32mm in width.
Seatpost: A Chapter2 Koko frame specific paint matched seatpost is included. The seatpost is compatible with round or oval saddle rails.
Handlebar: Chapter2 Mana 413mm x 110mm -7 Degree handlebar is included. The 413mm width is measured from center to center at the drops. Includes a K-Edge computer mount with a Wahoo insert. We can sell the frame without the handlebar for $400 less.

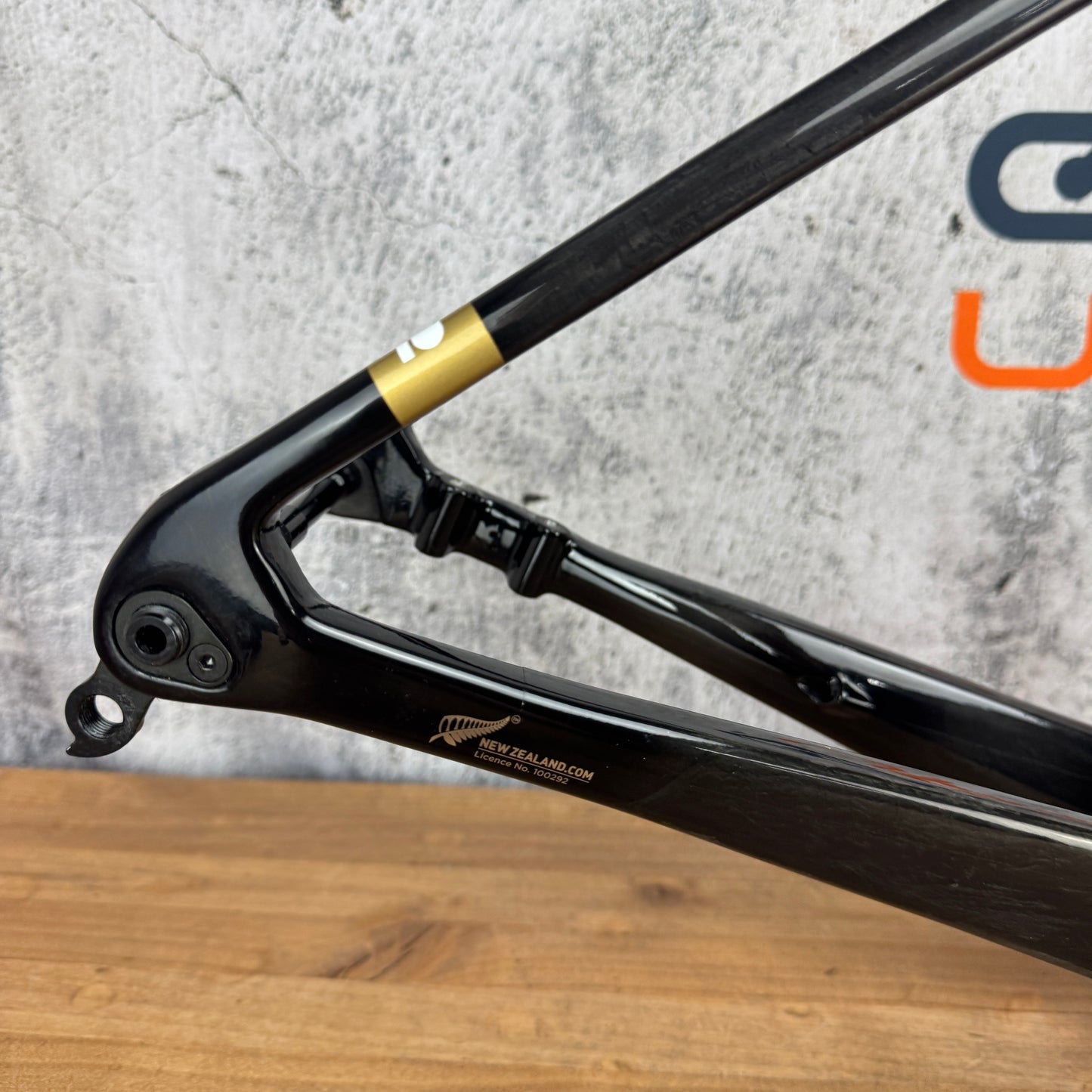

Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.
Weight: 2298 grams as pictured.
What's included: Frame, fork, headset, handlebar, seatpost, rear derailleur hanger, thru axles
