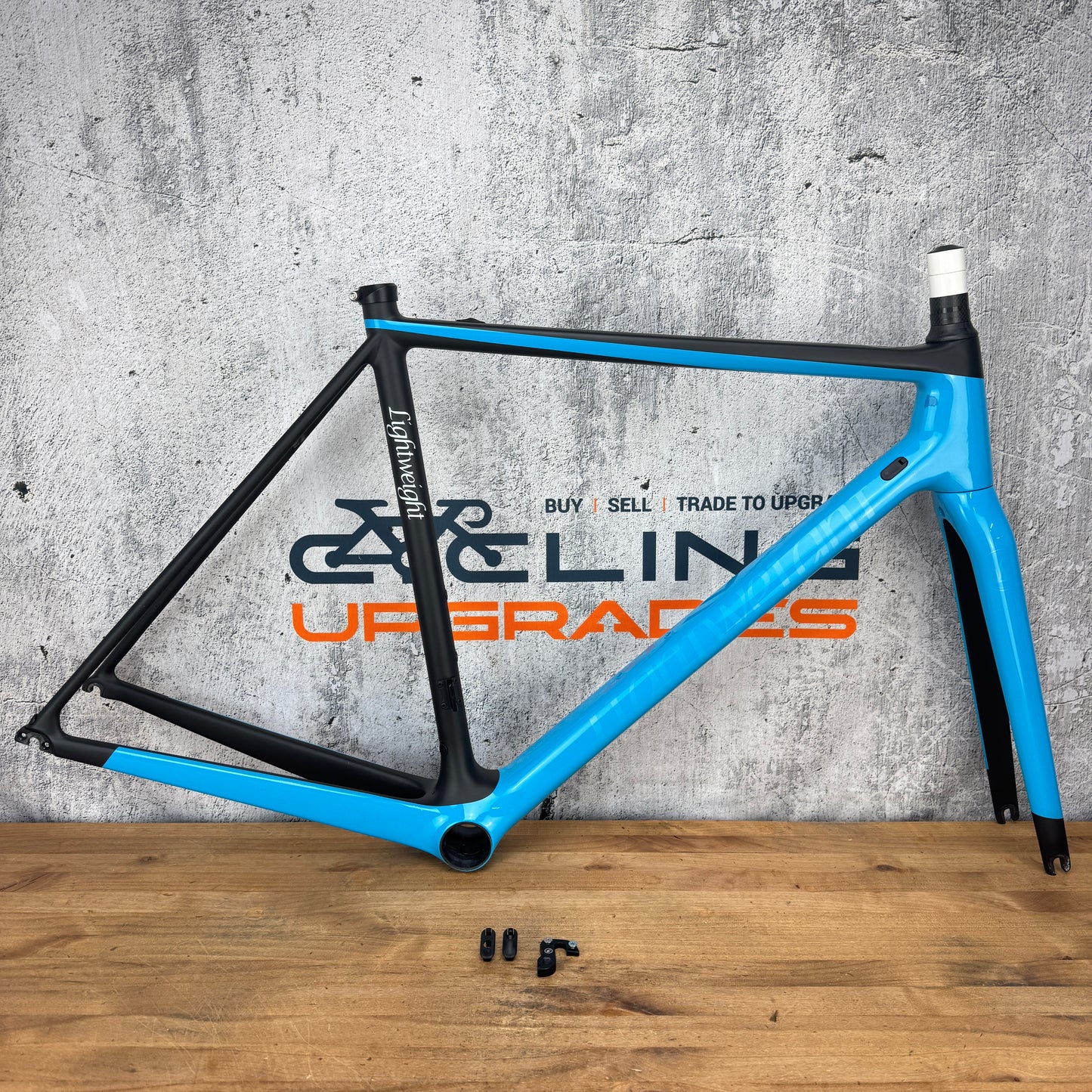

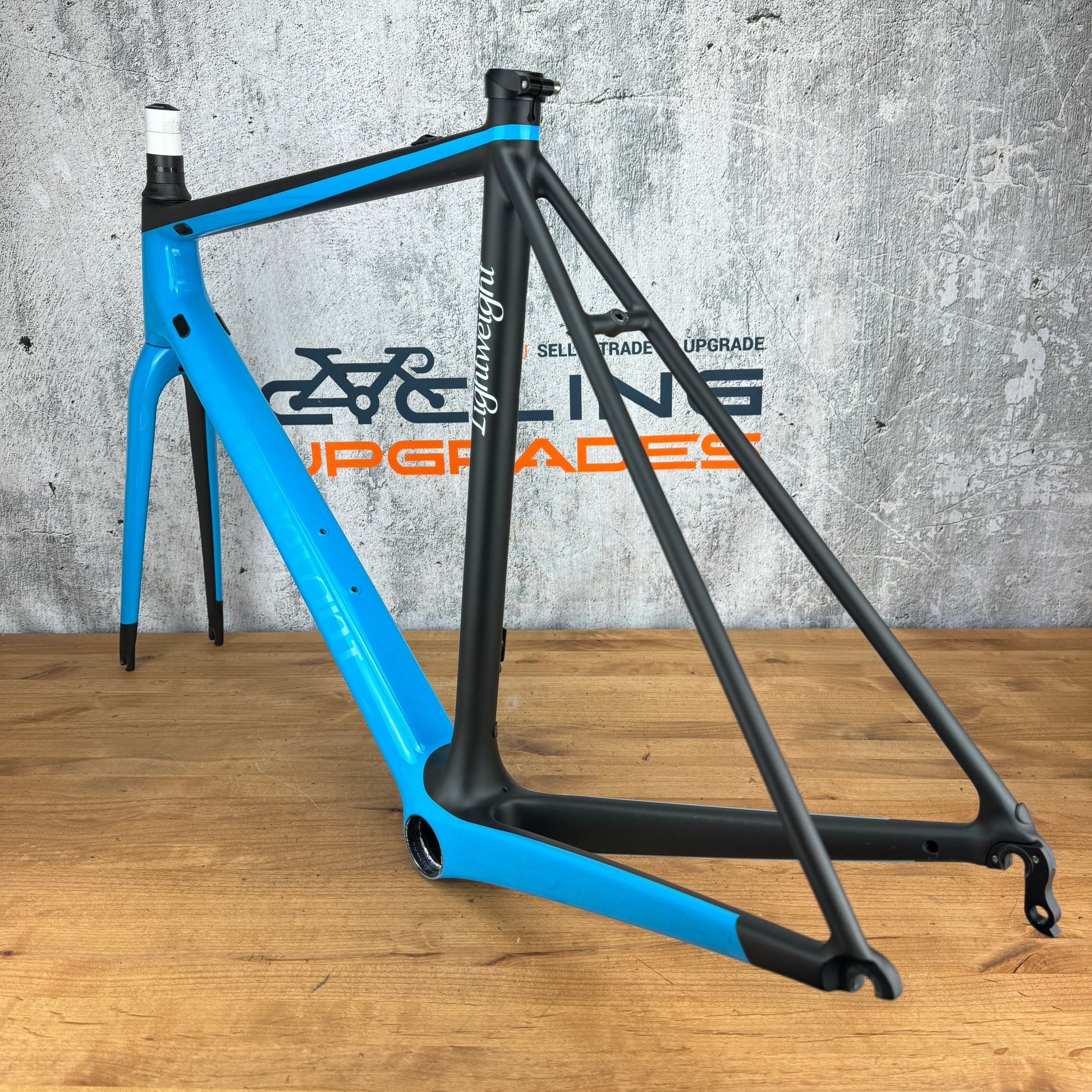

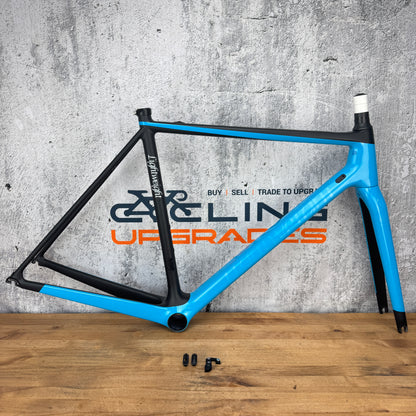

Frame: 2020 Lightweight Urgestalt
Color: Blue/Black
Brake Type: Center-Mount rim brake
Size: 54cm. 545mm Effective Top Tube. Stack - 548mm. Reach - 382mm. Head tube 140mm. Recommend buyer confirm and research full geometry online.

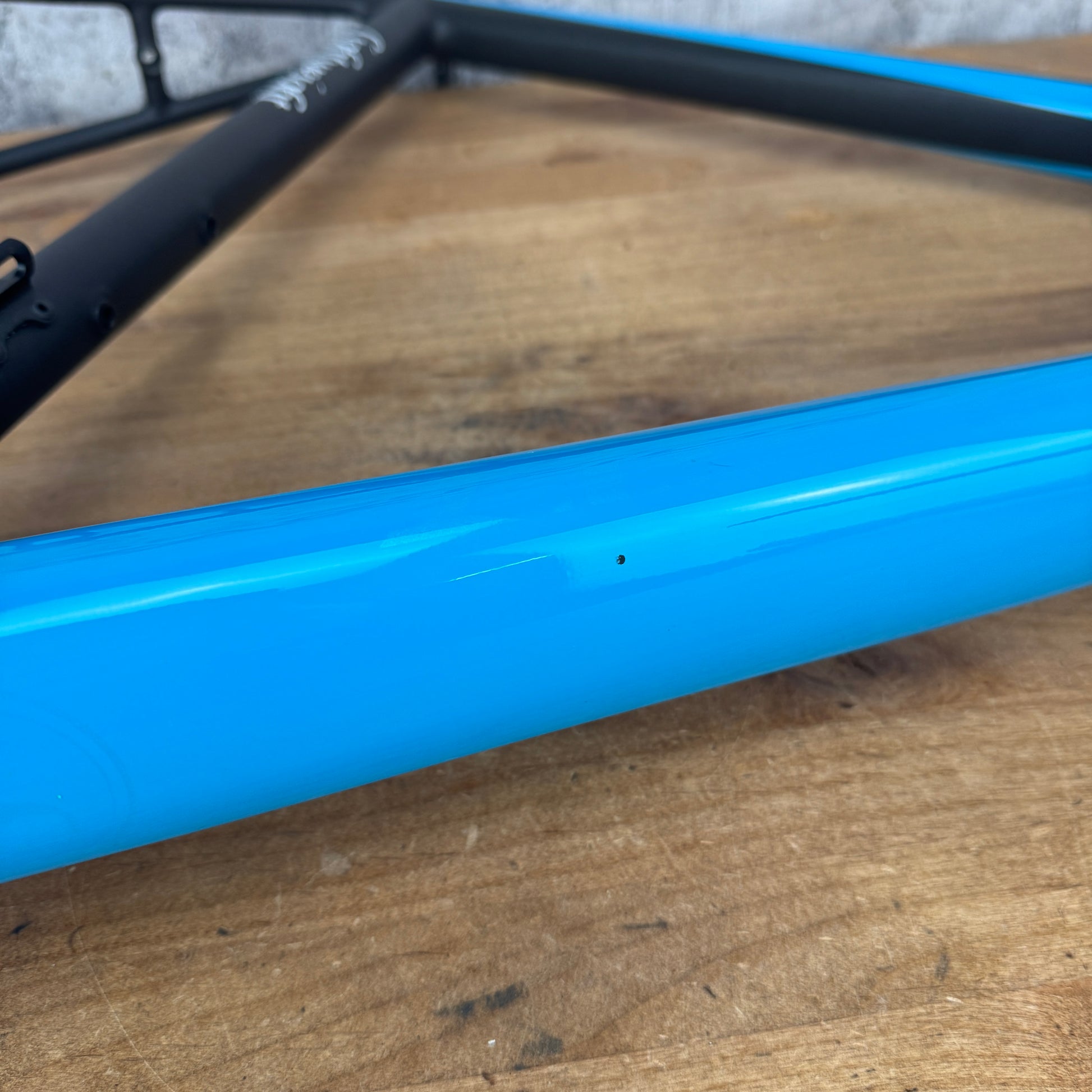

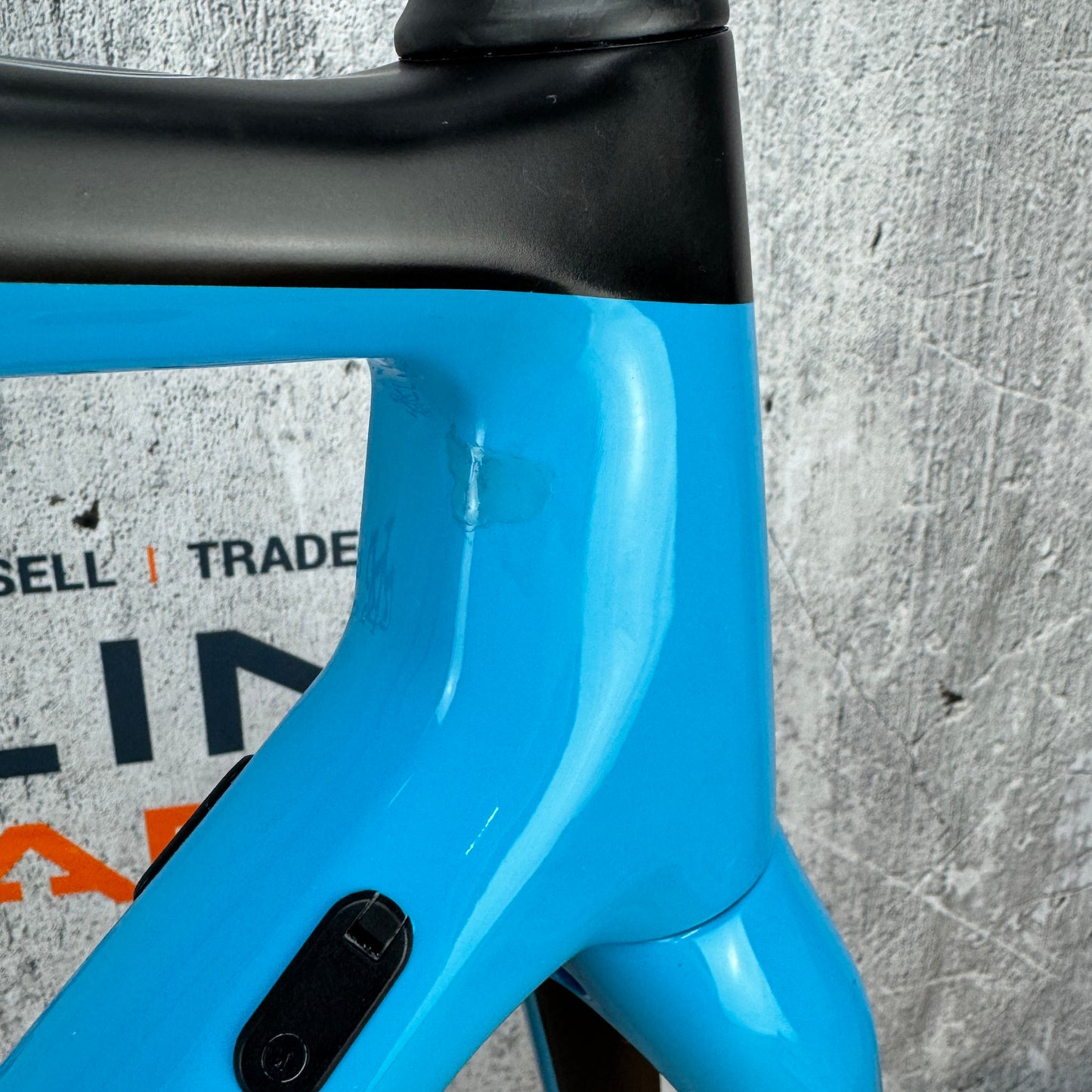

Condition: This frameset came from a floor display bike, and has less than 100 miles on it. No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: There was a Scuff on the head tub that was touched up with paint, see picture #13. There is a small chip on the bottom of the down tube, see picture #14. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset compatibility: Frame can be setup for Di2, EPS, eTap, or mechanical groupsets. This frame was previously setup with an eTap groupset. Other frame/cable stops may be needed for Di2 or mechanical setups.

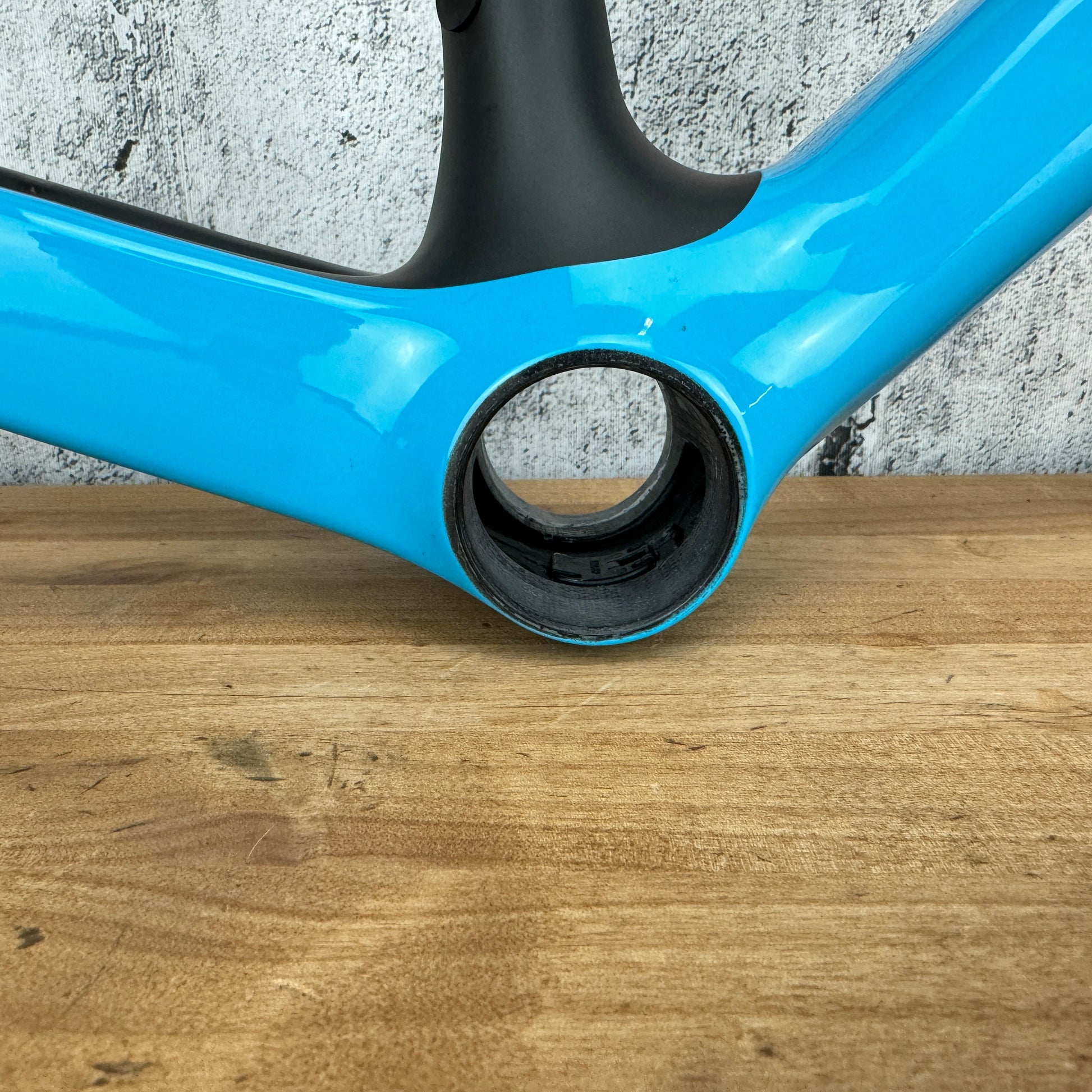

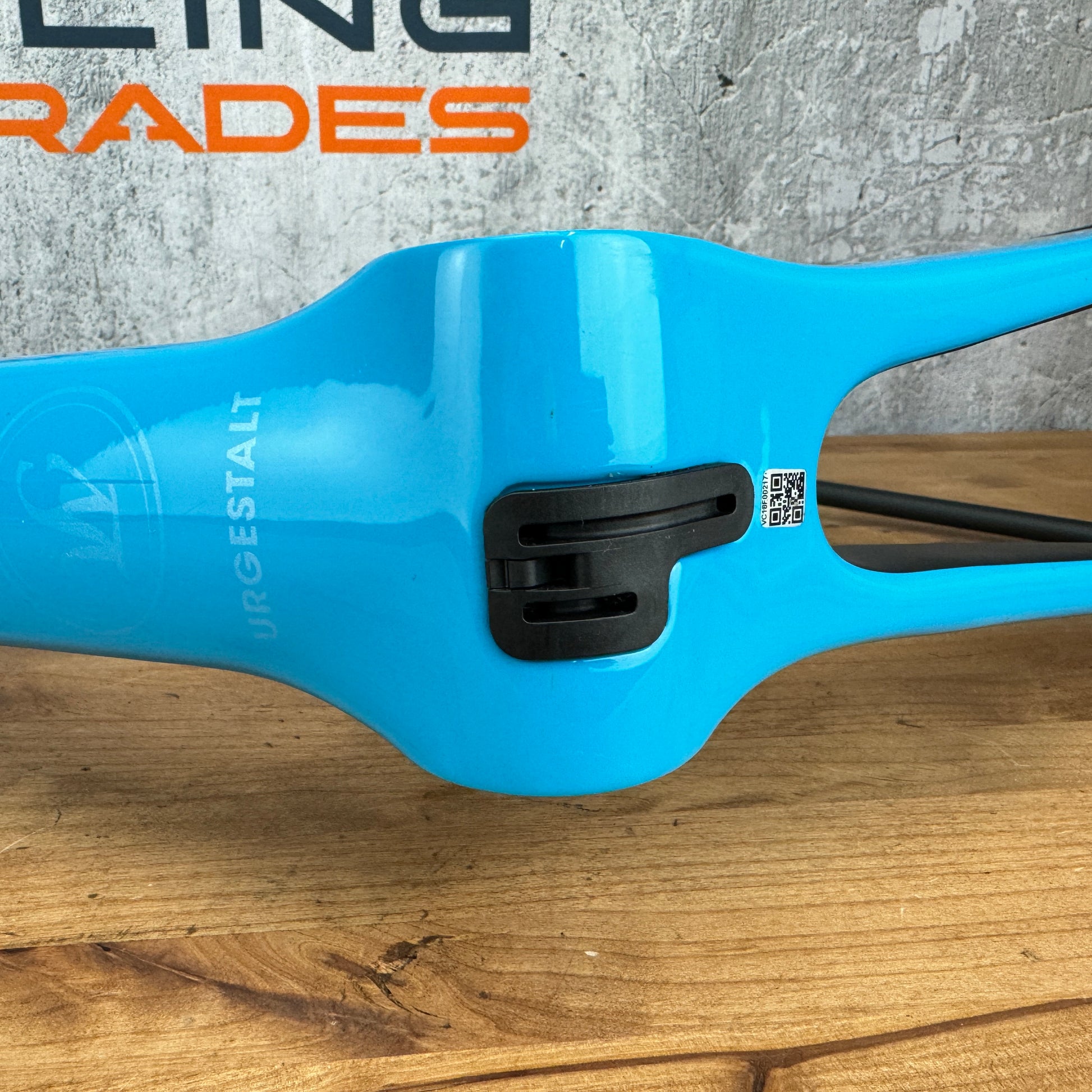

Bottom bracket: BB386EVO bottom bracket shell type (46mm shell diameter, 86mm shell width). No bottom bracket is currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Wheels Manufacturing, and a Ceramicspeed Authorized Dealer, if you prefer to have the frame setup with a certain Wheels Manufacturing, or Ceramicspeed bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

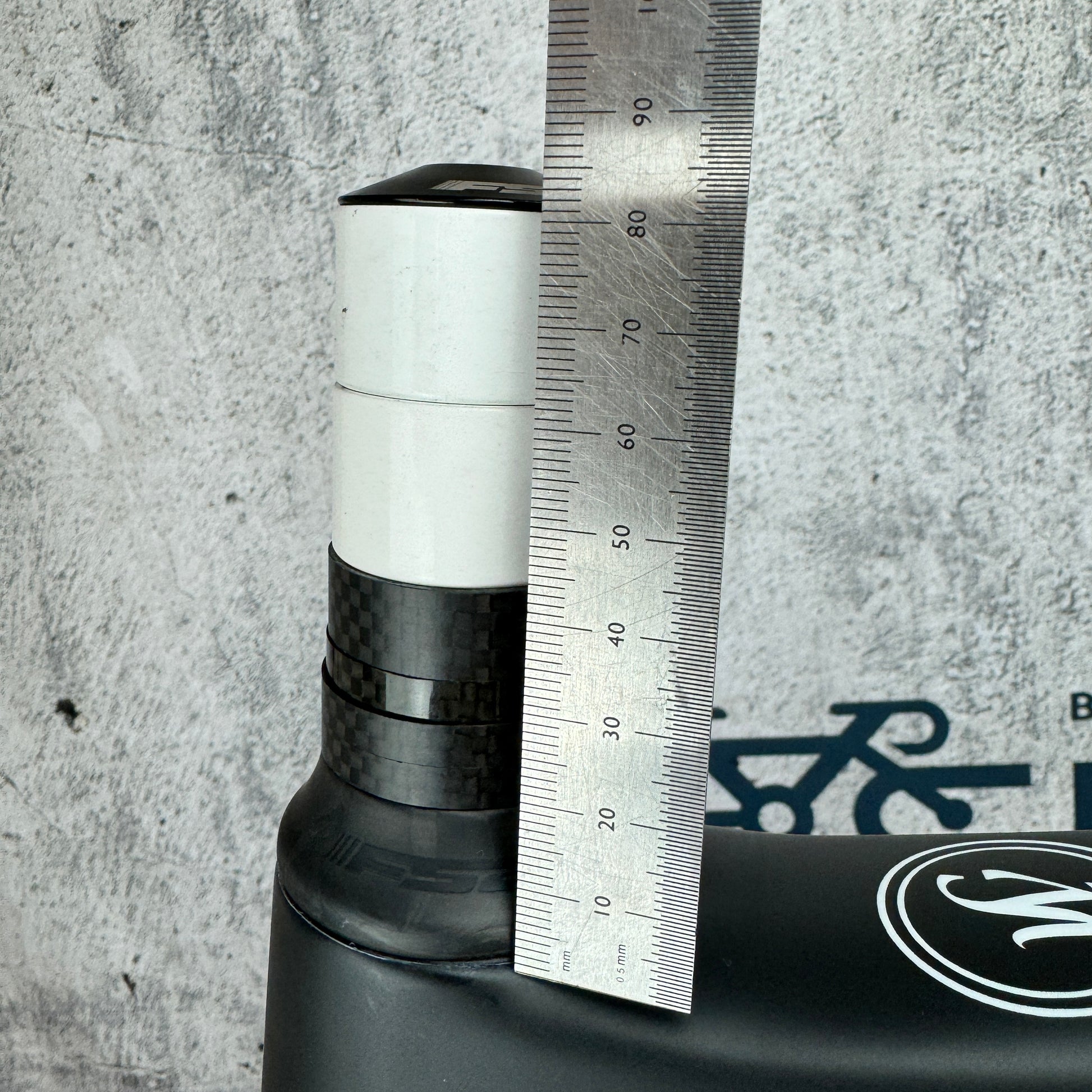

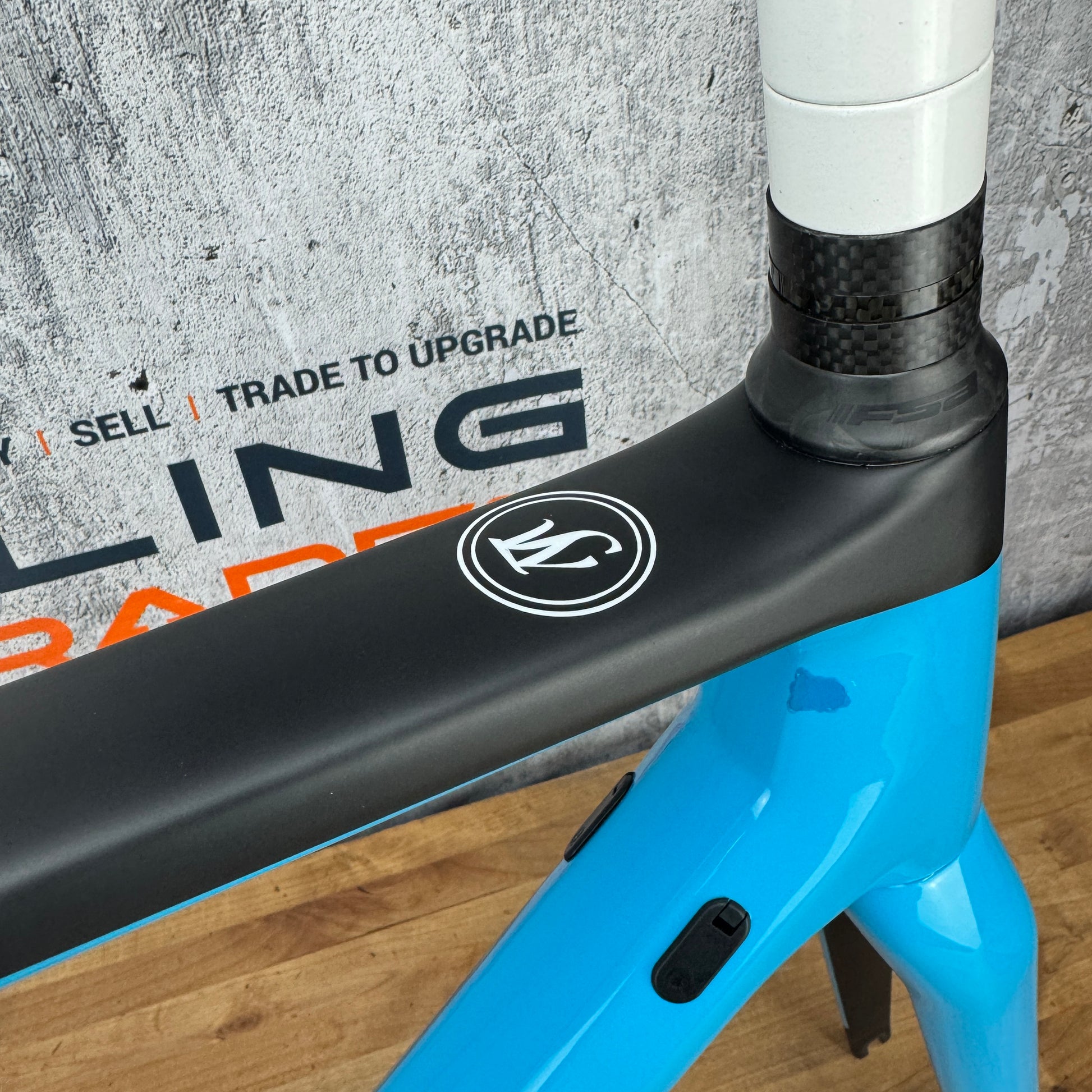

Steerer length: 80mm of steerer above the top tube. 25mm of spacers below the stem plus the headset cover. We do have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.
Seatpost: 27.2mm diameter. No seatpost included.
Dropout Spacing: QR x 100mm front, QR x 130mm rear.
Weight: 1337 grams as pictured with headset, frame hardware, etc.
What's included: Frame, fork, headset, rear derailleur hanger.
