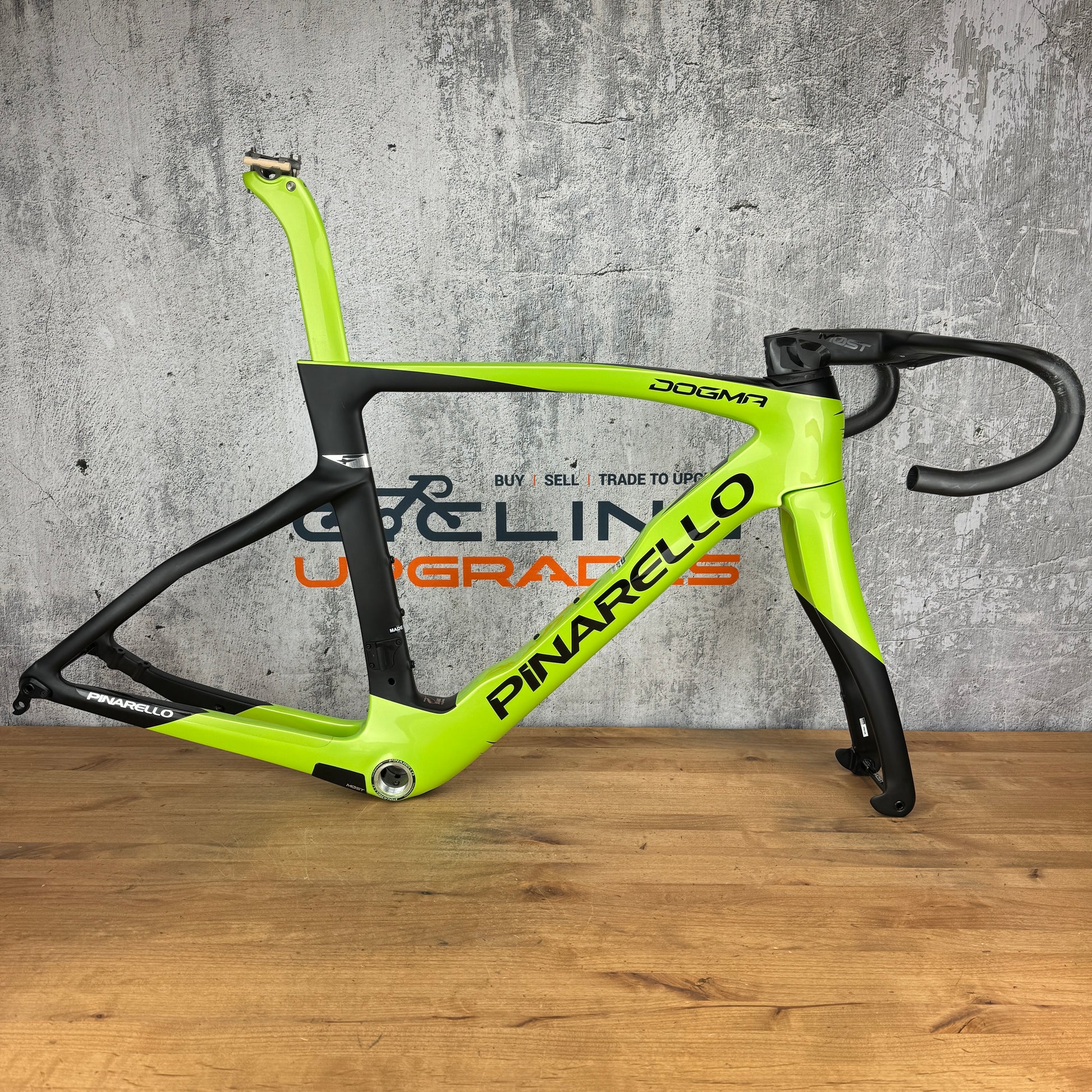

Frame: 2023 Pinarello Dogma F Disk
Color: Electro Lime
Brake type: Flat-Mount disc brake.
Size: Size 51.5. 535mm Effective Top Tube. Stack - 532mm. Reach - 378mm. Head tube 114mm. Recommend buyer confirm and research full geometry online.

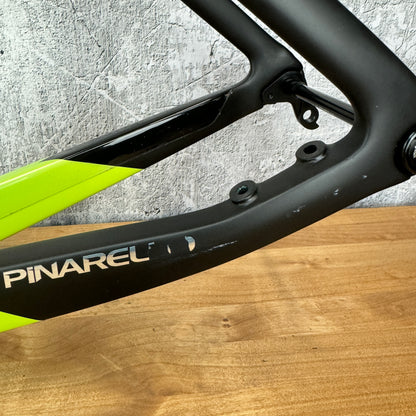

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: a scratch on the seat tube shown in pic #9, and some rub wear on the non drive side chainstay shown in pic #10. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist. Per prior owner claims, this frameset has less than 100 miles on it.
Groupset compatibility: Frame can be setup for Di2, EPS, eTap, or mechanical groupsets. This frame was previously setup with an eTap groupset. Other frame/cable stops may be needed for Di2 or mechanical setups.

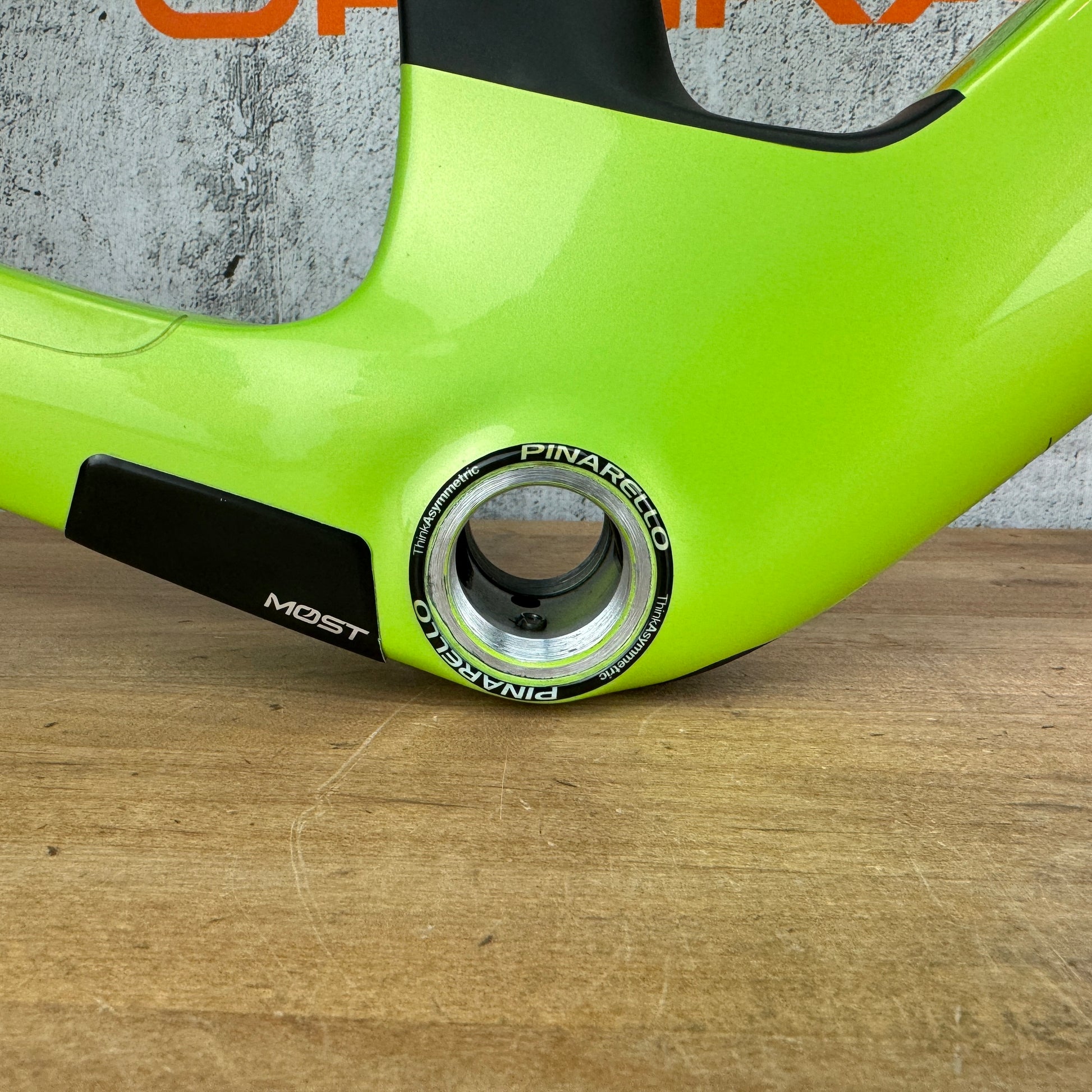

Bottom bracket: Italian threaded bottom bracket shell type. No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.
Steerer length: 55mm of steerer above the top tube. We do have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.
Handlebar: Most Ultra Talon Light carbon handlebar. 46cm width (center to center at the drops. 42cm center to center at the hoods. 120mm stem length with Mag Cad computer mount. We can sell without the bars for $500 less - message with requests before purchasing
Seatpost: Frame specific carbon seatpost included.
Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.
Weight: 2209 grams as pictured with headset, thru axles, seatpost, frame hardware, etc.
What's included: Frame, fork, headset, rear derailleur hanger, thru axles, integrated handlebar.
