Frame: Time 2010 NXR Instinct
Tire Clearance: 28mm
Brake Type: Center-Mount rim brake
Size: Medium (56cm). 560mm Effective Top Tube. Reach - 399mm. Head Tube 166mm. Recommend buyer confirm and research full geometry online.

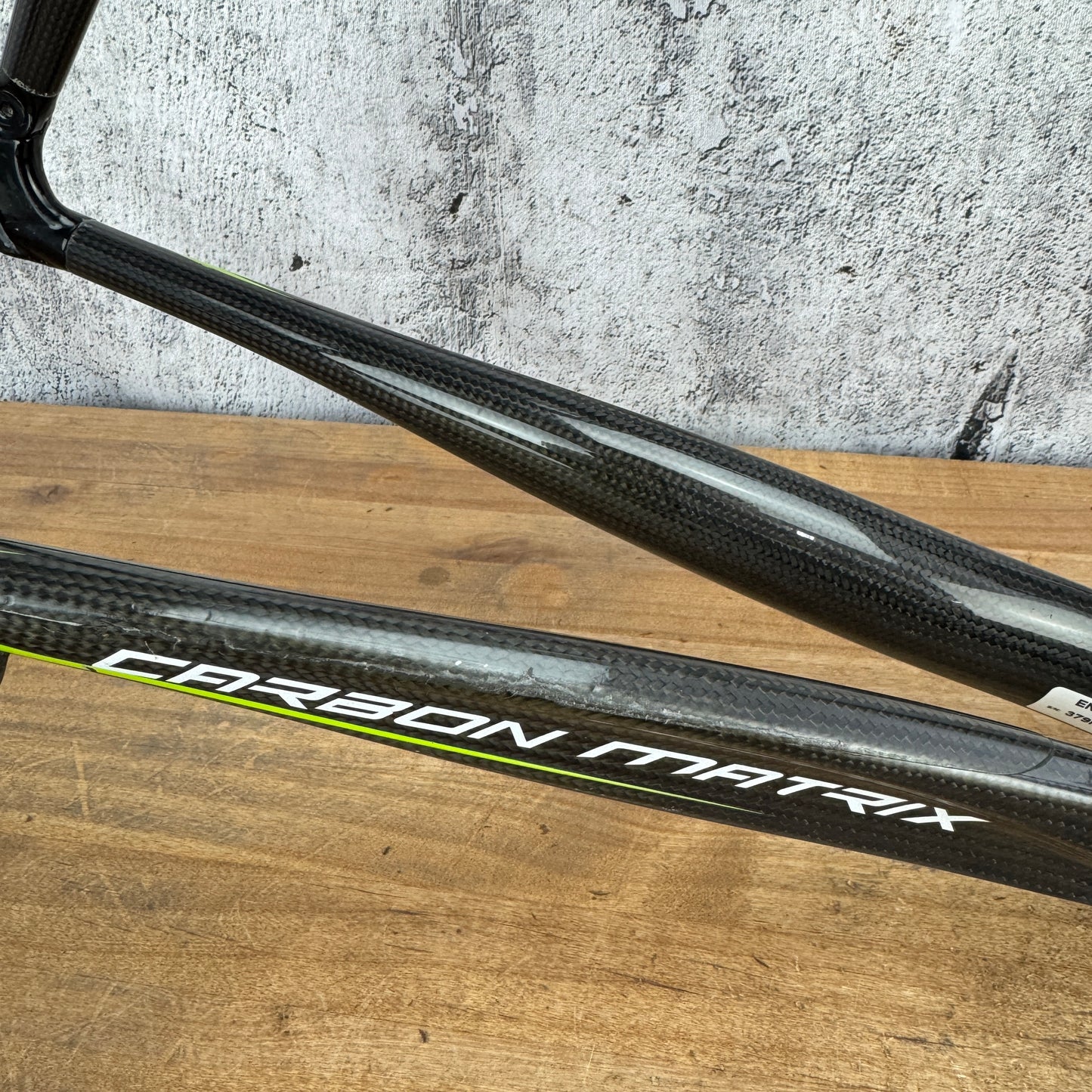

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: There are some light scuffs on the top tube and head tube, see pictures #12-13. Some road debris wear can be seen in the fork crown and in between the seat stays, see pictures #14-15. There is some light wear on the back of the seatpost, clamp, and seat tube, see pictures #16-17. Other typical scuffs and wear can be seen on the chain stays and drop outs, see pictures #18-21. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset Compatibility: Frame can be setup for eTap or mechanical groupsets. This frame is not compatible with Di2, or EPS setups. Mechanical cable guide below the bottom bracket intact.
Bottom bracket: BB30 bottom bracket shell type (46mm shell diameter, 68mm shell width). No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Wheels Manufacturing, and a Ceramicspeed Authorized Dealer, if you prefer to have the frame setup with a certain Wheels Manufacturing, or Ceramicspeed bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.
Steerer Length: 110mm of steerer above the top tube. 58mm of spacers below the stem plus the headset cover. We do have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.
Seat post: Frame specific seatmast included. Seat tube height is 680mm from center of bottom bracket. The minimum height to saddle rails is 705mm, and the maximum height to the saddle rails is 740mm. Add your saddle stack height to determine max saddle height from center of bottom bracket. There is 80mm of seatpost below the minimum insertion mark.
Dropout Spacing: QR x 100mm front, QR x 130mm rear.
Weight: 1814 grams as pictured.
What's included: Frame, fork, headset, seatpost, rear derailleur hanger
