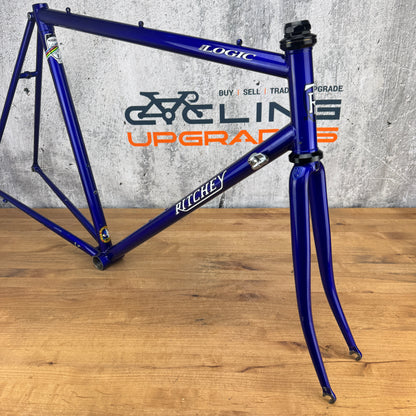

Frame: 1998 Ritchey Road Logic
Material: Steel
Headset: Origin 8 headset
Color: Blue
Tire Clearance: Clears 28mm tires
Brake type: Center-Mount rim brake
Size: Actual measurements taken by hand are approximate and are as follows: 545mm stack, 405mm reach, 805mm standover height. 560mm actual top tube center to center. 535mm center of bottom bracket to center of top tube. 560mm center of bottom bracket to top of seat tube. Head tube 130mm. 415mm chainstay length. If other measurements or take-offs are needed, please feel free to ask. We have included in our last picture a photo of the frame with a wheelset on it to show the head and seat tube angles and top tube slope.
Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: some scratches on the chainstays and seatstays shown in pics #5-8, some cable rub on the head tube shown in pic #10, and some scratches on the down tube shown in pic #11. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist. This frame has been treated with framesaver
Groupset compatibility: This frameset can be setup with eTap, or mechanical groupsets. It will need the mechanical cable guide under the bottom bracket to work with mechanical groupsets.
Bottom bracket: English threaded bottom bracket shell type. No bottom bracket is currently installed or included. Alternatively, we have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.
Steerer length: N/A. This frame uses a quill style stem
Seatpost: 27.2mm diameter. No seatpost included.
Dropout Spacing: QR x 100mm front, QR x 130mm rear.
Weight: 2379 grams as pictured with headset, frame hardware, etc.
What's included: Frame, fork, headset.
At CyclingUpgrades, we fulfill all orders next business day or sooner. Generally we are able to fulfill orders placed by 12pm MT on the same day, however it is not guaranteed. We ship all items via USPS except for frames/wheels which ship via UPS or Fedex. Please check our other listings for additional cycling upgrades and thank you for shopping our store!
